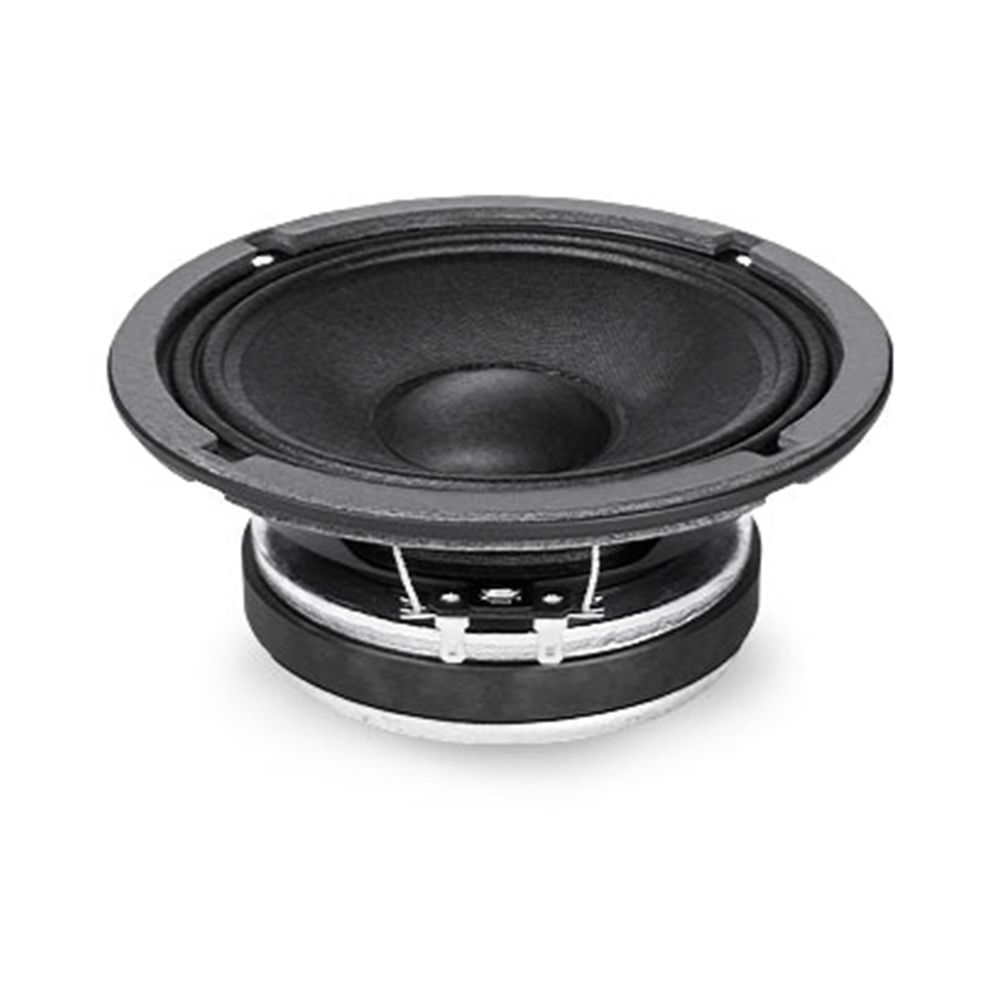

FaitalPRO 6FE200 16 Ohm (Ω), 6-Inch Professional Woofer
The FaitalPRO 6FE200 is a compact professional woofer for speaker builds that need a defined set of installation and performance figures. Its 16 Ohm impedance, 160 mm nominal diameter, ferrite ring magnet and steel basket give designers clear details to work from.
Plan the Fit with Confidence
Firstly, installation dimensions are clearly documented, including a 144 mm baffle cutout diameter, 154 mm bolt circle diameter and 77 mm depth. The 167.4 mm overall diameter and 8 mm flange and gasket thickness add further detail for checking available front-panel space before fitting the driver.
Set Up Around the Handling Figures
Moreover, with 130 W AES power handling and 260 W maximum power handling, the driver offers clearly stated figures for system design and component selection. Its 95 dB sensitivity (1W/1m) is also specified. Therefore, giving builders a straightforward reference when balancing the woofer with the rest of a speaker system.
Built for a Defined Working Range
The 37 mm voice coil uses an Al winding and Kapton former, while the M-Roll cone surround and 1x constant height waves spider profile complete the listed construction. The specified frequency range is 85–6000 Hz, with a 120 Hz Fs for enclosure modelling and design work.
Key Features
- Compact 160 mm (6 in) nominal format for speaker projects with limited front-panel space
- 16 Ohm nominal impedance with 13.6 Ohm minimum impedance
- Ferrite ring magnet and steel basket construction
- 130 W AES and 260 W maximum power handling
