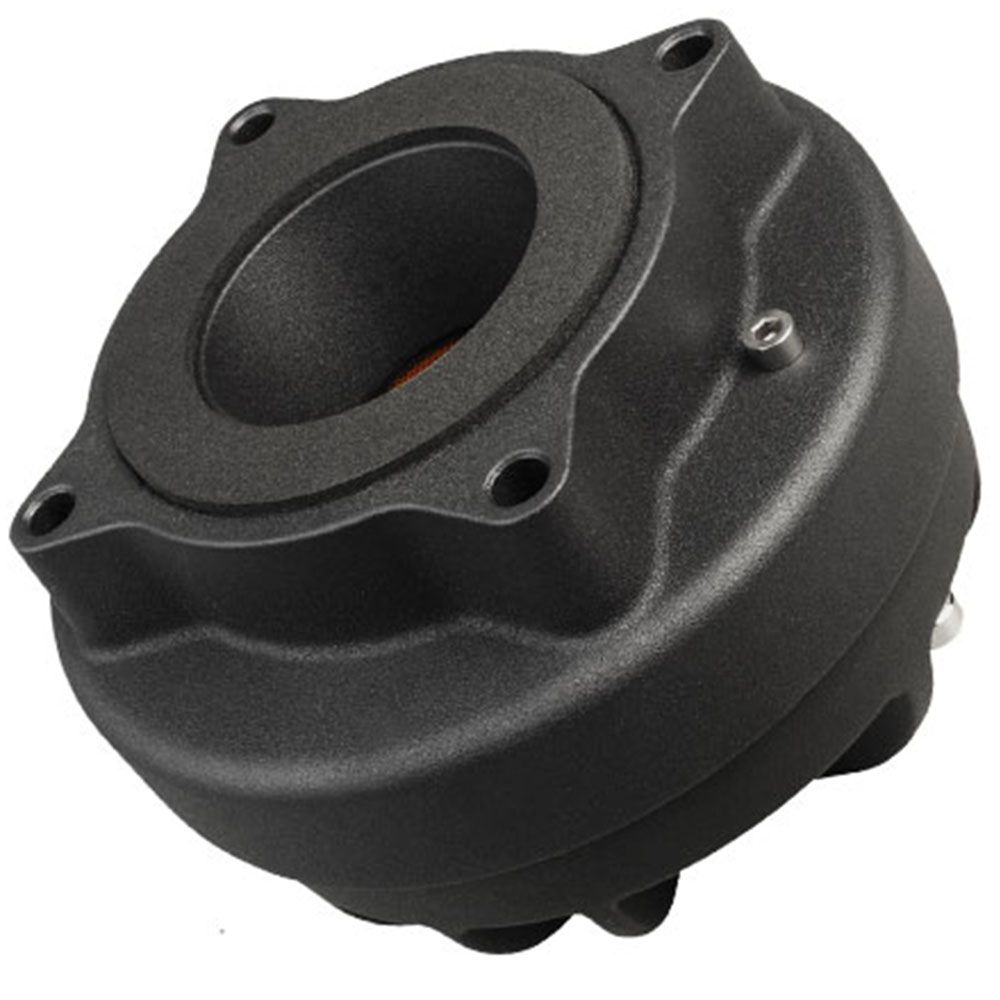

Faital Pro HF206 16 Ohm, 2-Inch Compression Driver
The Faital Pro HF206 (16 Ohm) is a high-sensitivity compression driver for speaker designs that need substantial high-frequency output. Especially, in a compact format. Dome diaphragm, annular phase plug and neodymium slug crown magnet, all combined with a 0.9 kHz minimum crossover frequency for perfection.
Strong Output From Modest Power
With 109 dB sensitivity and 80 W AES power above 0.9 kHz, the HF206 is suited to high-frequency sections where efficient output matters. Its 160 W maximum power rating above the same point adds headroom for demanding operation. Meanwhile, the 16 Ohm nominal impedance defines its electrical loading.
Designed for Clear High Frequencies
Moreover, the Ketone Polymer dome diaphragm works with the annular phase plug across a specified frequency range of 0.5÷18 kHz. The 65 mm voice coil uses an Al winding on a Kapton former. Consequently, giving speaker builders clearly defined construction details when matching the driver to a larger system.
Compact Geometry for Speaker Builds
A 50.8 mm throat, 130.5 mm overall diameter and 91.5 mm depth make the HF206 a practical choice when the available cabinet space needs careful consideration. The 90° mounting pattern uses four M6 holes, while the specified 0.75 dm^3 net air volume identifies the space occupied by the driver.
Lightweight Neodymium Construction
The neodymium slug crown magnet and 1.7 T flux density give this compression driver a clearly specified magnetic design without adding unnecessary bulk. At 2.3 kg net weight, it remains manageable for speaker builders working with custom enclosures or replacement high-frequency sections.
Key Features
- High 109 dB sensitivity for efficient high-frequency output.
- 80 W AES power above 0.9 kHz for demanding speaker designs.
- Ketone Polymer dome diaphragm with annular phase plug.
- Neodymium slug crown magnet in a 2.3 kg driver.
