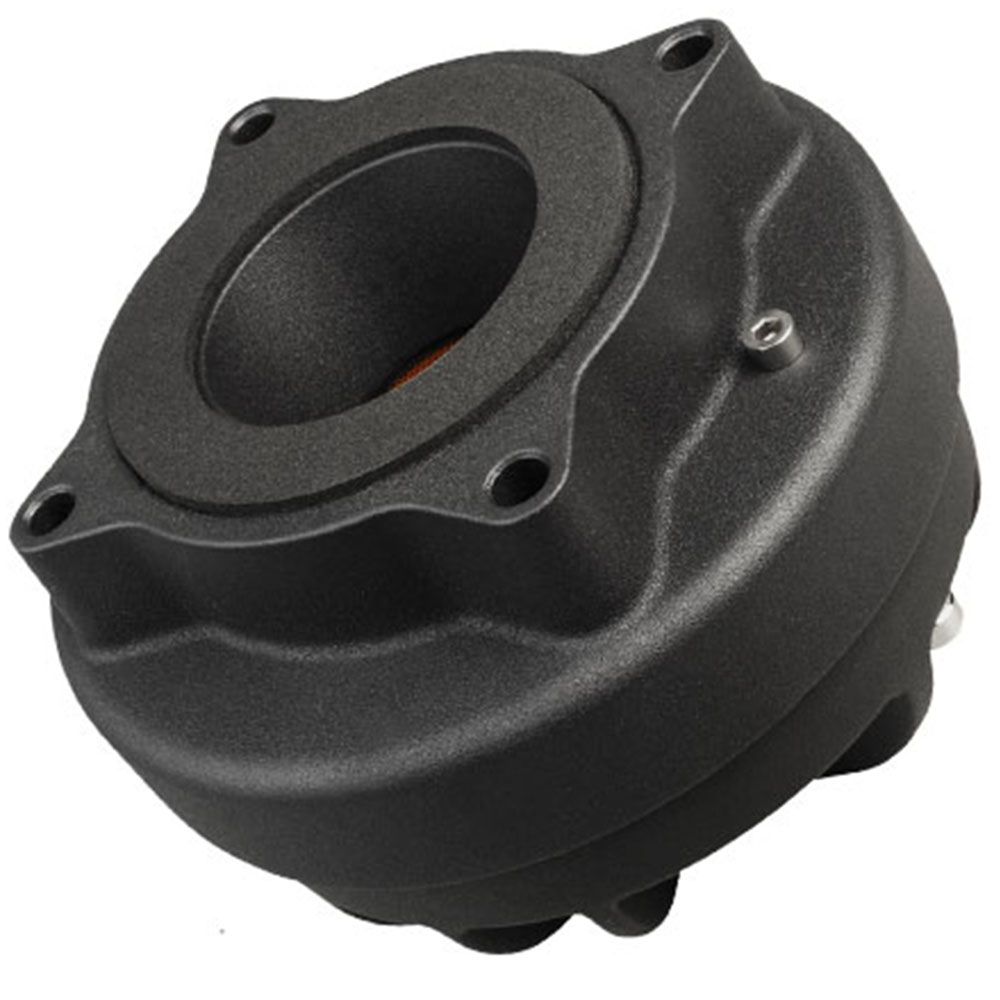

Faital Pro HF204 16 Ohm, 2-inch Compression Driver
The Faital Pro HF204 (16 Ohm) is a high-sensitivity compression driver built around an 80 W AES rating above 0.9 kHz. Also, in a compact 2-inch throat format. Its Ketone Polymer dome diaphragm, Annular phase plug design and Neodymium Slug Crown magnet create a focused, purpose-built component. Specifically, for high-frequency speaker systems.
High-Sensitivity Output
With a supplied sensitivity specification of 109 dB (1W/1m), the HF204 is designed to produce strong output from its rated input reference. Its frequency range extends from 0.7÷18 kHz. Therefore, giving the compression driver broad high-frequency coverage for systems that use a dedicated HF section.
Power Ratings for System Planning
Moreover, the driver carries an AES power rating of 80 W above 0.9 kHz, alongside 40 W above 0.65 kHz. Maximum power is listed as 160 W and 80 W at those respective points. The minimum crossover frequency is 0.9 kHz. These figures give clear reference points when matching the driver to a system.
Purpose-Built Construction
Furthermore, a Ketone Polymer dome diaphragm works with an Annular phase plug design, an Al winding and Kapton former. The magnetic assembly uses a Neodymium Slug Crown magnet with 1.7 T flux density. Together, these named components define the driver’s compact compression-driver construction without adding unnecessary bulk to the design.
Compact Mounting Format
The 50.8 mm (2 in) throat sits in a body measuring 130.5 mm (5.14 in) across and 91.5 mm (3.60 in) deep. Four M6 mounting holes follow a 90° pattern with a stated 102 mm (4.02 in) diameter. At 2.3 kg (5.1 lb), it remains a manageable component for enclosure work.
Key Features
- 16 Ohm nominal impedance for matching with the intended system configuration
- 80 W AES power above 0.9 kHz with 160 W maximum power above 0.9 kHz
- 109 dB sensitivity specification and 0.7÷18 kHz frequency range
- Ketone Polymer dome diaphragm and Annular phase plug design
- Neodymium Slug Crown magnet in a compact 2.3 kg body
