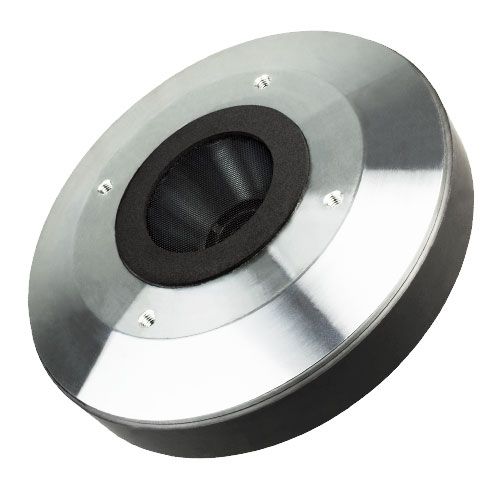

Faital Pro HF201 16 Ohm High-Frequency Driver
The Faital Pro HF201 (16 Ohm) is a professional high-frequency driver for sound reinforcement designs. Specifically, ones that need strong output across a wide upper-frequency range. Its 108 dB sensitivity, titanium dome diaphragm and 16 Ohm nominal impedance give system builders a clear starting point.
High Output for Sound Reinforcement
With 108 dB sensitivity measured at 1W/1m, the HF201 is designed to produce substantial acoustic output from modest input power. That makes it a practical choice for high-performance audio applications where the high-frequency section needs to keep pace with the rest of the system.
Detailed High-Frequency Coverage
The titanium diaphragm uses a dome shape and covers a 0.5 to 18 kHz frequency range. Together, these features give designers broad high-frequency coverage for sound reinforcement systems, while the annular phase plug design and 36° conical exit angle define the driver’s specified acoustic format.
Built for System Design
A 74 mm voice coil, ferrite ring magnet and 1.7 T flux density form the core of the driver’s construction. The 50.8 mm throat diameter and 0.9 kHz minimum crossover frequency provide important reference points when planning the surrounding horn and crossover arrangement.
Practical Installation Details
The HF201 has a 170 mm overall diameter, 66 mm depth and 4.6 kg net weight. Its 102 mm mounting-hole diameter for 90° mounting gives installers clear dimensional information when preparing a compatible enclosure or assembly.
Key Features
- High 108 dB sensitivity for strong acoustic output
- Titanium dome diaphragm for high-frequency sound reinforcement
- Wide 0.5 to 18 kHz frequency range
- 16 Ohm nominal impedance for system matching
- 200 W maximum power above 0.9 kHz
