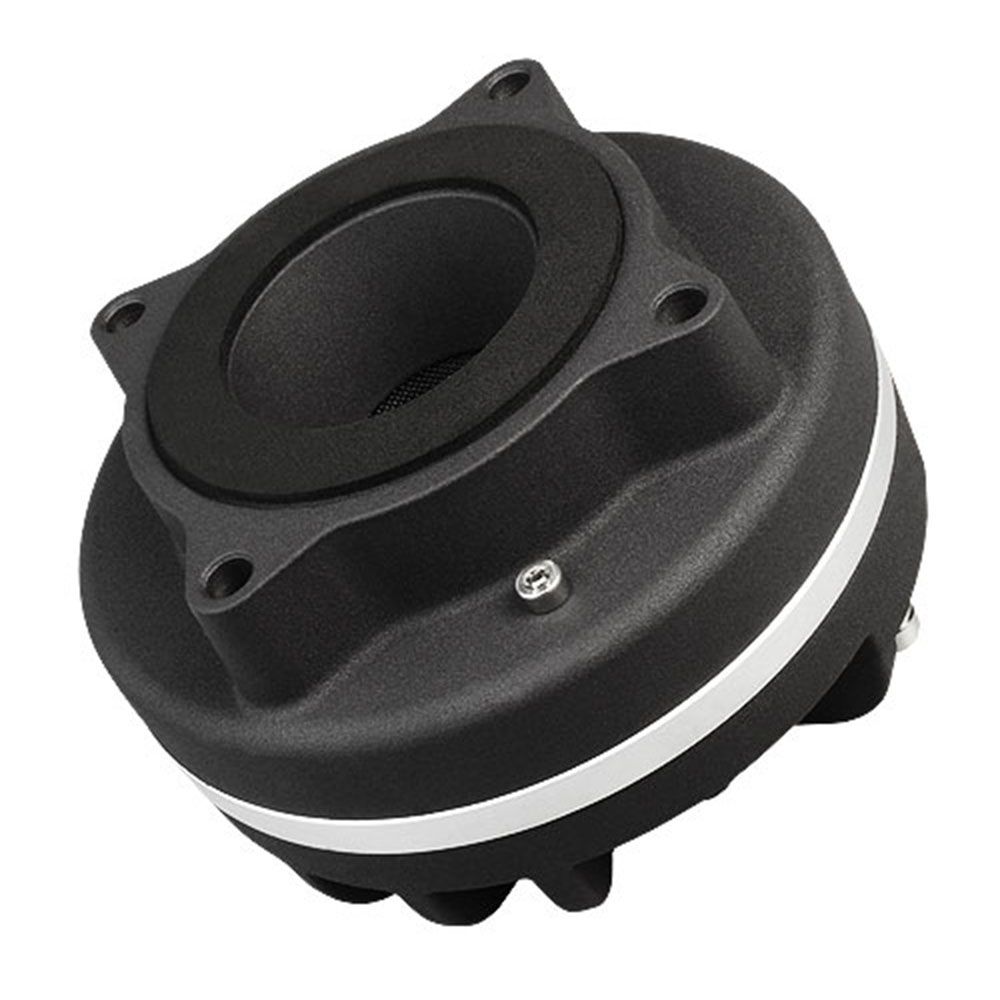

Faital Pro HF2000 8 Ohm (Ω), 2-Inch Compression Driver
The HF2000 (8Ω) combines strong output capability with a titanium dome diaphragm and a 50.8 mm throat. Its 110 dB sensitivity and broad 0.5÷18 kHz frequency range make it a focused choice for speaker builders.
Clear High-Frequency Output
Firstly, the titanium dome diaphragm and annular phase plug design form the heart of the driver. Meanwhile, 110 dB sensitivity makes efficient use of amplifier power. For loudspeaker builders, that combination offers a practical way to develop a high-frequency section. Especially one with plenty of acoustic output and a defined operating range.
Power for Crossover-Based Designs
Moreover, with a 100 W AES rating above 0.9 kHz and 200 W maximum power above the same point, the driver is suited to designs built around its stated operating limits.
Compact Magnetic Assembly
A neodymium ring magnet and 1.95 T flux density sit within a driver measuring 130.5 mm in diameter and 83.5 mm deep. That compact form can make physical planning more straightforward, while the 2.75 kg net weight keeps the assembly manageable during cabinet construction and installation.
Defined Mounting and Coverage Details
The 50.8 mm throat, 30° conical exit angle and 102 mm mounting-hole diameter provide important reference points for matching the driver to a compatible horn and cabinet layout. Four M6 mounting holes support a clear, repeatable approach to positioning the high-frequency assembly.
Key Features
- High 110 dB sensitivity for efficient high-frequency output
- Titanium dome diaphragm for the HF section
- 100 W AES power above 0.9 kHz
- Neodymium ring magnet in a compact driver assembly
- 50.8 mm throat with 30° conical exit angle
