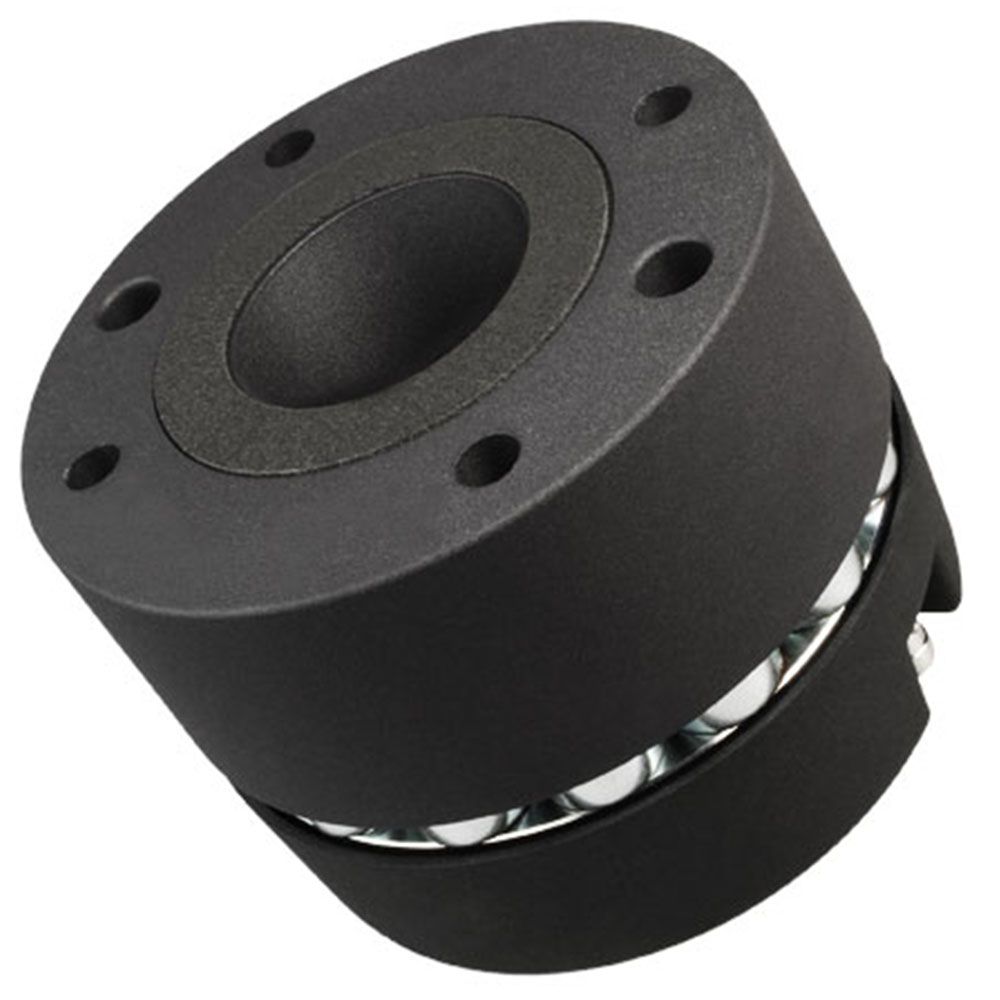

Faital Pro HF200 16 Ohm 2-Inch Compression Driver
The Faital Pro HF200 combines a titanium dome diaphragm, an annular phase plug and high sensitivity in a compact compression driver. Its power ratings and broad frequency range help speaker builders plan and tune their high-frequency systems.
High Sensitivity for Efficient Output
With a sensitivity rating of 109 dB at 1 W/1 m, the HF200 delivers efficient high-frequency output. Its titanium diaphragm and dome design shape its acoustic performance. Meanwhile, the 0.5–18 kHz frequency range covers a broad part of the upper spectrum, making it suitable for speaker designs that need detailed high-frequency reproduction.
Power Handling with Crossover Guidance
Moreover, the HF200 is rated for 70 W AES power above 0.9 kHz, with a 140 W maximum rating in the same band. Its minimum crossover frequency is 0.9 kHz. Consequently, giving speaker builders a clear reference when planning the high-frequency section and selecting an appropriate crossover point.
16-Ohm Driver Format
Furthermore, nominal impedance is 16 Ohm, with a 9.4 Ohm minimum impedance and 8.2 Ohm Re value. That information gives designers the electrical figures needed to assess the driver within their intended speaker system. The 74 mm voice coil adds a clearly defined part of the supplied construction details.
Mounting and Dimensions
Additionally, the 50.8 mm throat diameter suits a two-inch compression-driver format. Also, the 130.5 mm overall diameter and 95 mm depth make the physical envelope easy to review during cabinet planning. Four M6 mounting holes are arranged on a 102 mm diameter, and net weight is 3.2 kg.
Key Features
- Efficient high-frequency reproduction from 109 dB sensitivity
- Titanium dome diaphragm with annular phase plug design
- Clear power-handling and crossover figures for speaker design work
- Compact two-inch throat format with defined mounting dimensions
