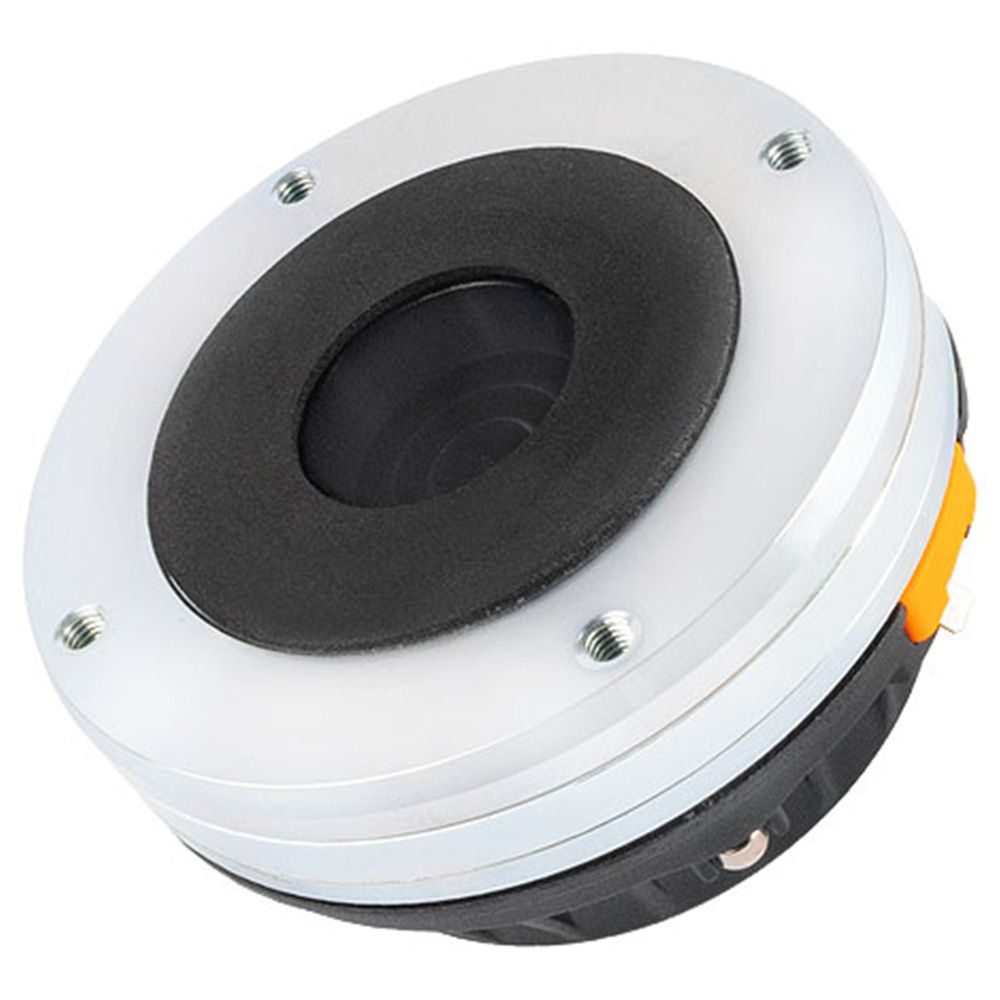

Faital Pro HF148C 8 Ohm High-Frequency Compression Driver
The HF148C combines a titanium diaphragm, high sensitivity and a broad 0.6 to 18 kHz operating range. Its 8 Ohm design and 100 W AES power handling above 0.9 kHz give system builders a focused driver.
Clear, Efficient High Frequencies
Firstly, with 110 dB sensitivity (1W/1m), the HF148C is designed to produce a strong high-frequency output from the available input power. That makes it a practical choice when building or servicing professional loudspeaker systems where clear, present upper frequencies are important.
Titanium Diaphragm Construction
Moreover, the titanium diaphragm uses a dome shape for the driver’s high-frequency operation. Meanwhile, the 74 mm voice coil provides the working foundation for the assembly. Together, these verified construction details give installers a purpose-built compression driver for high-frequency applications.
Flexible System Design
Furthermore, the 0.9 kHz minimum crossover frequency gives system designers a clear reference when planning the high-frequency section. An annular phase plug and 15° conical exit angle are also specified. Consequently, helping define how the driver is arranged within a compatible loudspeaker design.
Compact Mechanical Format
Measuring 116 mm in overall diameter and 55 mm deep, the driver is suited to installations where the available space must be considered carefully. Its 35.8 mm throat diameter and 1.9 kg net weight provide useful reference points for enclosure planning and handling.
Key Features
- 110 dB sensitivity for strong high-frequency output
- Titanium dome diaphragm for dedicated high-frequency operation
- 0.6 to 18 kHz frequency range
- 100 W AES power above 0.9 kHz
- 8 Ohm nominal impedance
- Compact 116 mm diameter, 55 mm deep format
