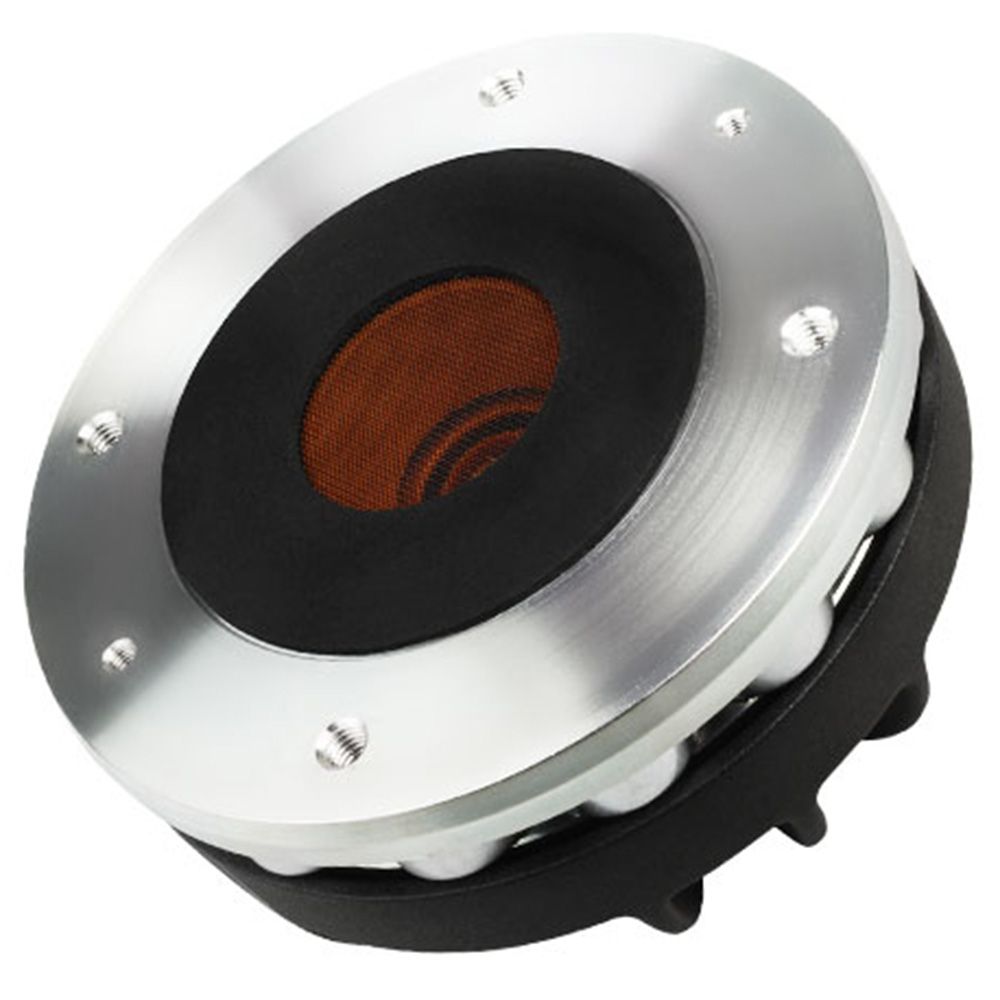

Faital Pro HF146 (16 Ohm) High-Frequency Driver
The Faital Pro HF146 16 Ohm is a high-frequency driver built around an efficient, compact format. Also, a broad stated response! A neodymium magnet, dome diaphragm and 109 dB sensitivity give system builders clear technical points to consider. Meanwhile, the 80 W AES rating sets a defined power reference.
Efficient High-Frequency Performance
With a 0.7 to 18 kHz frequency range and 109 dB sensitivity, the HF146 is specified for efficient high-frequency reproduction across a wide band. Its dome diaphragm uses Ketone Polymer, while the annular phase plug and 29° conical exit angle define the driver’s acoustic construction.
Power Ratings for System Setup
Moreover, the stated 80 W AES power above 0.9 kHz gives a clear reference for system planning. 40 W AES power is specified above 0.65 kHz. Maximum ratings are 160 W and 80 W across those respective points, while the minimum crossover frequency is 0.9 kHz.
Compact Format, Straightforward Fit Checks
Before installation, the physical dimensions make it easier to confirm available space and mounting alignment. The throat diameter is 35.6 mm, overall diameter is 123 mm, depth is 63.5 mm, and the 90° mounting-hole diameter is 102 mm using four M6 holes. Net weight is 2 kg.
Neodymium Construction
A Neodymium Slug Crown magnet and 1.7 T flux density form the magnetic specification, alongside a 65 mm voice coil with aluminum winding material and a Kapton former. The 16 Ohm nominal impedance and 14.4 Ohm minimum impedance provide key electrical references when selecting and configuring the surrounding system.
Key Features
- Broad 0.7 to 18 kHz frequency range for high-frequency reproduction
- 109 dB sensitivity for efficient operation
- Defined AES and maximum power ratings for system setup
- Neodymium magnet with dome-shaped Ketone Polymer diaphragm
- Detailed mounting and depth dimensions for fit checking
