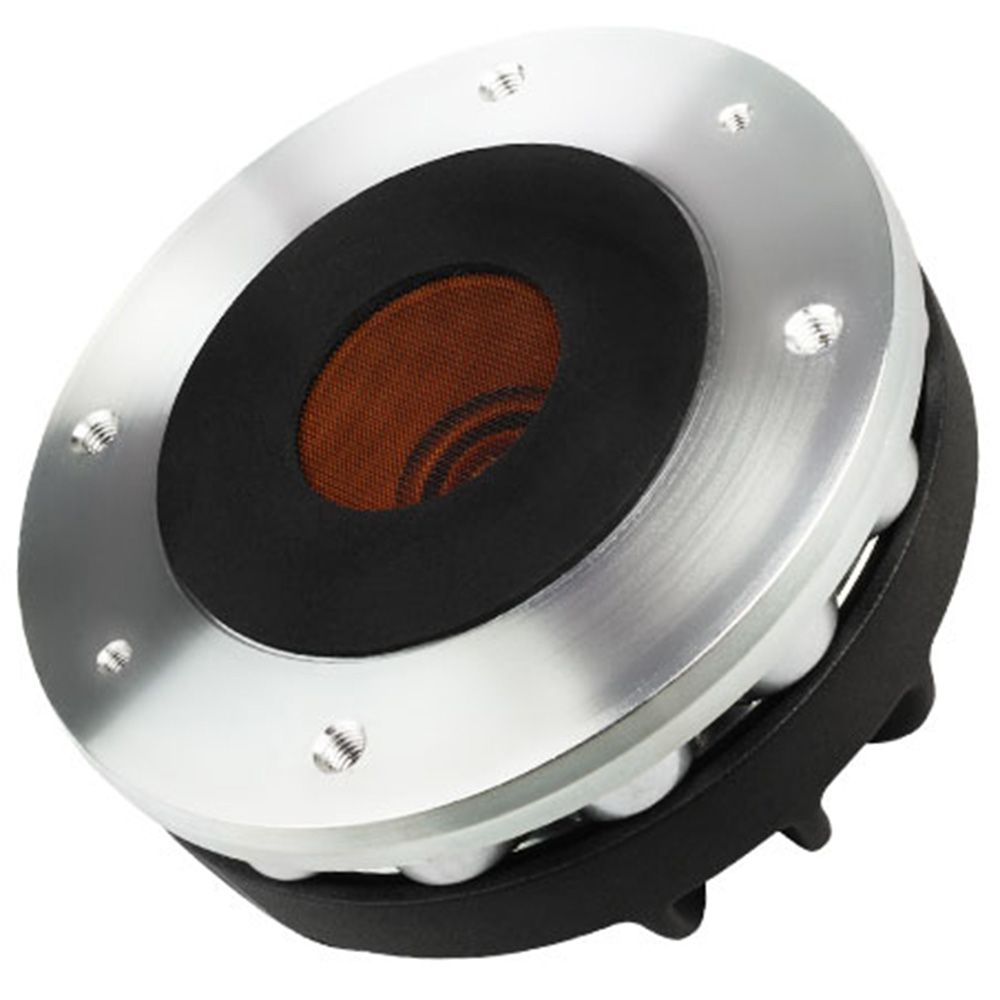

Faital Pro HF144 16 Ohm High-Frequency Driver
The Faital Pro HF144 combines high sensitivity with a 1.4″ throat and a frequency range of 0.7 to 18 kHz. Its neodymium magnet and dome-shaped diaphragm provide a practical foundation for high-frequency loudspeaker designs. Wherever output, construction and dispersion all matter.
High Output for HF Applications
Firstly, with 109 dB sensitivity and 80 W AES power above 0.9 kHz, this high-frequency driver is designed to handle demanding audio work. The 0.9 kHz minimum crossover frequency gives builders a clear electrical reference. Meanwhile, the stated power ratings distinguish continuous AES handling from maximum power figures.
Lightweight Magnetic Design
Moroever, the neodymium magnet keeps the magnetic assembly compact in relation to its output. The Ketone Polymer diaphragm and Kapton former contribute to the specified construction. Together with the 65 mm voice coil and aluminium winding material, these details give the driver a durable format for demanding loudspeaker builds.
Designed Around Your Cabinet
Installation planning is supported by clearly defined dimensions: the 35.6 mm throat, 123 mm overall diameter and 63.5 mm depth establish the space required around the driver. The four M6 mounting holes use a 102 mm diameter pattern, while the listed 0.55 dm³ net air volume accounts for the HF driver.
Defined Dispersion Features
A dome-shaped diaphragm is specified for improved sound dispersion, complemented by an annular phase plug and 29° conical exit angle. The 0.7 to 18 kHz operating range, 16 Ohm nominal impedance and 14.4 Ohm minimum impedance provide clear reference points when selecting and configuring the surrounding loudspeaker components.
Key Features
- High 109 dB sensitivity for high-frequency audio applications
- Neodymium magnet for a lightweight, high-performance design
- Dome-shaped diaphragm for improved sound dispersion
- 80 W AES power above 0.9 kHz
