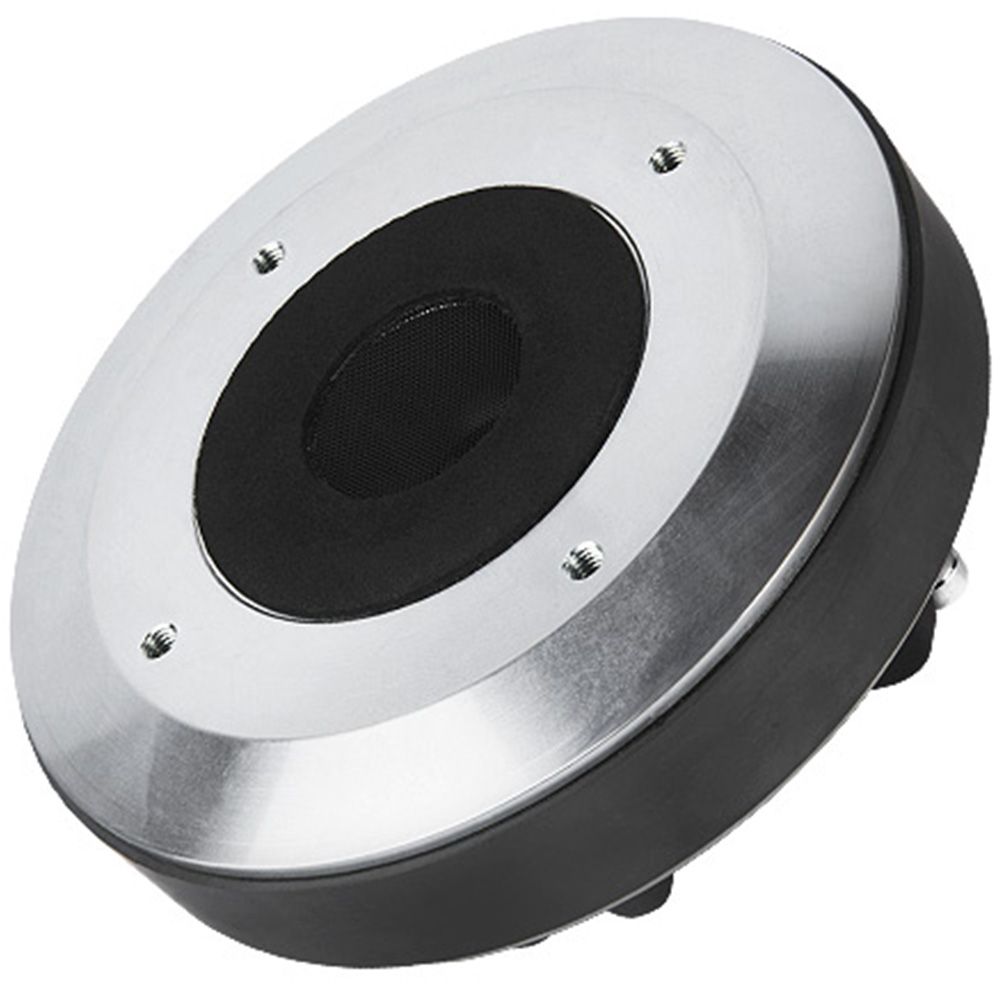

Faital Pro HF143 16 Ohm 1.4-Inch Compression Driver
The Faital Pro HF143 16 Ohm is a high-sensitivity compression driver; strong output and a broad working range. Its titanium dome diaphragm, annular phase plug design and 35.6 mm throat give system designers a focused foundation. Specially for high-frequency reinforcement.
High Output from Compact Power
Firstly, with 108 dB sensitivity, the HF143 can produce substantial acoustic output from 1 W at 1 m. It is rated for 100 W AES power above 0.9 kHz, with 200 W maximum power in the same range. Therefore, making it suited to speaker designs where efficient high-frequency projection matters.
Designed for Clear High-Frequency Work
Moreover, the titanium dome diaphragm combines with the annular phase plug design in a driver built for a 0.5–18 kHz frequency range. A minimum crossover frequency of 0.9 kHz gives designers a defined point for integrating the high-frequency section with the rest of a horn-loaded system.
Practical Horn-System Fit
Furthermore, the 35.6 mm throat diameter and 64.5 mm depth make the HF143 straightforward to assess when planning a cabinet or replacement. Its 90° mounting pattern uses four M6 holes across a 102 mm diameter. Meanwhile, the 156 mm overall diameter clarifies the space needed around the driver.
Built Around a 16 Ohm Load
Additionally, specified with a 16 Ohm nominal impedance and 10.3 Ohm minimum impedance, this compression driver gives builders clear electrical figures for system planning. The 4.0 kg net weight is also worth allowing for when designing the enclosure, mounting hardware and overall speaker assembly.
Key Features
- High 108 dB sensitivity for efficient acoustic output
- Titanium dome diaphragm and annular phase plug design
- 100 W AES power above 0.9 kHz
- Broad 0.5–18 kHz frequency range
- 16 Ohm nominal impedance for defined system planning
