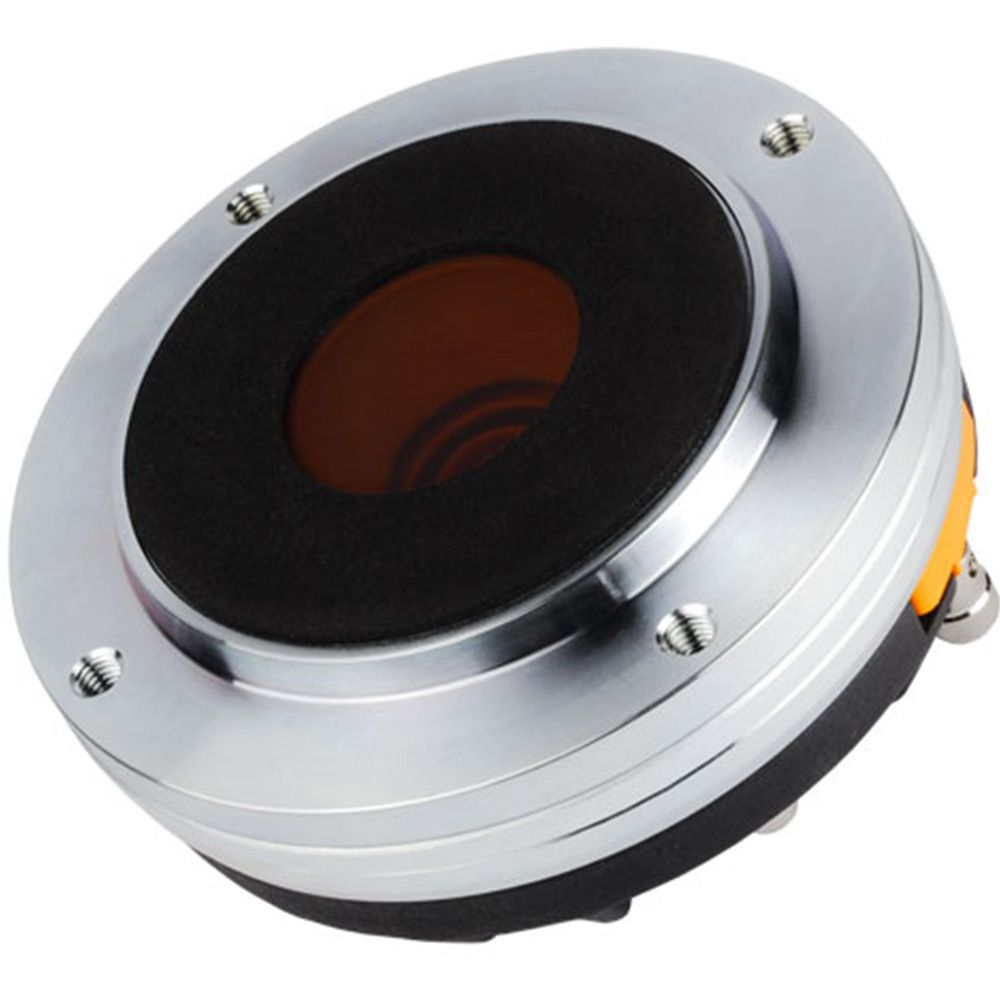

Faital Pro HF142 1.4-Inch High-Frequency Driver
The Faital Pro HF142 delivers high sensitivity across a broad 0.7–18 kHz frequency range. It combines a ketone polymer dome diaphragm with a neodymium magnet for professional audio systems. Plus, its 16 Ohm nominal impedance helps builders plan compatible speaker designs.
High Output for High-Frequency Work
With 110 dB sensitivity, the HF142 delivers strong output for professional sound systems. It also handles up to 160 W maximum power above 0.9 kHz. Meanwhile, its 0.9 kHz minimum crossover frequency helps builders plan the right crossover point.
Broad, Detailed Frequency Coverage
The HF142 covers frequencies from 0.7 to 18 kHz. As a result, it supports a wide range of high-frequency speaker designs. Its annular phase plug and 29° conical exit angle define key parts of its construction. In addition, the dome diaphragm supports its high-frequency design.
Durable Materials, Practical Format
The HF142 uses a ketone polymer diaphragm, aluminium winding and Kapton former. It also features a neodymium magnet for its magnetic assembly. Furthermore, the 65 mm voice coil and 1.64 kg net weight give builders useful details for installation and enclosure planning.
Designed for Speaker Builders
The HF142 suits professional high-frequency applications where impedance, crossover point, output and mounting dimensions all need to be considered together. Its 35.6 mm throat diameter, 115 mm overall diameter and 54.5 mm depth make the driver’s installation requirements straightforward to assess before building.
Key Features
- High 110 dB sensitivity for strong high-frequency output
- Broad 0.7÷18 kHz frequency range
- Ketone polymer dome diaphragm for the specified durable construction
- Neodymium magnet in a professional high-frequency driver format
- 16 Ohm nominal impedance for speaker design planning
