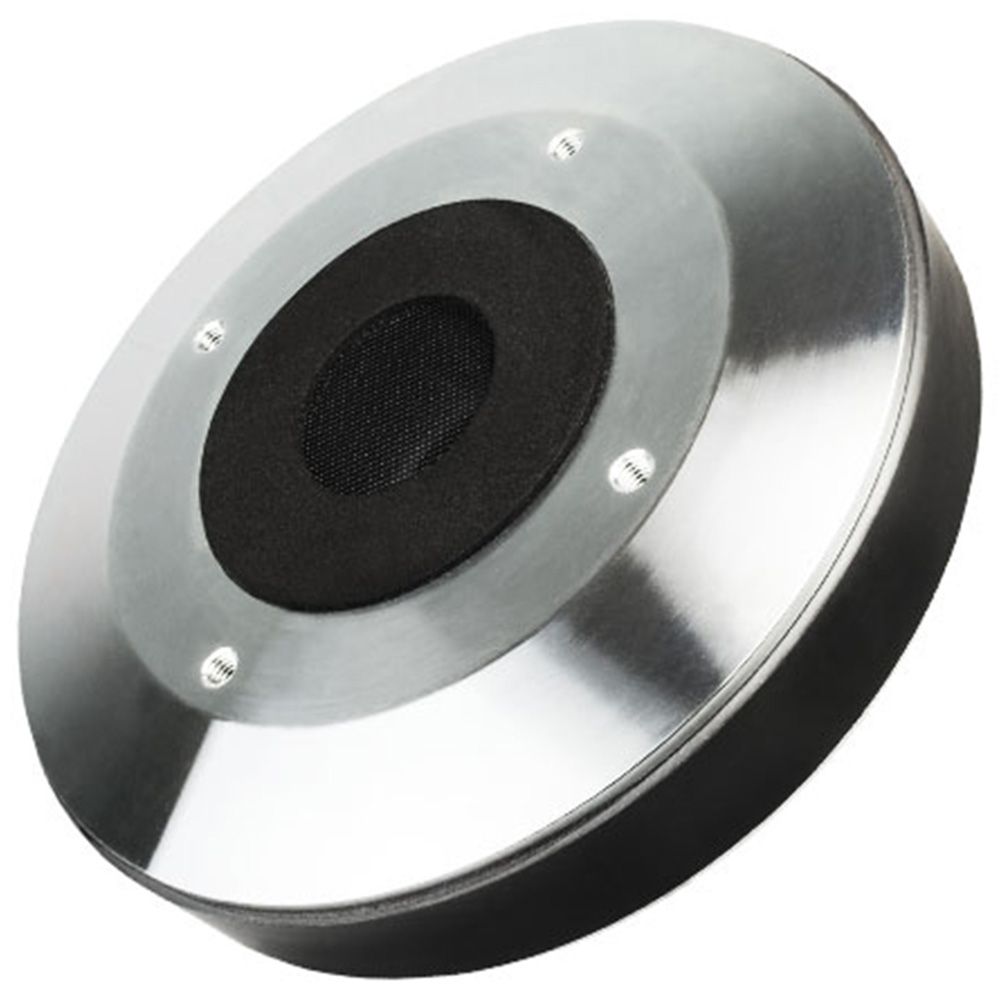

Faital Pro HF141 16 Ohm High-Frequency Driver
The Faital Pro HF141 16 Ohm combines high sensitivity with a broad operating range and a titanium diaphragm. Its 1.4-inch throat, annular phase plug and ferrite ring magnet give system builders clear reference points when planning a sound reinforcement design.
High Sensitivity for Sound Reinforcement
With sensitivity specified at 109 dB (1W/1m), the driver is designed for high-frequency duties in professional audio systems. The 0.5÷18 kHz frequency range covers a wide portion of the upper response, while the 16 Ohm nominal impedance identifies the electrical version for system planning.
Robust Diaphragm Construction
The HF141 uses a titanium dome diaphragm with a 74 mm voice coil, aluminium winding material and a Kapton former. Together, these named construction details describe the driver’s internal format and give installers precise information when assessing replacement or build requirements.
Clear Crossover and Mounting Reference
A minimum crossover frequency of 0.9 kHz and maximum power of 200 W above that point provide important design figures for sound reinforcement work. The 170 mm overall diameter, 66 mm depth and 102 mm 90° mounting-hole diameter should be checked against the intended physical installation.
Key Features
- High 109 dB sensitivity for professional audio applications
- Titanium diaphragm with dome shape
- Wide 0.5÷18 kHz frequency range
- 200 W maximum power above 0.9 kHz
- Annular phase plug and ferrite ring magnet
