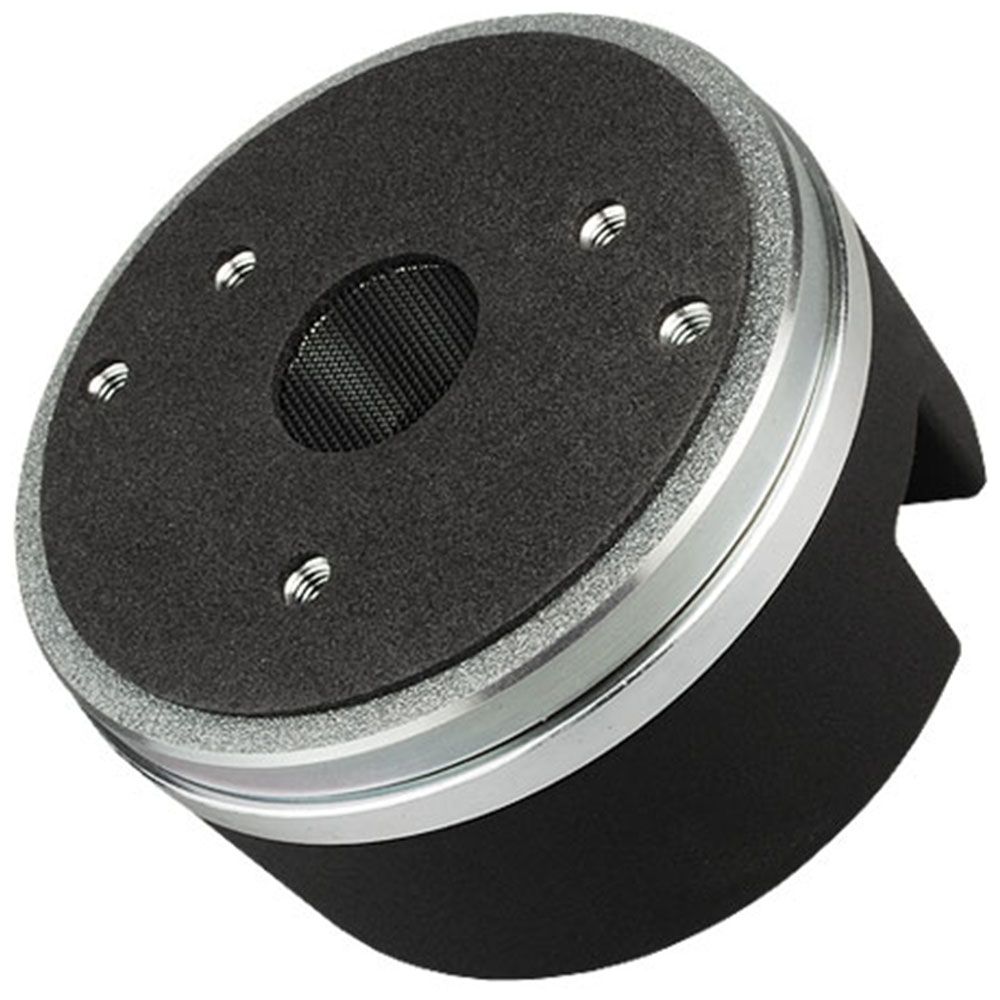

Faital Pro HF10AK 1-inch Compression Driver (8 Ohm)
The Faital Pro HF10AK combines high sensitivity with a broad specified frequency range. Its dome diaphragm, annular phase plug design, and neodymium ring magnet create a focused component choice for designing systems around a 1-inch throat.
Strong Output for System Design
With 110 dB sensitivity and 60 W AES power handling, this compression driver is specified for systems where efficient high-frequency reproduction matters. Maximum power handling is 120 W. Meanwhile, the 1.3 kHz minimum crossover frequency gives designers a clearly defined lower limit when planning the crossover network.
Built Around a Wide HF Range
Moreover, the listed frequency range extends from 0.8 to 20 kHz, covering the high-frequency band required by the driver’s specification. A 44 mm voice coil uses Al winding material on a Kapton former, while the Ketone Polymer dome diaphragm provides the stated construction for the HF section.
Plan the Fit Before Installation
The 25.4 mm throat and 102 mm overall diameter make it important to compare the driver with the available horn, cabinet, or mounting position before installation. Check the 54 mm depth as well, then match the required layout: 2xM6 holes at 180° or 3xM6 holes at 120°.
Key Features
- High 110 dB sensitivity for efficient system design
- Dome diaphragm made from Ketone Polymer
- Neodymium Ring magnet with annular phase plug design
- Two specified M6 mounting-hole layouts for installation planning
