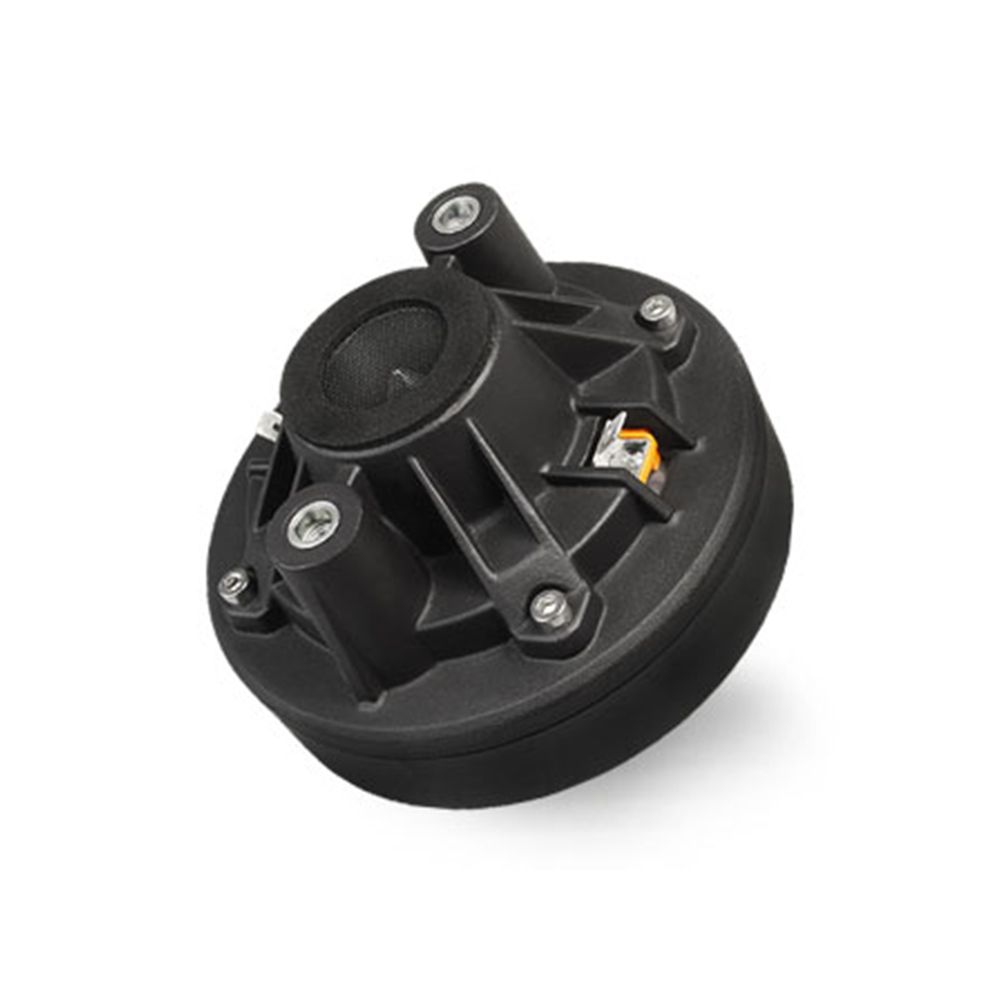

Faital Pro HF107 16 Ohm 1-Inch Compression Driver
The Faital Pro HF107 16 Ohm compression driver is built for professional sound reinforcement. Wherever high-frequency output needs to sit confidently in the system. Its 109 dB sensitivity, 70 W AES handling and 1.3÷20 kHz response give speaker builders a practical foundation for high-frequency coverage.
Efficient High-Frequency Output
With 109 dB sensitivity measured at 1W/1m, the driver can produce strong output from a defined amount of input power. That makes it a practical choice for sound reinforcement builds that need the high-frequency section to work efficiently.
Controlled Driver Construction
Moreover, the 44 mm voice coil works with a Ketone Polymer annular diaphragm and annular phase plug. Together, these specified design elements form the core of the high-frequency assembly. Meanwhile, the 1.9 T flux density and ferrite ring magnet define its magnetic structure.
Flexible System Design
A 1.3 kHz minimum crossover frequency gives speaker designers a clear point from which to plan the high-frequency section. The 16 Ohm nominal impedance and 13.6 Ohm minimum impedance also make the electrical load information easy to account for during crossover and amplifier matching.
Built for Enclosure Planning
The 25.4 mm throat diameter, combined exit and 121 mm overall diameter provide key dimensions for cabinet and horn planning. At 75.4 mm deep and 2.5 kg net, the driver’s physical size and weight are clearly defined before installation.
Key Features
- High 109 dB sensitivity for efficient high-frequency system design
- 70 W AES and 140 W maximum power handling
- Ketone Polymer annular diaphragm with annular phase plug
- 1.3÷20 kHz frequency range for high-frequency sound reinforcement
