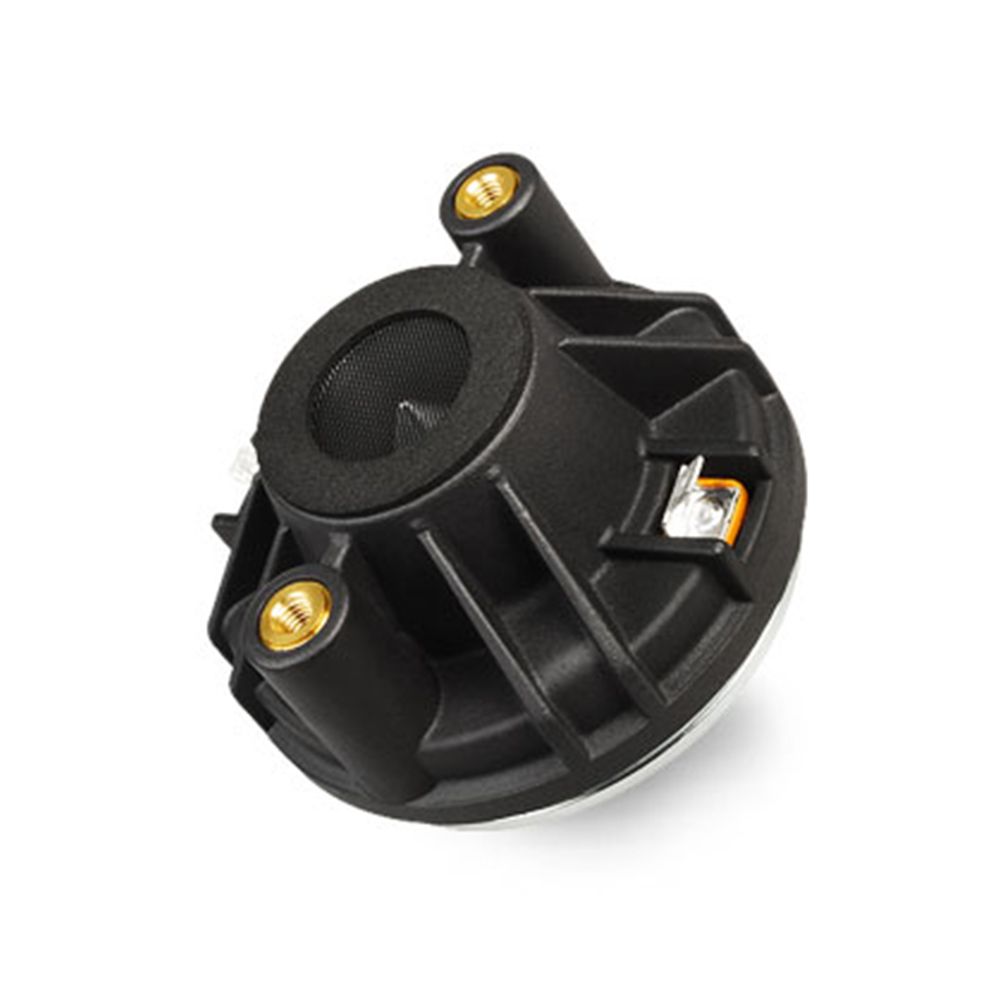

Faital Pro HF106 16 Ohm 1-Inch Compression Driver
The Faital Pro HF106 is a 16-ohm compression driver for building high-frequency speaker systems around a 1-inch throat. Its 60 W AES rating, 110 dB sensitivity, and 1.3–20 kHz range give you clear reference points when planning a horn-loaded enclosure or replacement driver.
High-Frequency Coverage
Firstly, a 1.3 kHz minimum crossover frequency and frequency range extending to 20 kHz define the operating figures for the HF106. The 110 dB sensitivity rating is measured at 1 W/1 m. Consequently, giving builders a straightforward reference for system-level output calculations and crossover planning.
Built Around a Lightweight Magnetic Assembly
Moreover, the neodymium ring magnet produces a listed flux density of 2.1 T. Meanwhile, the 44 mm voice coil uses Al winding material and a Kapton former. Together with the Ketone Polymer annular diaphragm, these details describe the driver’s core construction without adding unnecessary bulk to the system design.
Practical Speaker-Building Dimensions
The 95.7 mm overall diameter and 58.8 mm depth give installers clear physical measurements to work from. The 180° mounting specification uses a 76 mm diameter with 2xM6 holes, while the 1.1 kg net weight is useful when checking enclosure layout and handling requirements.
Power and Electrical Details
With 16 Ohm nominal impedance, 13.7 Ohm minimum impedance, 60 W AES power handling, and 120 W maximum power handling, the HF106 offers the key electrical figures needed for selecting and configuring a compatible speaker system. Its 25.4 mm throat diameter and Combined Exit complete the listed format.
Key Features
- High-frequency driver format with a 1-inch throat
- Neodymium ring magnet and 2.1 T flux density
- Ketone Polymer annular diaphragm with annular phase plug design
- 60 W AES and 120 W maximum power handling
- Defined mounting dimensions for enclosure planning
