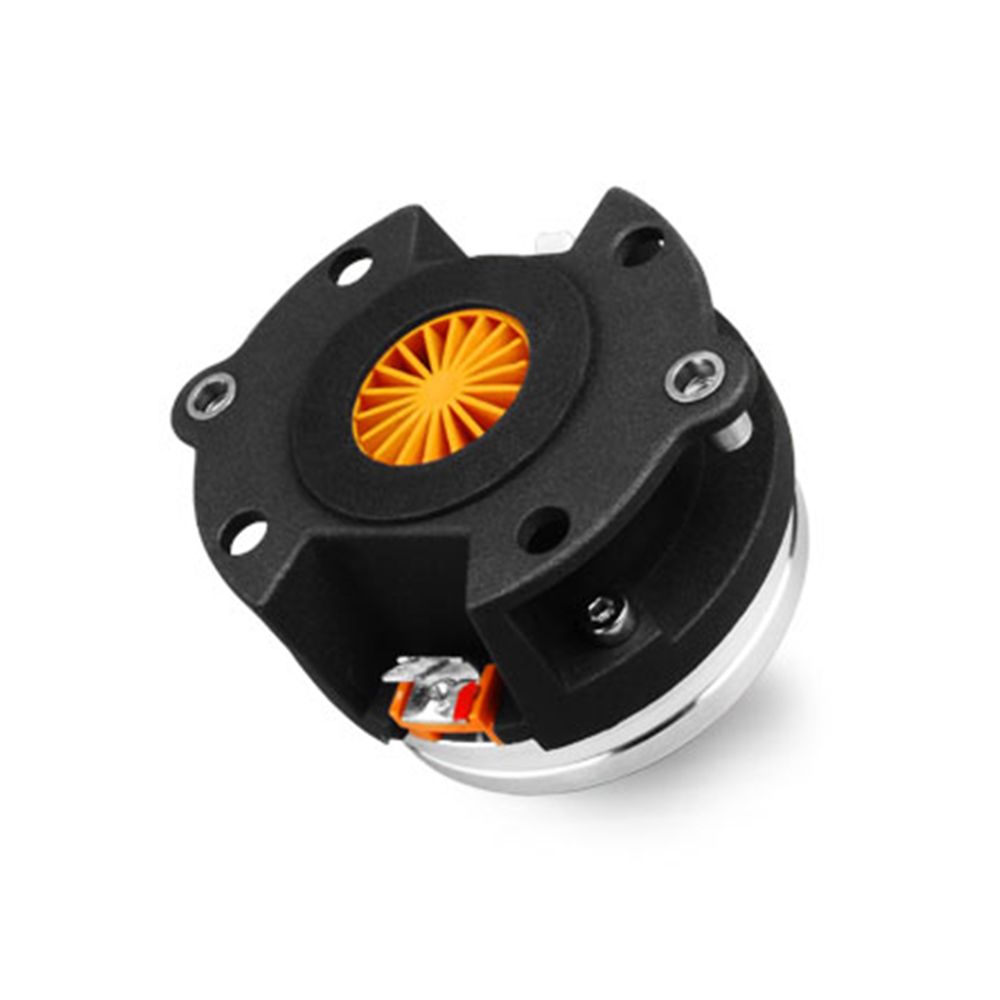

Faital Pro HF104 16 Ohm Professional HF Driver
Built for detailed high-frequency reproduction, the Faital Pro HF104 combines a 16 Ohm design with 108 dB sensitivity and a 1.5÷20 kHz frequency range. Its 1-inch throat, annular Ketone Polymer diaphragm and Radial phase plug give loudspeaker designers a clearly defined HF driver platform.
Clear High-Frequency Detail
The 108 dB sensitivity (1W/1m) and 1.5÷20 kHz frequency range give the HF104 the response needed for high-frequency loudspeaker work. A 1.7 kHz minimum crossover frequency also provides a defined point for planning the transition into the high-frequency section.
Efficient Driver Construction
A Ketone Polymer annular diaphragm works with a 37 mm voice coil, Kapton former and Neodymium Ring magnet. The listed 1.85 T flux density and Radial phase plug design form a focused, purpose-built construction for reproducing the upper part of the audible range.
Practical Mounting Format
The 25.4 mm (1 in) throat diameter keeps the connection format clear, while the 91 mm overall diameter and 51 mm depth define the physical space required. 180° mounting holes with a 77.5 mm diameter make the installation dimensions straightforward to measure before fitting.
Built for System Planning
With 40 W AES power handling, 80 W maximum power handling and a 16 Ohm nominal impedance, this driver offers clearly stated electrical limits for system design. Its 670 g net weight and 0.16 dm³ net air volume keep the key physical requirements easy to account for.
Key Features
- Detailed high-frequency reproduction across a 1.5÷20 kHz range
- High 108 dB sensitivity for efficient operation
- Annular Ketone Polymer diaphragm with Radial phase plug design
- 1-inch throat and defined 180° mounting dimensions
- 40 W AES and 80 W maximum power handling
