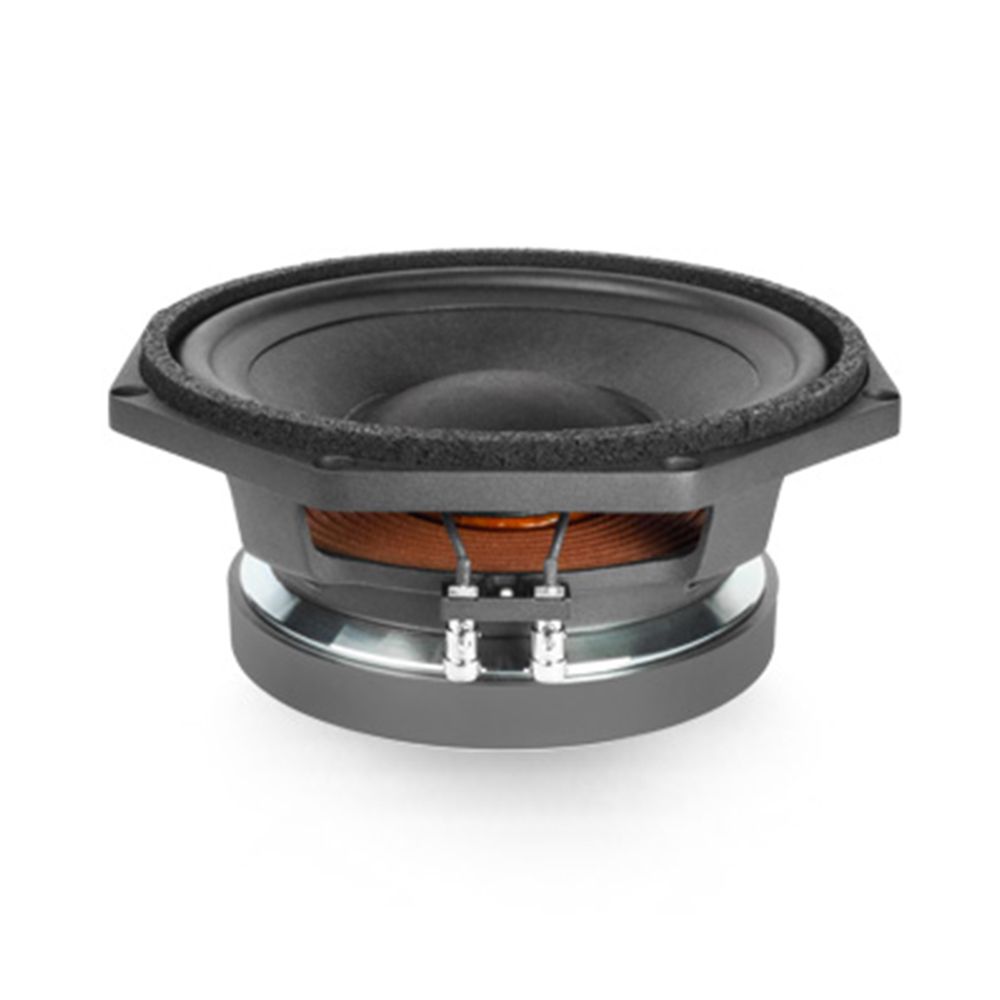

Faital Pro 8RS350 8 Ohm (Ω), 8-Inch Professional Woofer
The Faital Pro 8RS350 gives speaker builders a clearly defined 8-inch woofer platform, combining published power ratings with practical mounting dimensions. Its 8 ohm nominal impedance, 50÷6300 Hz frequency range and 90 dB sensitivity make the key electrical and response references easy to review before planning a build.
Plan the enclosure around clear dimensions
Installation planning starts with the physical details: the driver measures 223.7/207.9 mm overall, uses a 183 mm baffle cutout and has a 106.5 mm depth. A 210 mm bolt circle and 16 mm flange and gasket thickness add further reference points when checking the enclosure layout.
Work from published power and impedance figures
The 300 W AES rating and 600 W maximum power handling describe the woofer’s stated power limits, while the 6.2 ohm minimum impedance adds another important electrical figure. Together, these specifications give builders straightforward information to consider when selecting the surrounding components for a loudspeaker project.
Use the listed construction details
A 65 mm voice coil uses aluminium winding material and a glass fiber former. The driver also features a ferrite ring magnet, aluminum basket and aluminum ring demodulation. A Half Roll cone surround and 1x constant height waves spider profile complete the specified construction details without adding unnecessary complexity.
Model enclosure behaviour with the Thiele-Small data
The Thiele-Small parameters give enclosure designers a set of figures for modelling, including Fs at 42 Hz, Vas at 23.7 dm^3 (0.84 ft^3), Qts at 0.30 and EBP at 134 Hz. Xmax is 7.37 mm, with Xdamage listed at 16.85 mm for additional mechanical reference.
Key Features
- 8-inch woofer format with clearly stated mounting dimensions
- 300 W AES and 600 W maximum power-handling ratings
- 8 ohm nominal impedance with 6.2 ohm minimum impedance
- Ferrite ring magnet and aluminum basket construction
- Thiele-Small parameters for enclosure modelling
