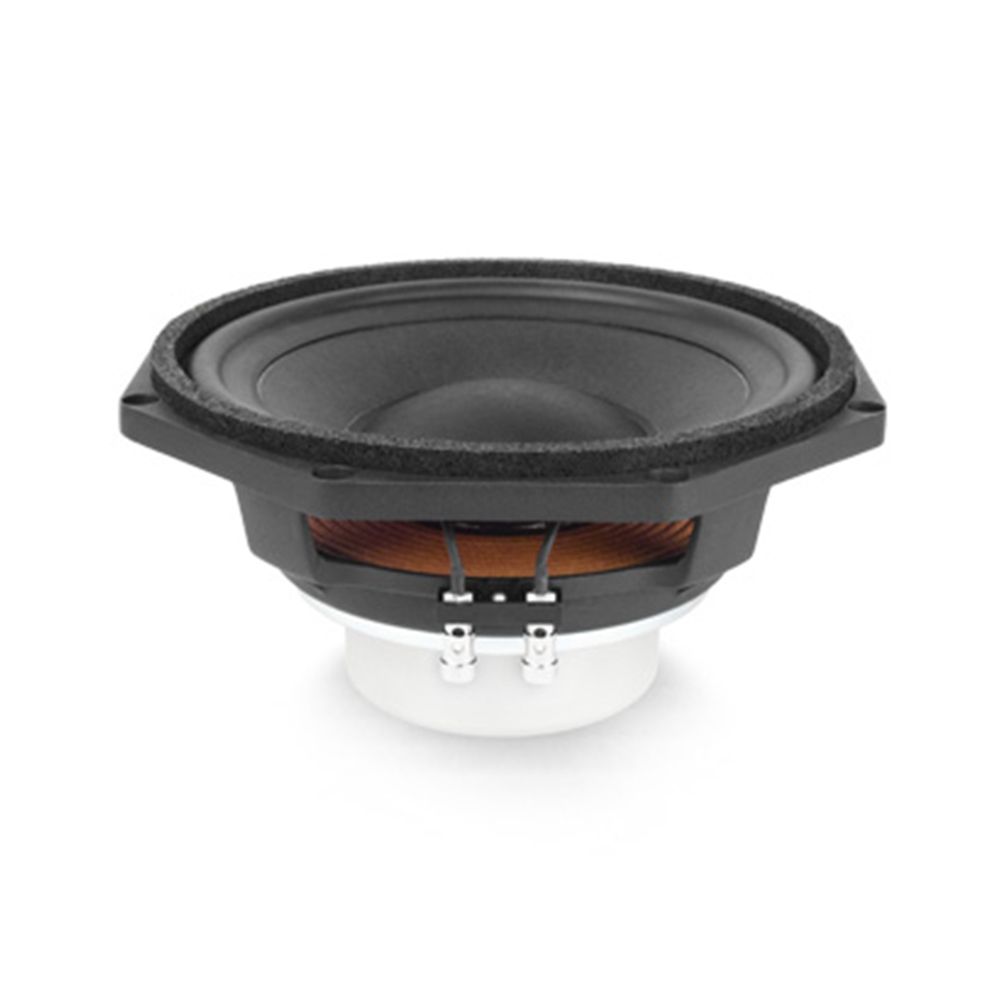

Faital Pro 8RS340 8-Inch Professional Woofer
The Faital Pro 8RS340 gives speaker builders a compact woofer with clearly defined electrical, mechanical, and mounting data. Consists of a neodymium magnet, aluminium basket, 300 W AES power handling and 91 dB sensitivity.
Plan the Enclosure with Confidence
Firstly, mounting details are easy to work into a cabinet design. There is the nominal diameter is 200 mm, the baffle cutout is 183 mm, and depth is 104.8 mm. Also, a 210 mm bolt circle and 16 mm flange and gasket thickness provide the physical references needed for layout and installation.
Balanced Driver Construction
Moreover, the 65 mm voice coil uses Al winding material on a Glass Fiber former. Meanwhile, the aluminium basket keeps the mechanical construction clearly defined. Additionally, a Half Roll cone surround and 1x constant height waves spider profile complete the stated suspension details for enclosure and driver planning.
Match the Electrical Parameters
Furthermore, with an 8 Ohm nominal impedance and 6 Ohm minimum impedance, the 8RS340 gives system builders clear information for amplifier and crossover matching. Its 50÷6300 Hz frequency range, 42 Hz Fs, and 25.5 dm^3 Vas value add useful reference points for modelling the intended enclosure.
Key Features
- Compact 200 mm nominal diameter for enclosure projects
- Neodymium Slug magnet for a lighter 2.5 kg net driver weight
- 300 W AES and 600 W maximum power handling for designs requiring substantial power capacity
- 91 dB sensitivity and 8 Ohm nominal impedance for straightforward system matching
