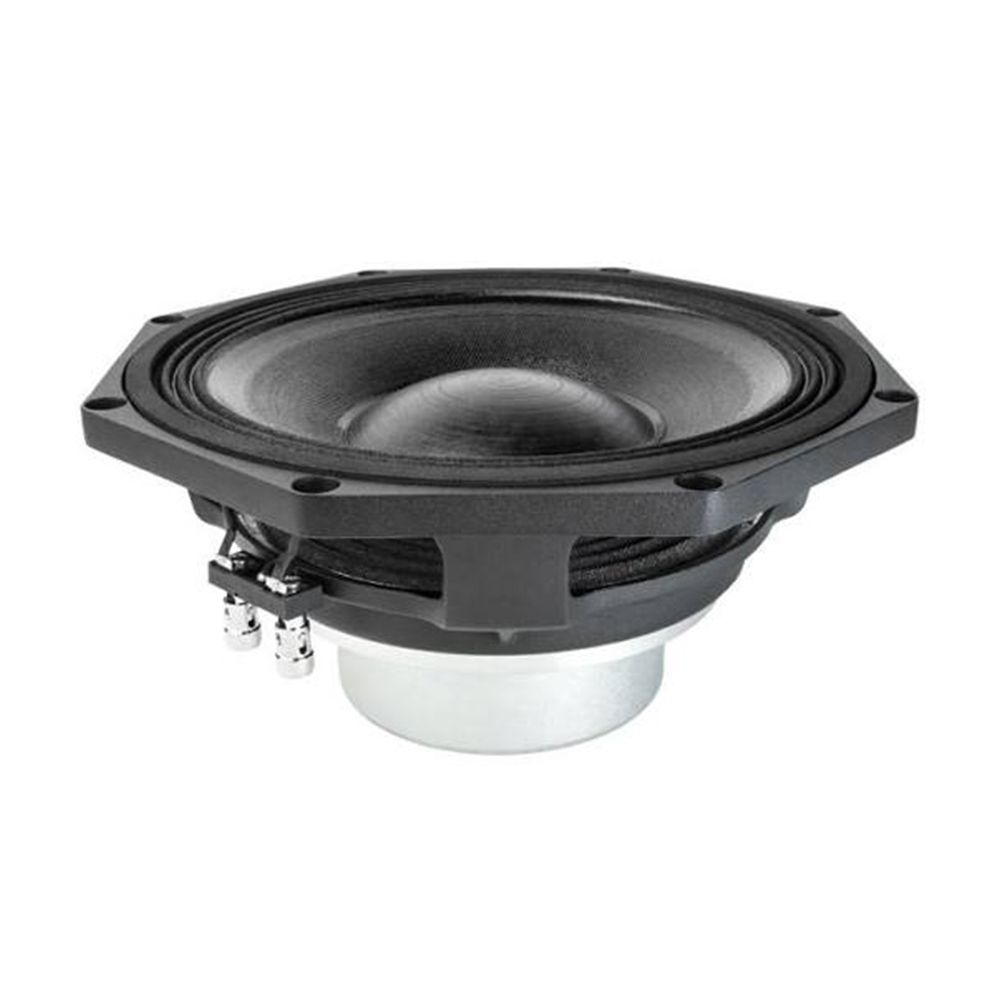

Faital Pro 8PR320 8 Inch 8 Ohm Loudspeaker Part
The Faital Pro 8PR320 is a high-sensitivity loudspeaker part for cabinet builders and audio technicians who need clear design references. Whatever one needs for amplifier matching and enclosure planning. Its 300 W AES rating, 95 dB sensitivity and neodymium slug magnet combine with a compact 99.5 mm depth for practical system development.
Plan Power and Impedance Confidently
Firstly, with 8 Ohm nominal impedance, 6.1 Ohm minimum impedance and 300 W AES power handling, the 8PR320 gives designers concrete figures for amplifier selection and power planning. Its 600 W maximum power handling adds another reference point when assessing operating limits. Meanwhile, the listed parameters keep system calculations grounded.
Efficient Output in a Compact Build
Moreover, 95 dB sensitivity at 1 W/1 m means less amplifier power is needed to reach a given output level than with a lower-sensitivity driver. The neodymium slug magnet and 2.45 kg net weight also keep the part manageable during cabinet development. All without changing the mounting measurements that need to be checked first.
Built for Controlled Movement
A 65 mm voice coil uses an aluminium winding and glass fiber former, while the Triple Roll cone surround and 1x variable height waves spider profile guide the moving assembly. The 7.33 mm Xmax figure gives enclosure designers a clear reference when evaluating cone movement within a planned system.
Check the Fit Before Assembly
The driver uses a 183 mm baffle cutout diameter, 210 mm bolt circle diameter and 223.7/207.9 mm overall diameter. Its 99.5 mm depth and 11 mm flange and gasket thickness are equally important when laying out a baffle, so cabinet drawings can be checked against the actual mounting space.
Key Features
- High 95 dB sensitivity for efficient system design
- 300 W AES and 600 W maximum power-handling figures for amplifier planning
- Neodymium slug magnet and 2.45 kg net weight for manageable cabinet development
- Triple Roll surround and variable-height waves spider profile for controlled moving assembly
- Defined cutout, bolt-circle, diameter and depth measurements for accurate cabinet layout
