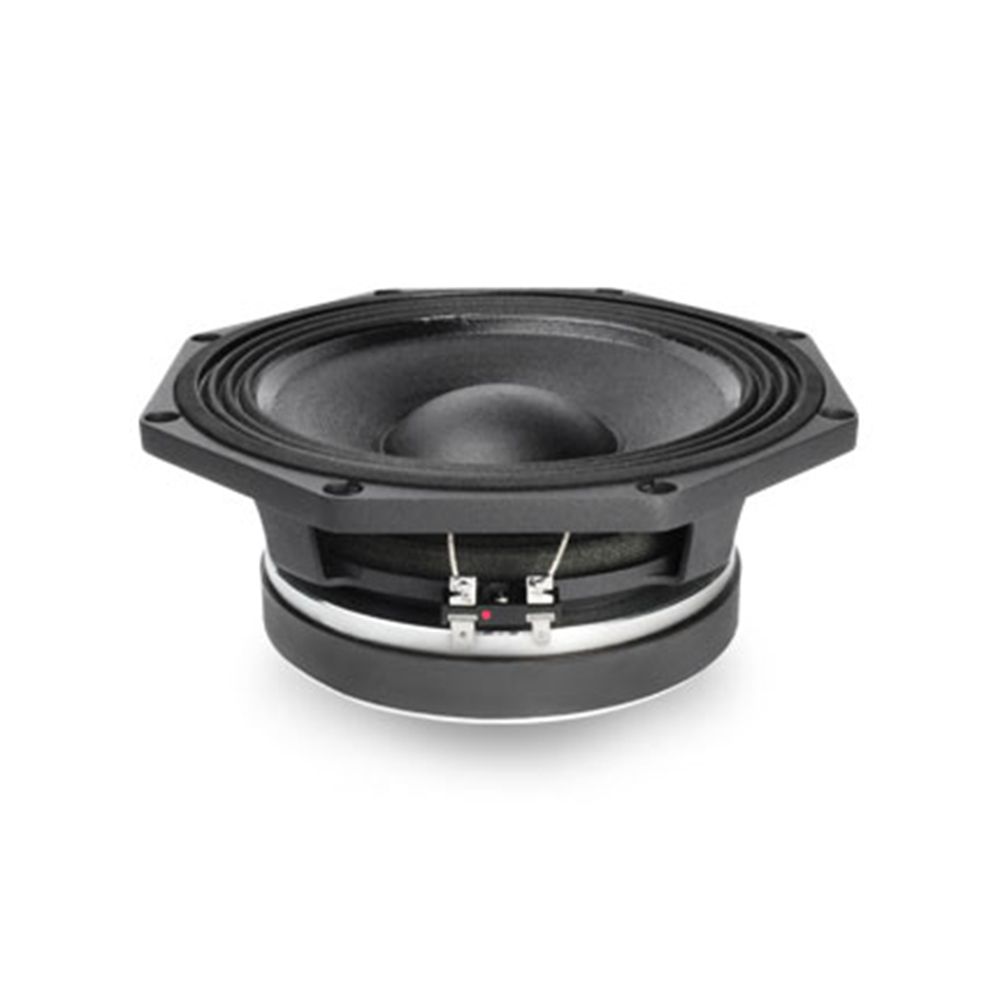

Faital Pro 8PR210 8-Inch Professional Woofer
The Faital Pro 8PR210 delivers strong output in a compact 8-inch woofer design. It combines 95 dB sensitivity with 200 W AES power handling and a 70–5000 Hz frequency range. Additionally, its aluminium basket and ferrite ring magnet suit professional loudspeaker builds.
Efficient Output for Compact Builds
The 8PR210 delivers 95 dB sensitivity at 1 W/1 m. As a result, it produces strong acoustic output for the power applied. It also handles 200 W AES power and 400 W maximum power. These ratings help designers plan suitable amplification for custom loudspeaker systems.
Built Around a Responsive Motor Assembly
Moreover, the 52 mm (2 in) voice coil uses Aluminium winding material on a Glass Fiber former, working within an 8 mm magnetic gap with 1.3 T flux density. Together with the Ferrite Ring magnet and Aluminium Ring demodulation, these details define the woofer’s motor assembly for demanding loudspeaker design work.
Designed for Controlled Cone Movement
Furthermore, a Triple Roll cone surround and 1x variable height waves spider profile support the moving assembly. The 6.92 mm Xmax figure describes its specified linear excursion. The result is a carefully defined platform for enclosure development, with Thiele and small parameters available for more detailed design calculations.
Plan the Fit Before Installation
Additionally, the 200 mm (8 in) nominal diameter is paired with a 183 mm (7.20 in) baffle cutout diameter, 210 mm (8.27 in) bolt circle diameter and 98.5 mm (3.88 in) depth. Check these measurements against the enclosure before installation, especially where internal space and mounting alignment are limited.
Key Features
- Efficient 95 dB sensitivity for strong output from applied power
- 200 W AES power handling for custom loudspeaker designs
- Aluminum basket, Ferrite Ring magnet and Aluminum Ring demodulation
- Triple Roll cone surround and variable-height-wave spider profile
- Detailed Thiele and small parameters for enclosure development
