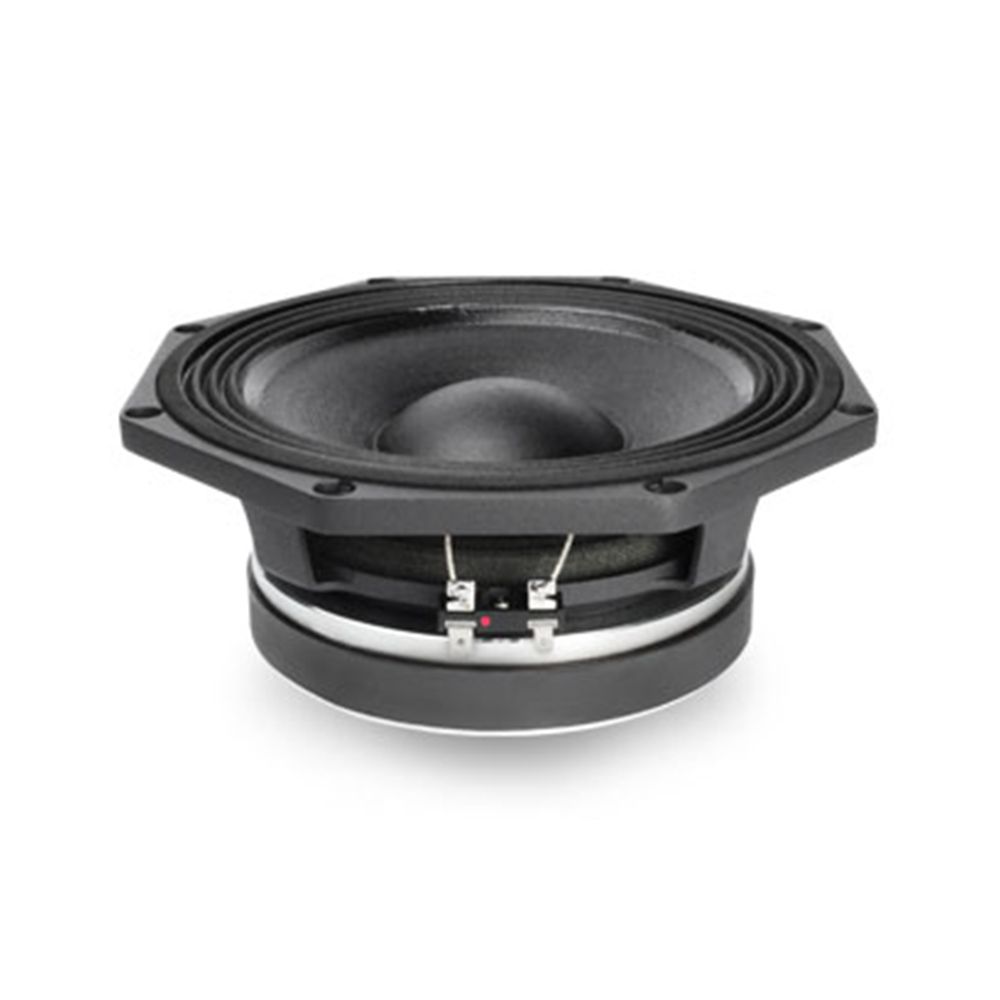

Faital Pro 8PR210 16 Ohm 8 Inch Loudspeaker Part
The Faital Pro 8PR210 is an 8-inch loudspeaker part for carefully specified speaker construction. Its 16-ohm configuration, 200 W AES power handling and 94 dB sensitivity give builders clear electrical and output reference points. Meanwhile, the aluminium basket and ferrite ring magnet define its physical construction.
Plan the enclosure with clear dimensions
Firstly, a 200 mm nominal diameter, 183 mm baffle cutout diameter and 98.5 mm depth make the physical requirements easy to check during enclosure planning. The 210 mm bolt circle diameter and 223.7/207.9 mm overall diameter add the mounting references needed when laying out the baffle and surrounding hardware.
Match amplification with useful ratings
Additionally, the nominal and minimum impedance figures give amplifier planning a clear starting point. The AES and maximum power-handling ratings distinguish the stated continuous and maximum specifications. That information lets builders compare the loudspeaker part with the intended amplifier and design without relying on guesswork.
Use the specified driver construction
Furthermore, a 52 mm voice coil uses Al winding material and a glass fibre former, alongside a ferrite ring magnet, aluminium basket and aluminium demodulation ring. The Triple Roll cone surround and 1x variable height waves spider profile complete a clearly documented construction platform. For replacements or new work!
Work from measured loudspeaker parameters
For more detailed enclosure design, the Thiele and small parameters include Fs, Re, Qes, Qms, Qts, Vas and Sd, with Xmax and Xdamage also specified. These figures give speaker builders the data needed to evaluate the driver within their own calculations and enclosure plans.
Key Features
- An 8-inch format suits speaker construction and replacement work
- Electrical and power-handling specifications support amplifier and enclosure planning
- Aluminium basket, ferrite ring magnet and aluminium demodulation ring define the construction
- Thiele and small parameters provide detailed data for enclosure calculations
