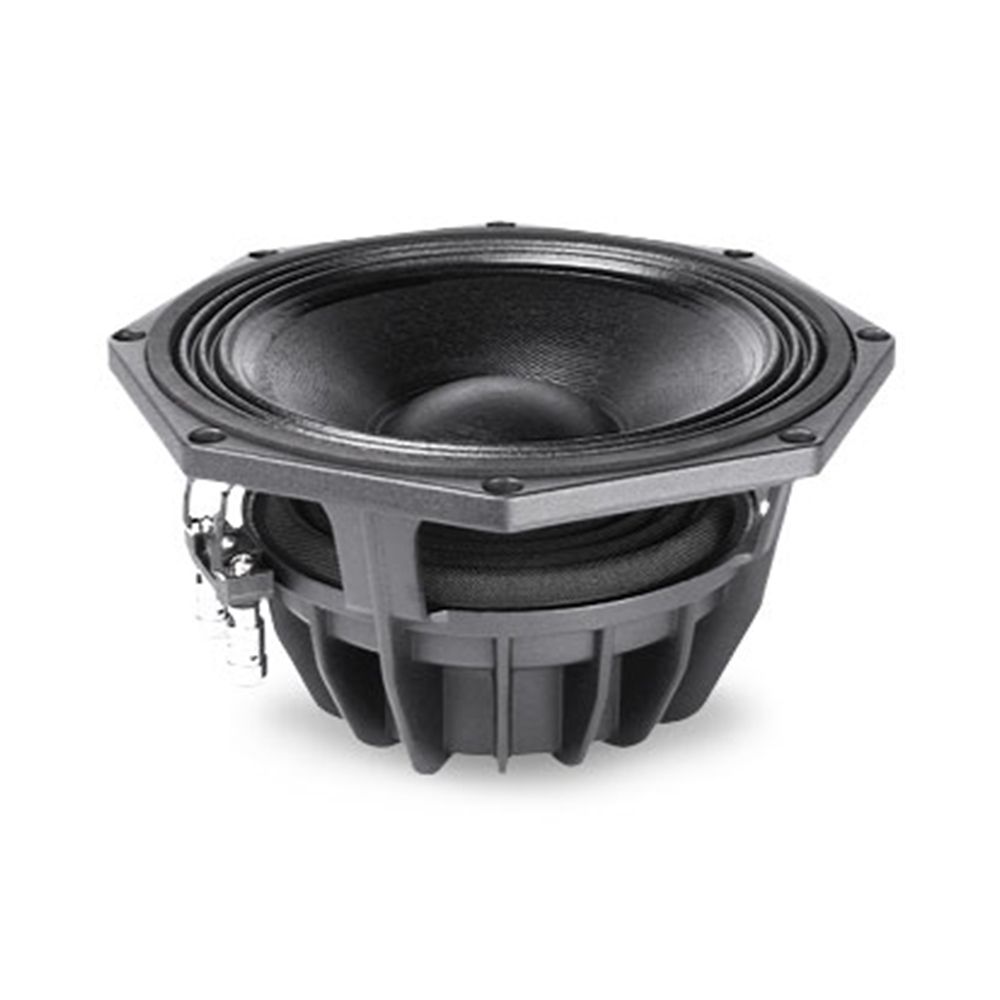

Faital Pro 8PR200 16 Ohm 8-Inch Professional Woofer
The Faital Pro 8PR200 gives speaker builders a compact 8-inch woofer with clearly defined electrical, mechanical and mounting reference points. A neodymium ring magnet, aluminum basket and 200 W AES power handling sit alongside a 16 Ohm nominal impedance. Consequently, making the driver straightforward to assess during enclosure and amplifier matching.
Compact Mounting Footprint
Firstly, at 200 mm nominal diameter, the driver suits projects where available space matters. The 223.75/207.9 mm overall diameter, 183 mm baffle cutout and 116.7 mm depth give enclosure builders the measurements needed to check fit before cutting, while the 210 mm bolt circle supports accurate mounting-hole layout.
Electrical and Power Reference
The 16 Ohm nominal impedance and 14 Ohm minimum impedance give amplifier matching a clear starting point. With 200 W AES power handling and 400 W maximum power handling listed, the 8PR200 offers defined figures to consider when selecting and configuring the associated electronics.
Built Around Practical Driver Details
The neodymium ring magnet keeps the magnetic assembly compact, while the aluminum basket provides the stated frame material. A 52 mm voice coil uses an aluminum winding and glass fiber former; together with the Triple Roll cone surround and 1x variable height waves spider profile, these details describe the driver’s construction.
Thiele-Small Data for Enclosure Work
For more detailed enclosure calculations, the published Thiele-Small parameters include Fs, Qes, Qms, Qts, Vas and Sd. Xmax, Xdamage, Mms, Bl, Le, Cms and Rms add further mechanical and electrical reference points, so designers can evaluate the woofer against their project requirements.
Key Features
- Compact 200 mm nominal diameter with defined cutout, depth and bolt-circle measurements
- Neodymium ring magnet and aluminum basket construction
- Clear impedance and power-handling figures for amplifier matching
- Published Thiele-Small parameters for enclosure calculations
