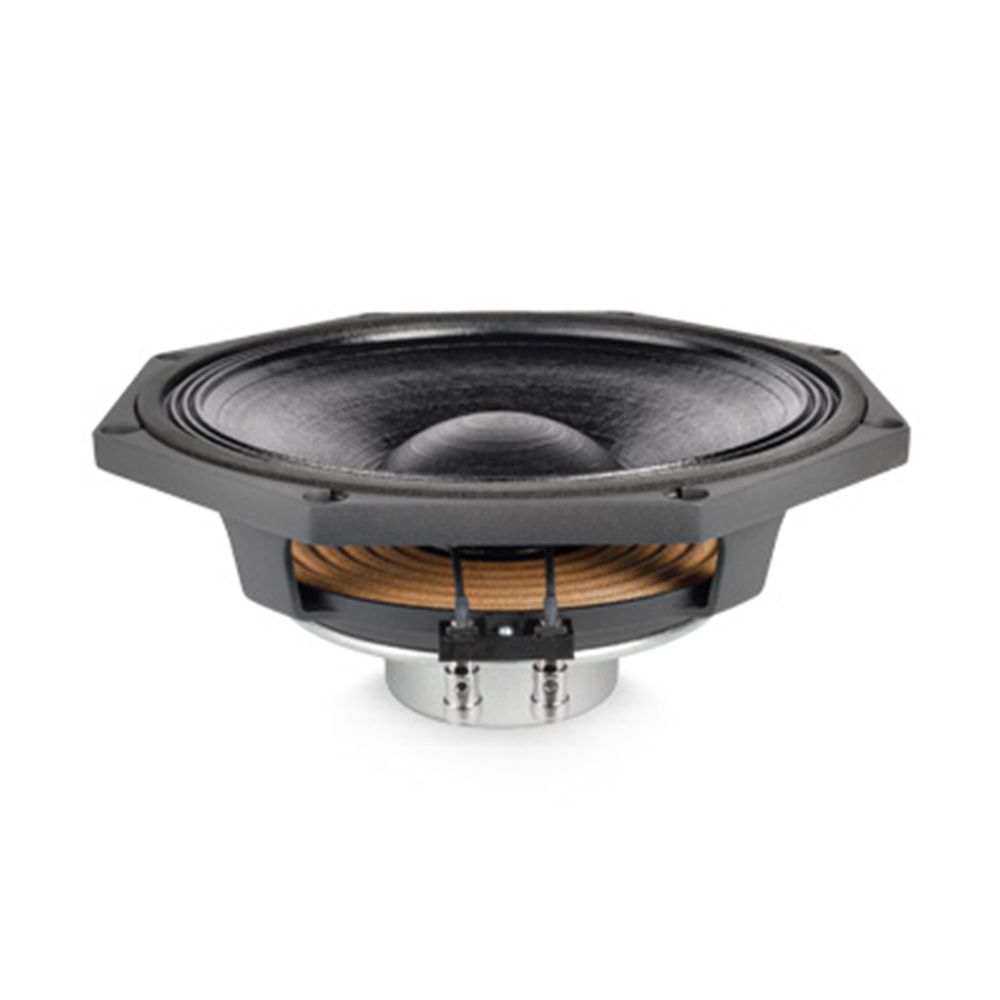

Faital Pro 8PR150 8-Inch Professional Woofer
The Faital Pro 8PR150 is an 8-inch professional woofer for speaker designs that need high sensitivity. On top of that, substantial stated power handling and a practical mid-bass-to-midrange operating window. Its neodymium slug, aluminium basket and 52 mm voice coil combine with a compact 1.5 kg format. Whatever makes for straightforward enclosure planning.
Strong Output for Speaker Designs
Firstly, with 250 W AES power handling, 500 W maximum power handling and 94 dB sensitivity, the 8PR150 is specified for speaker systems where efficient output matters. Its 8 Ohm nominal impedance and 6.6 Ohm minimum impedance give designers clear electrical figures.
Useful Working Range
Moreover, the stated 75÷3000 Hz frequency range covers the woofer’s intended operating bandwidth. Meanwhile, an Fs of 75 Hz and EBP of 140 Hz provide useful reference points for enclosure and crossover planning. The Triple Roll cone surround and 1x constant height waves spider profile complete the moving assembly.
Built for Practical Installation
An aluminum basket supports the driver structure, while the neodymium slug keeps the magnetic assembly compact. The 183 mm baffle cutout diameter, 210 mm bolt circle diameter and 93.7 mm depth make the key installation dimensions easy to check before cutting a cabinet or replacing an existing woofer.
Designed for Controlled Driver Operation
The copper cap demodulation, aluminum winding material and glass fiber former are paired with a 12.5 mm winding depth and 7.5 mm magnetic gap depth. Together, these specified construction details give speaker builders a clear picture of the motor and voice-coil arrangement when planning a suitable design.
Key Features
- Efficient 94 dB sensitivity with 250 W AES power handling
- 75÷3000 Hz operating range for woofer applications
- Compact neodymium slug magnet and aluminum basket construction
- Triple Roll cone surround with copper cap demodulation
- 8 Ohm nominal impedance for amplifier matching
