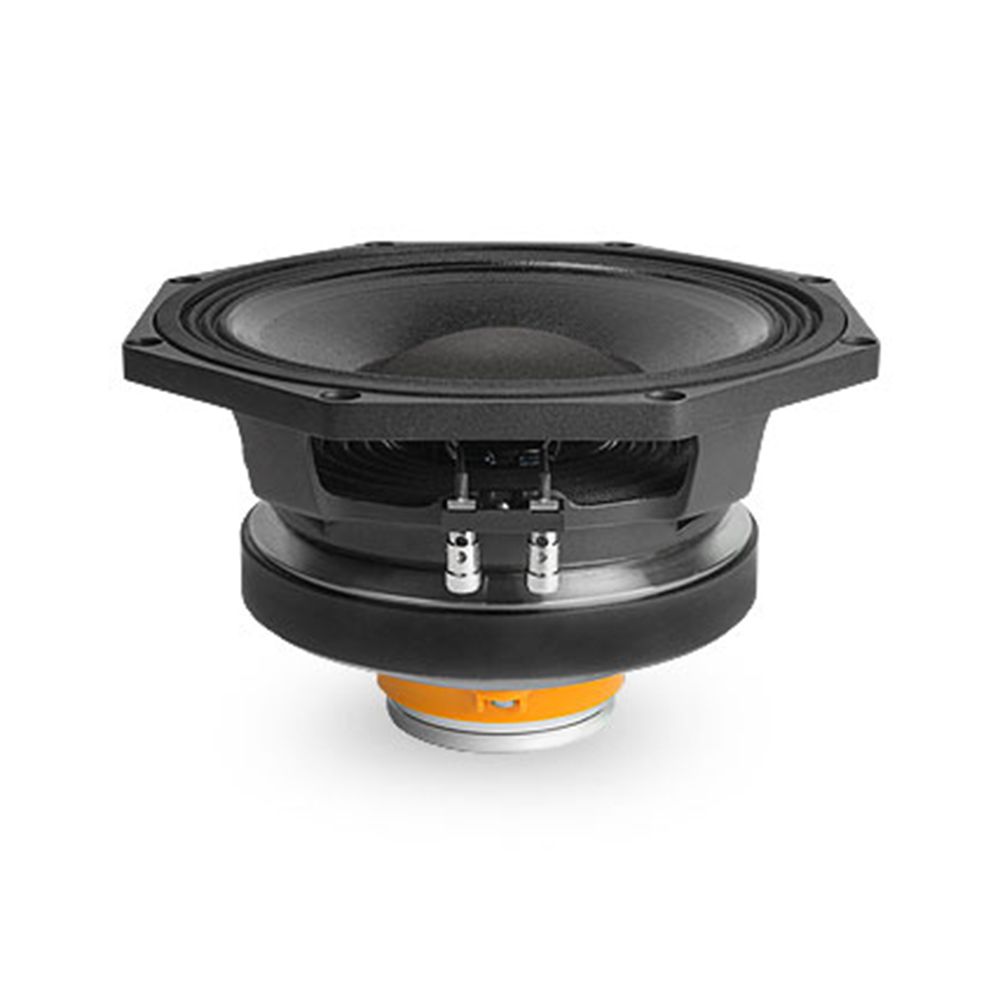

Faital Pro 8HX230 8-Inch Coaxial Loudspeaker
The Faital Pro 8HX230 combines low- and high-frequency sections in one 8-inch coaxial loudspeaker. Therefore, making it a practical choice for compact loudspeaker designs. 8 Ohm nominal impedance, dedicated LF and HF power handling, and 100° HF dispersion.
Coaxial Output in a Compact Format
Firstly, with a 200 mm nominal diameter and 126.5 mm depth, the 8HX230 keeps the low- and high-frequency sections together rather than requiring separate driver positions. The aluminium basket and 4.7 kg net weight suit projects where a defined footprint and manageable driver mass matter during enclosure design.
Defined Low- and High-Frequency Sections
Moreover, the LF section covers 70÷4000 Hz with 94 dB sensitivity, while the HF section covers 1200÷20000 Hz with 105 dB sensitivity. Its 1.7 kHz minimum HF crossover frequency gives designers a stated reference when setting the crossover within a compatible system.
Materials Chosen for the Driver Structure
Furthermore, a Triple Roll LF cone surround and 1x variable height waves spider profile form part of the low-frequency assembly. Up top, the Ketone Polymer annular diaphragm, Kapton former and Neodymium Ring magnet define the HF section. Together, these specified materials give builders a clear starting point for system development.
Plan the Enclosure with Precise Measurements
Additionally, the 183 mm baffle cutout diameter, 210 mm bolt circle diameter and 223.75/207.9 mm overall diameter make mounting plans more straightforward. The loudspeaker fills 1 dm^3 (0.035 ft^3) of net air volume, while the supplied Thiele and small parameters support enclosure calculations.
Key Features
- Combines LF and HF sections in a single 8-inch coaxial format.
- 8 Ohm nominal impedance for both LF and HF.
- 250 W LF AES power handling and 30 W HF AES power handling.
- 105 dB HF sensitivity with 100° HF dispersion.
- 183 mm baffle cutout diameter and 210 mm bolt circle diameter for enclosure planning.
