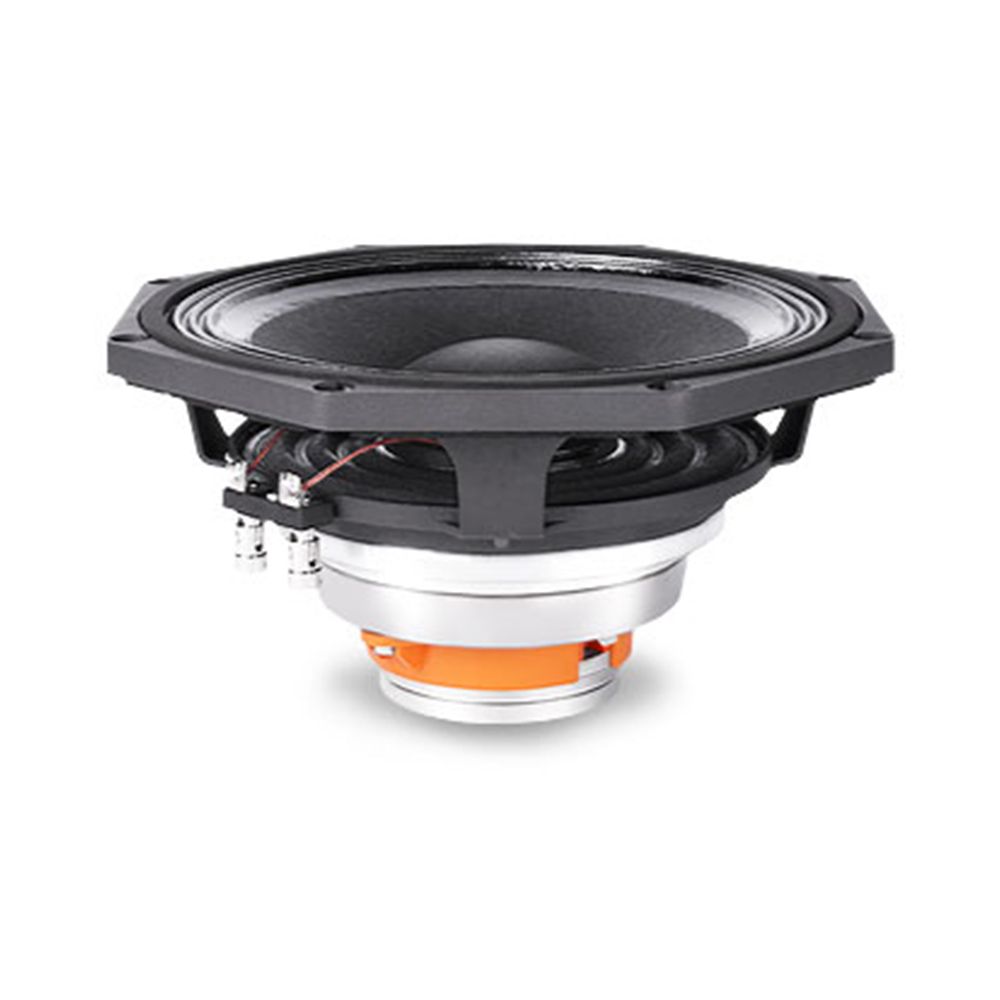

Faital Pro 8HX200 8-Inch Coaxial Loudspeaker
The Faital Pro 8HX200 brings low- and high-frequency drivers together in a coaxial loudspeaker format, giving the LF and HF sections defined roles within one 8-inch design. Separate power-handling and sensitivity ratings make the driver’s performance requirements clear, while its mounting dimensions support enclosure planning.
Coaxial clarity in one format
The LF section covers 75 to 4000 Hz, while the HF section covers 1500 to 20000 Hz. This clearly defined frequency arrangement shows how the two sections share the reproduced range. The separate LF and HF specifications also give builders useful information when assessing amplification, protection, and crossover requirements.
Ratings that guide system planning
With 250 W LF AES power handling and 30 W HF AES power handling, the 8HX200 documents different requirements for each section rather than presenting one broad rating. The LF sensitivity is 95 dB, while HF sensitivity is 107 dB, giving a clearer picture of how the driver sections are specified.
Built for measured installation work
The 200 mm nominal diameter is paired with a 183 mm baffle cutout, 210 mm bolt circle, and 110.7 mm depth. These dimensions help you check mounting space before construction. The 2.7 kg net weight, 10.7 mm flange and gasket thickness, and listed overall diameters complete the physical measurements.
Documented driver construction
A Neodymium Ring magnet, Triple Roll cone surround, aluminum winding material, Glass Fiber LF former, and Kapton HF former define the documented construction. The 65 mm LF voice coil and 37 mm HF voice coil sizes identify the separate assemblies, giving enclosure and driver planning a more complete technical reference.
Key Features
- Coaxial LF and HF arrangement keeps both driver sections within one loudspeaker format.
- Separate LF and HF ratings make system planning more straightforward.
- Defined cutout, bolt circle, depth, and overall diameter measurements support enclosure layout.
- Neodymium Ring magnet and Triple Roll cone surround are part of the specified construction.
