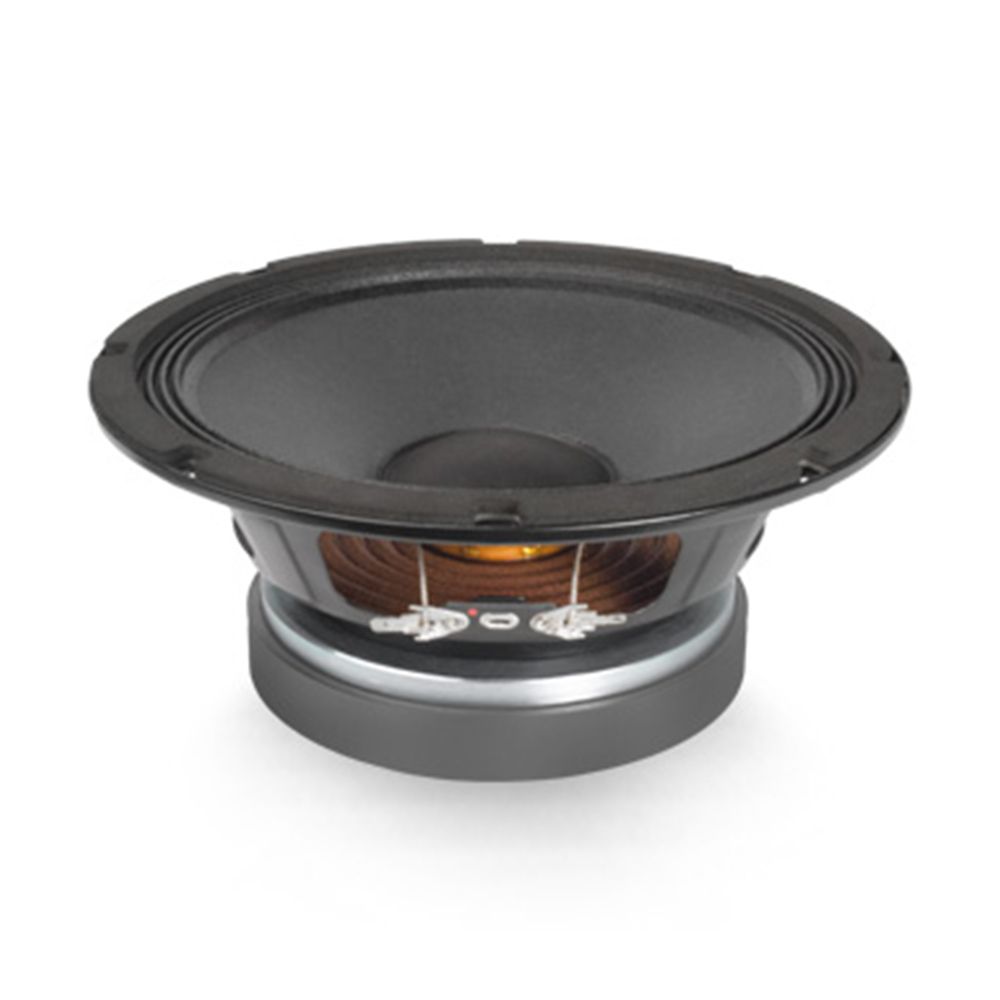

Faital Pro 8FE400 8-Inch Professional Woofer
The Faital Pro 8FE400 is a practical choice for building a compact speaker system around a dedicated professional woofer. 8-ohm load, 200 W AES handling and 100÷6000 Hz frequency range.
High Output from a Compact Frame
With 96 dB sensitivity and a nominal 200 mm diameter, this woofer is designed to produce a strong acoustic response without taking up the space of a larger driver. The 400 W maximum power handling adds useful headroom when planning a speaker design around its rated capabilities.
Built for Careful Enclosure Planning
The 183 mm baffle cutout, 209 mm overall diameter and 96 mm depth make installation measurements straightforward. A 9.4 dm^3 Vas value, 100 Hz Fs and 4.77 mm Xmax are also provided for cabinet modelling and layout decisions.
Focused Moving Assembly
The 44 mm voice coil uses Al winding and an Al former, while the Ferrite Ring magnet and 1.10 T flux density define the listed magnetic construction. A Triple Roll cone surround and 1x constant height waves spider profile complete the specified suspension details.
Practical Construction Details
A steel basket gives the driver a clearly defined mounting structure, while its 2.78 kg net weight remains manageable during installation. The 8 Ohm nominal impedance and 6.2 Ohm minimum impedance are useful reference points when matching the woofer to an amplifier and crossover design.
Key Features
- 96 dB sensitivity delivers a strong stated output level for the power applied
- 200 W AES and 400 W maximum power handling suit carefully planned professional speaker designs
- Compact 8-inch format with supplied cutout, diameter and depth measurements for installation planning
- Triple Roll cone surround, constant-height-wave spider profile, Ferrite Ring magnet and steel basket
