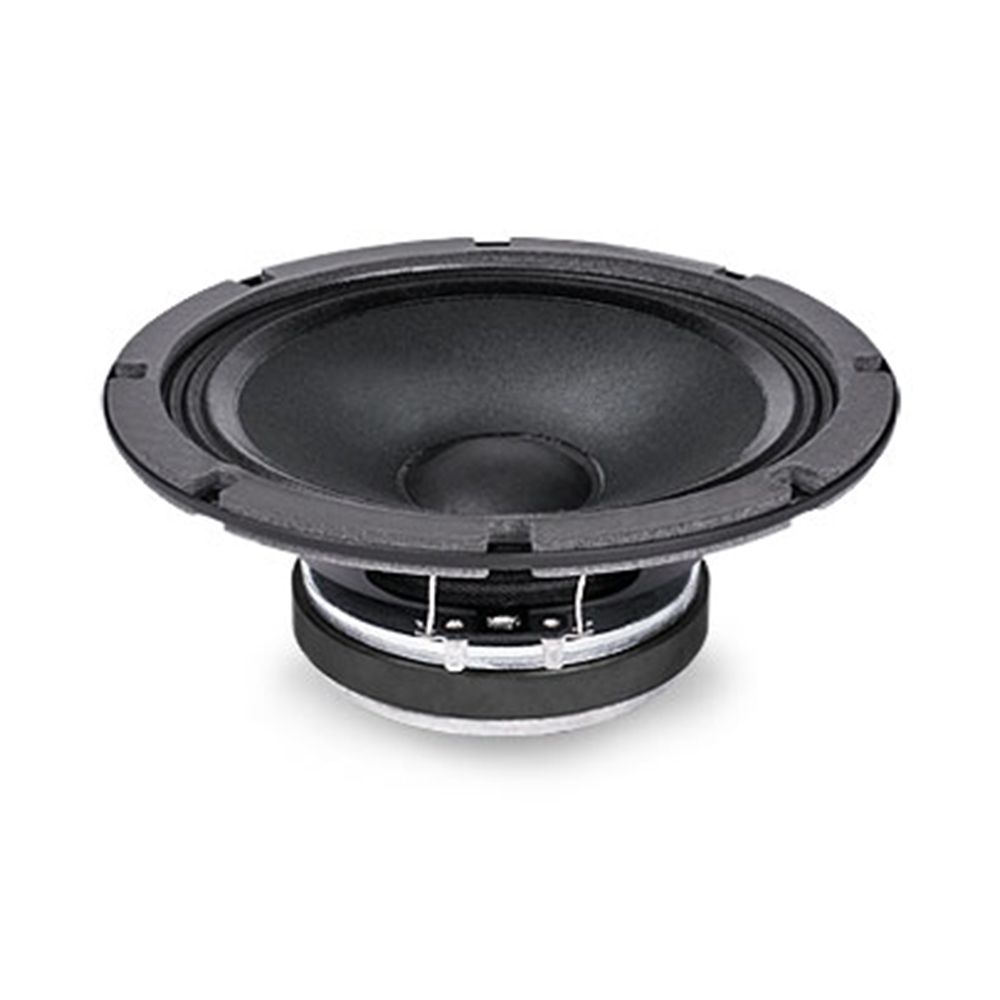

Faital Pro 8FE200 4 Ohm(Ω), 8-Inch Professional Woofer
The Faital Pro 8FE200 gives speaker builders a compact woofer platform with defined electrical, mechanical and mounting data. Its 4 Ohm impedance, 130 W AES power handling and 95 dB sensitivity make the key design figures easy to reference. Meanwhile, the stated 60÷5000 Hz frequency range defines its operating range.
Designed for Clear System Planning
A 200 mm (8 in) nominal diameter, 178 mm (7.01 in) baffle cutout and 89 mm (3.50 in) depth. The driver’s mounting requirements are straightforward to measure against a cabinet. The 209.2 mm (8.24 in) overall diameter and 196.9 mm (7.75 in) bolt circle diameter add further detail for layout work.
Built Around Practical Components
Moreover, a Ferrite Ring magnet, 1 T flux density and steel basket form the main construction details. The 37 mm (1.46 in) voice coil uses Al winding material and a Kapton former. There is the 8 mm (0.31 in) magnetic gap depth is specified alongside the assembly’s other core parameters.
Useful Data for Enclosure Modelling
The Thiele–Small parameters include Fs 80 Hz, Qes 0.47, Qms 8.7, Qts 0.45 and Vas 15.8 dm^3 (0.56 ft^3). Together with Sd 209 cm^2 (32.44 in^2), Xmax 4.62 mm and the remaining listed values, they can help builders assess the woofer during enclosure modelling.
Key Features
- 8-inch woofer format for defined cabinet layouts
- 130 W AES power handling with 260 W maximum power handling
- 95 dB sensitivity and a stated 60÷5000 Hz frequency range
- Triple Roll surround with 1x constant height waves spider profile
- Thiele–Small parameters for enclosure assessment
