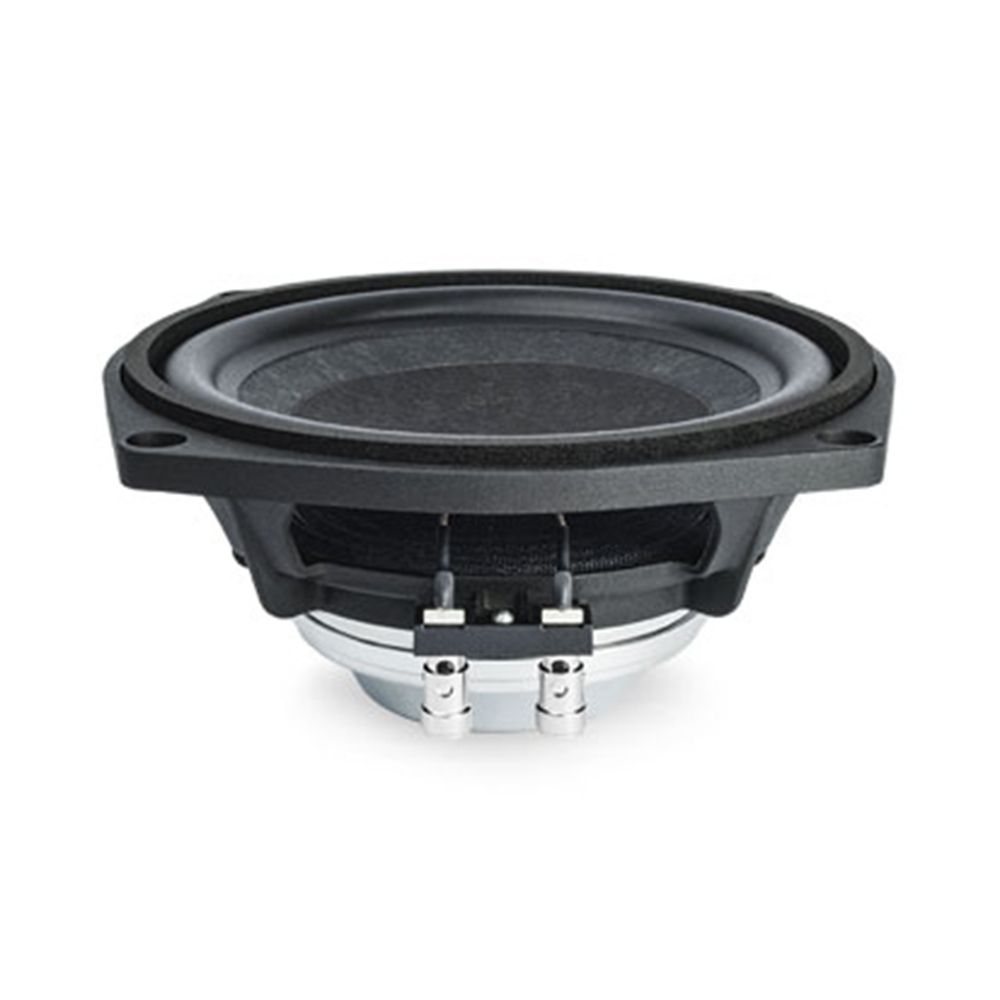

Faital Pro 6RS140 Professional Woofer (16 Ohm, 6-Inch)
The FaitalPRO 6RS140 is a compact professional woofer for loudspeaker projects that need a capable 6-inch driver without a bulky chassis. Its 200 W AES power handling, 92 dB sensitivity and 60÷6000 Hz frequency range give designers a practical foundation.
Compact Installation Footprint
Firstly, with a 160 mm nominal diameter, 186.5/162 mm overall diameter and 76 mm depth, the driver suits projects where enclosure space matters. The 147 mm baffle cutout and 172 mm bolt circle diameter give you clear mounting dimensions to work from when planning the front panel.
Efficient Magnetic Design
Moreover, a Neodymium Ring magnet, 1.5 T flux density and Aluminum basket keep the construction focused on a strong, lightweight driver package. At 1.2 kg net weight, the 6RS140 is easier to handle during cabinet assembly, while its 92 dB sensitivity supports efficient system design.
Built for Controlled Movement
The 44 mm voice coil uses Aluminum winding material on a Glass Fiber former, with a 13 mm winding depth and 6 mm magnetic gap depth. A Half Roll cone surround and 1x variable height waves spider profile complete the suspension design for controlled cone movement.
Plan the Enclosure with Confidence
The published Thiele and small parameters make the driver easier to assess during enclosure design. Fs is 65 Hz, Qts is 0.36 and Vas is 9.9 dm^3, while Xmax is 5.50 mm. These figures give speaker builders the core data needed to model the woofer in a suitable cabinet.
Key Features
- Compact 6-inch format with a 76 mm overall depth
- 200 W AES power handling and 400 W maximum power handling
- Neodymium Ring magnet with Aluminum basket
- 44 mm voice coil with Glass Fiber former
- Published Thiele and small parameters for enclosure planning
