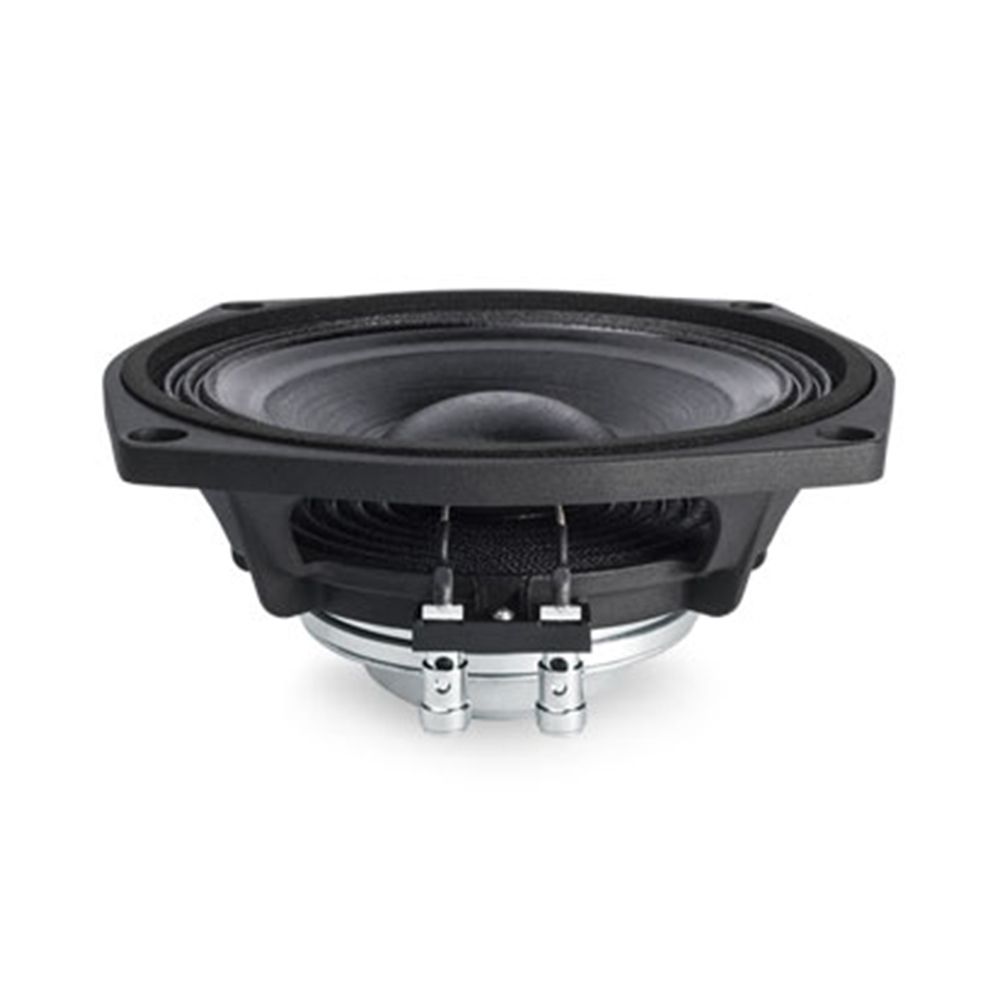

Faital Pro 6PR160 8 Ohm 6-Inch Professional Woofer
The Faital Pro 6PR160 is a professional woofer for loudspeaker projects that need defined power handling and straightforward electrical characteristics. Its neodymium ring magnet, triple roll surround and aluminium basket bring together a practical set of construction details for proper planning.
Power for Your Build
With 120 W AES power handling and 240 W maximum power handling, the woofer gives builders clear limits to consider when matching it with an amplifier and enclosure. Its 95 dB sensitivity is specified alongside those ratings. Thus, making the key output and power figures easy to assess during system planning.
Balanced Working Range
The specified 80–8000 Hz frequency range suits designs that need a woofer covering more than the lowest bass region. A 37 mm voice coil uses Al winding material and a glass fiber former, while the 1.6 T flux density and aluminum ring demodulation keep the technical design details clearly defined.
Construction for Enclosure Planning
The 160 mm nominal diameter, 73 mm depth and 1 kg net weight give enclosure builders useful physical information before cutting or mounting. A neodymium ring magnet keeps the magnet type clear, while the triple roll cone surround and aluminum basket specify the main visible construction choices.
Key Features
- 8 Ohm nominal impedance for clear electrical matching
- 120 W AES power handling with 240 W maximum power handling
- Neodymium ring magnet and aluminum basket construction
- Triple roll cone surround
- Defined enclosure parameters including Fs, Vas, Qts and Sd
