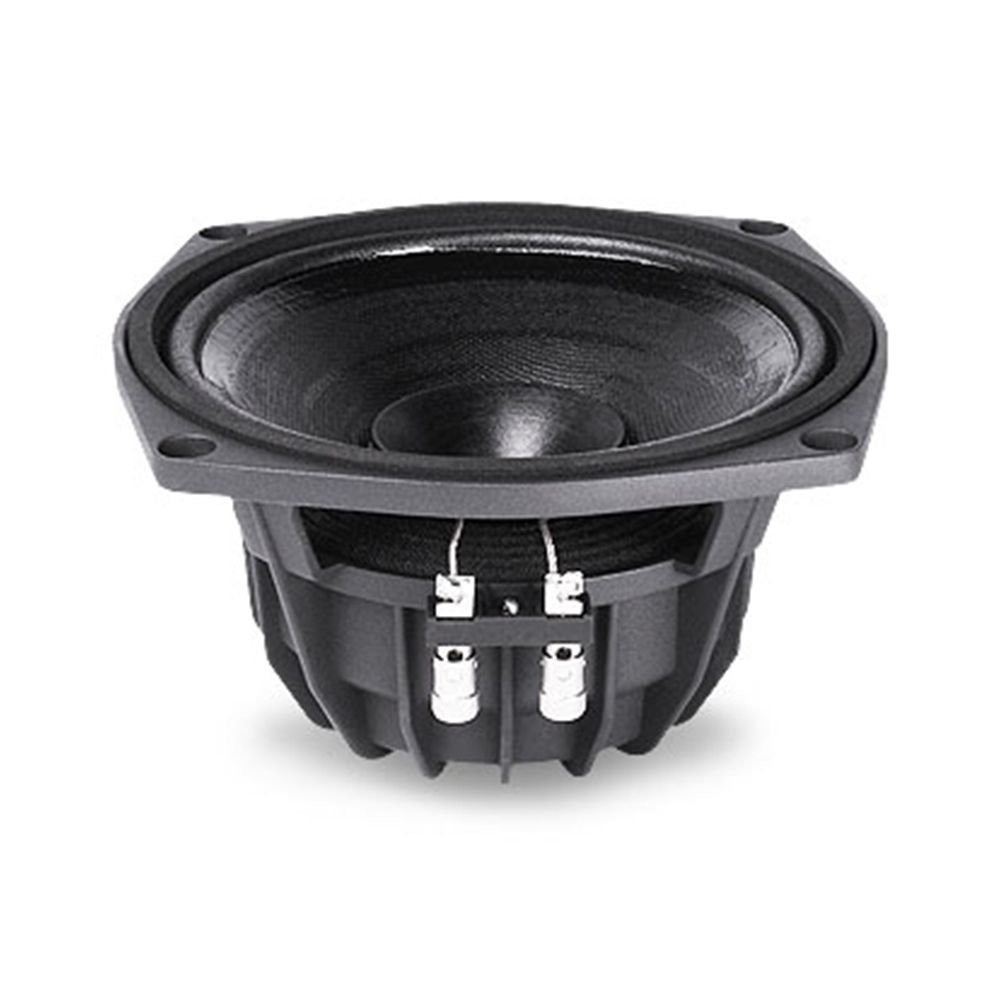

Faital Pro 6PR150 8 Ohm, 6-Inch Professional Woofer
The Faital Pro 6PR150 8 Ohm woofer gives custom loudspeaker projects a compact professional driver. It possesses strong output potential and useful modelling data. Its neodymium ring magnet, aluminium basket and 150 W AES power handling make it a focused choice when enclosure space and driver weight both matter.
Compact Format, Clear Mounting Data
Firstly, at 160 mm nominal diameter, the driver suits builds where a smaller woofer format is important. The 147 mm baffle cutout, 172 mm bolt circle diameter and 89 mm depth give installers concrete measurements for checking panel layout, clearance and mounting hardware before construction begins.
Efficient Driver Construction
A neodymium ring magnet keeps the motor design compact, while the aluminium basket provides the main structural frame. The 52 mm voice coil uses copper winding material and a glass fiber former, with a 1.35 T flux density and 6 mm magnetic gap depth specified for the motor assembly.
Power and System Modelling Information
With 150 W AES power handling, 300 W maximum power handling and 97 dB sensitivity, the 6PR150 offers clearly defined figures for system planning. Its 100–5000 Hz frequency range and Thiele and small parameters, including Vas, Qts and Xmax, give designers data to work from when developing an enclosure.
Suspension and Physical Details
The Half Roll cone surround and 1x constant height waves spider profile define the suspension layout, while the 0.6 dm^3 net air volume filled by the loudspeaker is useful when accounting for the driver inside an enclosure. At 1.4 kg, it keeps the physical assembly relatively manageable during installation.
Key Features
- Compact 6-inch professional woofer format for custom loudspeaker construction
- Neodymium ring magnet and aluminium basket construction
- Defined 150 W AES and 300 W maximum power handling ratings
- Detailed Thiele and small parameters for enclosure design work
