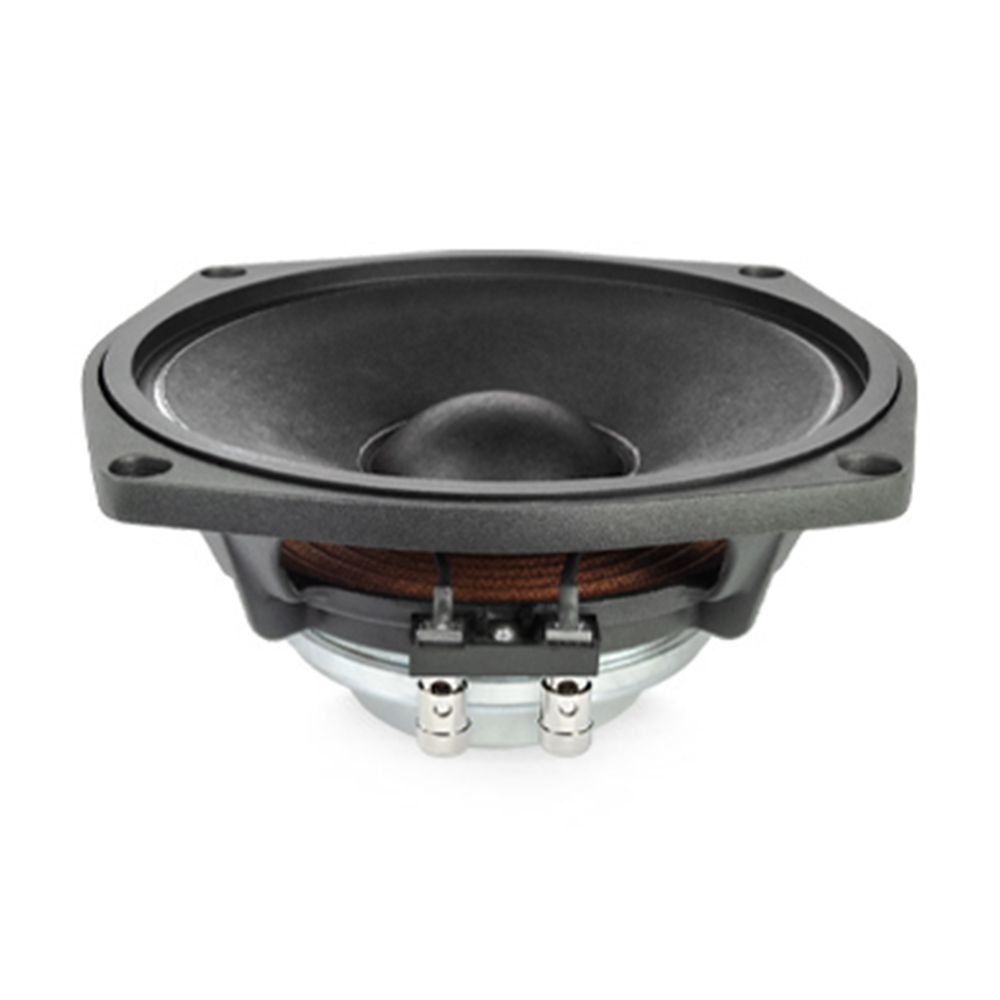

Faital Pro 6PR130 8 Ohm 6-Inch Professional Woofer
The Faital Pro 6PR130 8 Ohm combines a compact 160 mm format with 200 W AES power handling. For loudspeaker designs where space and capability both matter. Its 101 dB sensitivity and neodymium ring magnet round out a practical driver platform for building focused, high-output systems.
Compact Format, Serious Capacity
Firstly, with a 160 mm (6 in) nominal diameter, this professional woofer suits compact enclosure layouts. AES power handling is rated at 200 W, while maximum power handling reaches 400 W, giving system designers clear figures to work from when planning a suitable loudspeaker build.
Efficient Output for System Design
The 101 dB sensitivity supports strong acoustic output from suitable system designs, while the stated 200–5000 Hz frequency range defines the driver’s operating band. Together, these figures make it easier to assess how the woofer can fit into a wider loudspeaker design.
Lightweight Magnetic Assembly
A neodymium ring magnet keeps the net weight to 0.82 kg (1.8 lb), making the driver easier to handle during enclosure assembly. The 44 mm (1.7 in) voice coil diameter adds a clear construction reference for projects that need to balance a compact physical format with substantial power handling.
Plan the Cutout with Confidence
Installation measurements are straightforward to check before cabinet work begins. The overall diameter is 186.5/162 mm, the required baffle cutout is 147 mm, the bolt circle diameter is 172 mm, and the depth is 74 mm, helping builders confirm the available mounting space.
Key Features
- Compact 6-inch format for space-conscious loudspeaker designs
- 200 W AES and 400 W maximum power handling
- 101 dB sensitivity with a stated 200–5000 Hz frequency range
- Neodymium ring magnet and 0.82 kg net weight
- Clear mounting measurements for enclosure planning
