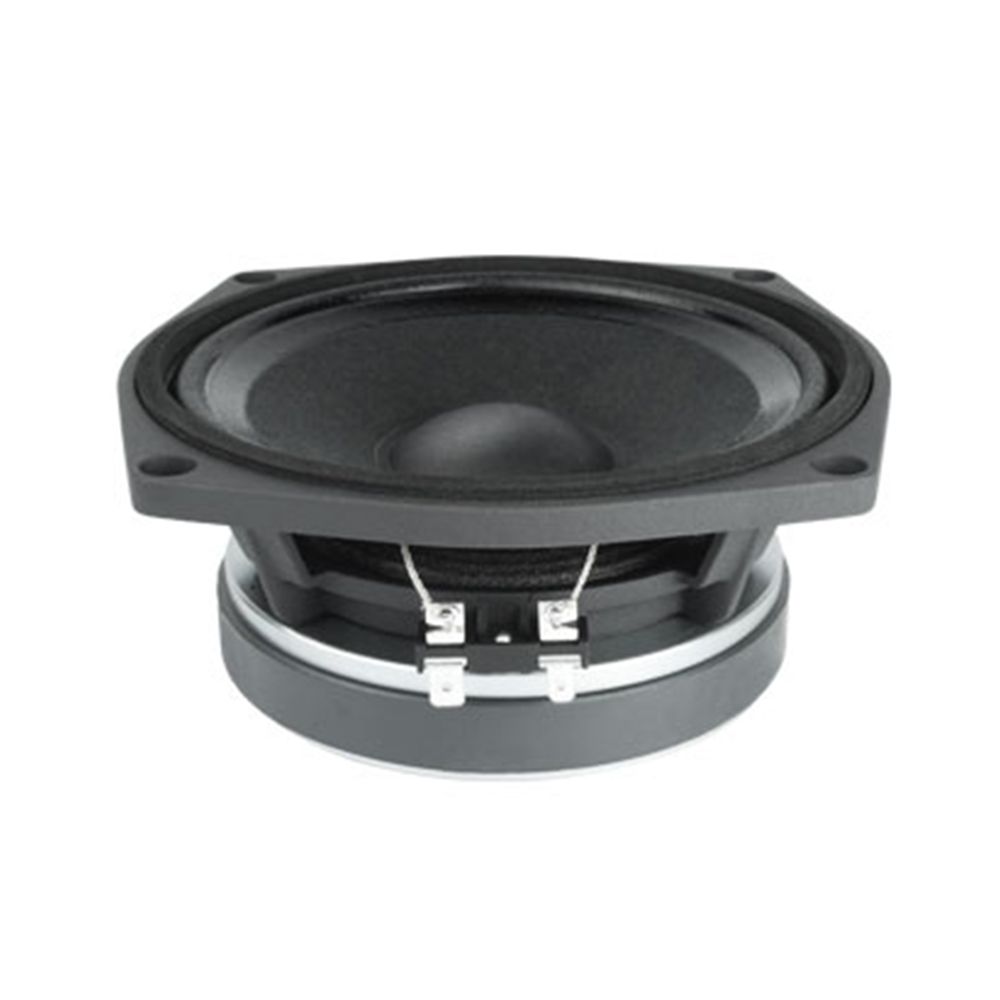

Faital Pro 6PR110 8 Ohm (Ω), 6-inch Professional Midrange Speaker
Faital Pro 6PR110 (8Ω) gives compact loudspeaker builds a focused midrange driver with 150 W AES power handling and 96 dB sensitivity. 160 mm format, 100÷6000 Hz frequency range and 8 Ohm nominal impedance.
Strong Output From a Compact Format
With 96 dB sensitivity (1W/1m), the 6PR110 can produce strong acoustic output from the power supplied to it. The 150 W AES rating and 300 W maximum power handling give designers clear figures to work with. Specifically, when planning a loudspeaker system around this 6-inch driver.
Focused Midrange Coverage
Moreover, the 100÷6000 Hz frequency range is suited to the central part of a loudspeaker system’s response, covering the midrange where vocals and many instruments carry their character. A 37 mm voice coil, Al winding material and Kapton former complete the driver’s specified moving assembly.
Built for Cabinet Design
The ferrite ring magnet and aluminum basket give the 6PR110 a defined construction for custom cabinet work. Its 147 mm baffle cutout diameter, 80 mm depth and 172 mm bolt circle diameter provide the key installation measurements needed when planning the enclosure and mounting layout.
Useful Parameters for System Planning
Thiele and small parameters including Fs, Qes, Qms, Qts and Vas give speaker builders the data needed to assess enclosure choices. The 0.7 dm^3 net air volume filled by the loudspeaker and Half Roll cone surround add further details for working through the mechanical design.
Key Features
- 6-inch nominal diameter for compact custom loudspeaker cabinets
- 150 W AES power handling with 300 W maximum power handling
- 96 dB sensitivity for strong output from supplied power
- 100÷6000 Hz frequency range for midrange reproduction
- Aluminum basket with ferrite ring magnet
- 8 Ohm nominal impedance for system design
