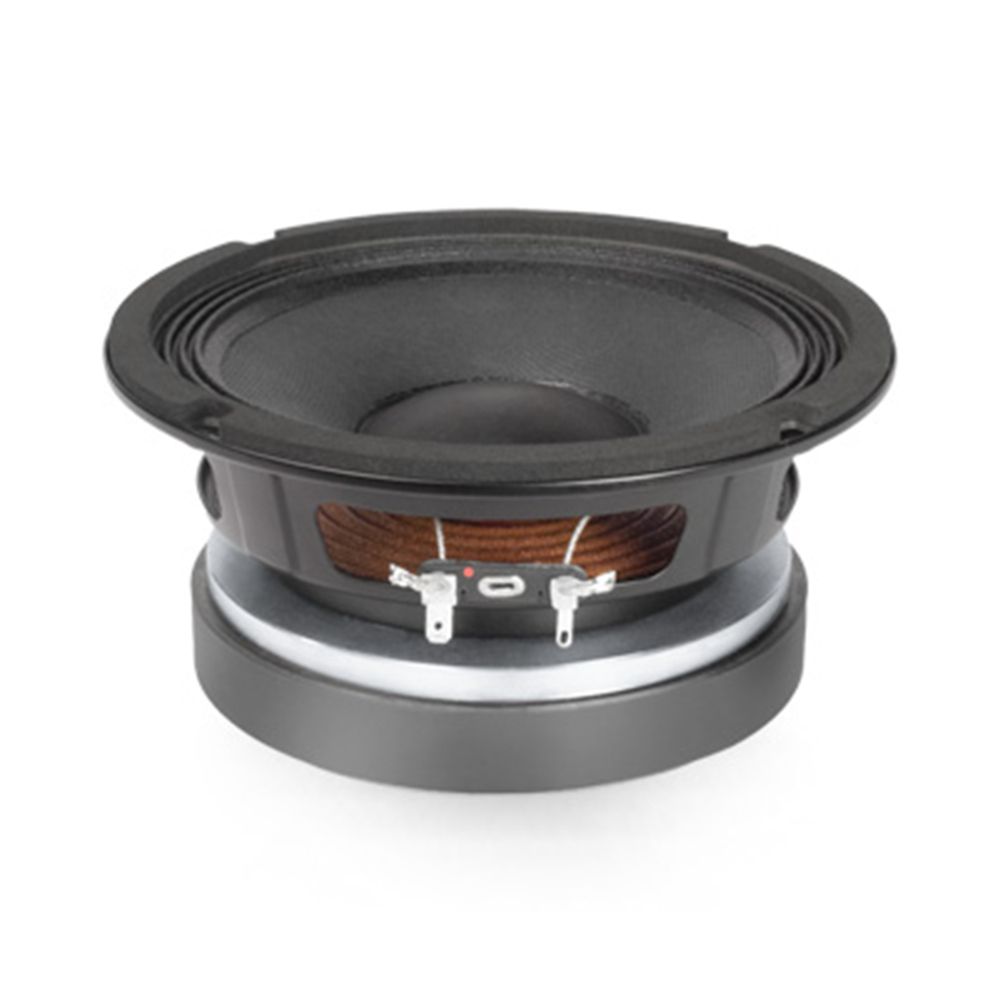

Faital Pro 6FE400 8 Ohm (Ω), 6-Inch Professional Woofer
The Faital Pro 6FE400 is a compact professional woofer for speaker builds. It’s where clear physical dimensions and defined electrical parameters matter. 6-inch format, 8 Ohm impedance, steel basket, ferrite ring magnet, and 44 mm aluminium voice coil.
Compact Dimensions, Straightforward Installation
With a 160 mm nominal diameter, 166.5 mm overall diameter, 146 mm baffle cutout, and 84 mm depth, the 6FE400 is easy to assess against available cabinet space. The 155 mm bolt circle and 7 mm flange and gasket thickness add the mounting details needed before cutting or fitting the driver.
Power Handling for Speaker Builds
Moreover, AES power handling is rated at 200 W, with maximum power handling specified at 400 W. Alongside 94 dB sensitivity and a minimum impedance of 6.2 Ohm, these figures give system builders clear reference points when selecting amplification and planning an enclosure around the woofer.
Defined Materials and Suspension
The 44 mm voice coil uses aluminium winding and an aluminium former, while the magnetic structure combines a ferrite ring magnet with 1.10 T flux density. A Triple Roll cone surround and one constant-height wave spider profile complete the stated suspension details for a clearly specified mechanical design.
Parameters for More Informed Enclosure Choices
The supplied Thiele and small parameters, including Qts 0.36, Vas 5.0 dm^3, Sd 141 cm^2, and Xmax 4.77 mm, give enclosure builders useful figures for evaluating the driver. Its stated 100÷7000 Hz frequency range further describes where the woofer is intended to operate.
Key Features
- Compact 6-inch format with clearly defined mounting dimensions
- 200 W AES power handling and 400 W maximum power handling
- High 94 dB sensitivity for the stated driver format
- Aluminium voice coil and former with ferrite ring magnet
- Triple Roll cone surround and constant-height wave spider profile
