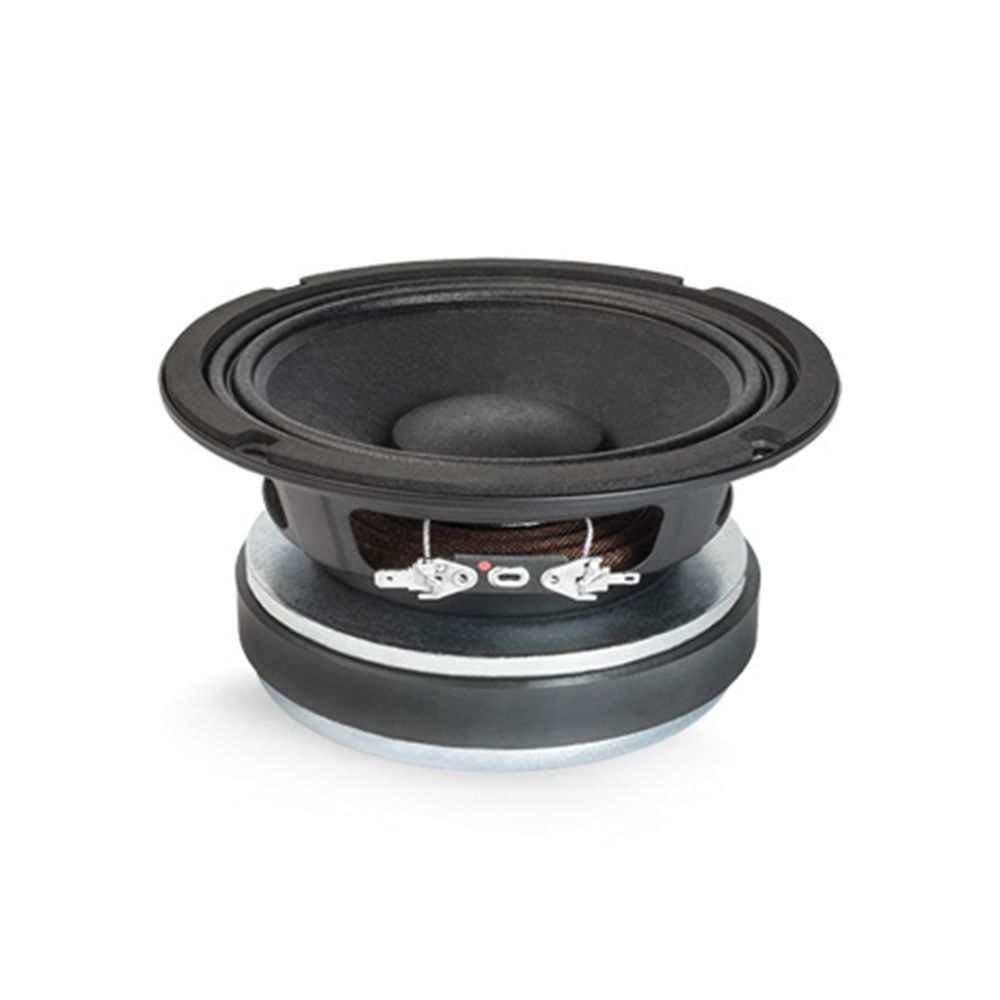

Faital Pro 6FE300 8 Ohm, 6-Inch Professional Woofer
The Faital Pro 6FE300 8 Ohm woofer gives speaker builders a compact driver for low- and mid-frequency sections, with strong efficiency and detailed mechanical data for planning. Its steel basket, ferrite ring magnet and M-Roll cone surround create a practical foundation for custom loudspeaker projects.
Built for Efficient Output
With 94 dB sensitivity measured at 1W/1m, the driver is designed to produce useful acoustic output from a measured input level. The 175 W AES rating and 350 W maximum power handling also give builders clear figures to consider when matching the woofer to an amplifier and wider speaker design.
Compact Mechanical Format
The 160 mm nominal diameter suits compact cabinet layouts, while the 146 mm baffle cutout and 81 mm depth make front-panel and internal-clearance planning more precise. A 2.8 kg net weight is also straightforward to account for when working out the finished enclosure’s overall load.
Useful Driver Design Data
For enclosure modelling, the published Thiele-Small parameters include Fs, Qes, Qms, Qts, Vas and Sd. The 0.6 dm³ net air volume filled by the loudspeaker indicates the driver’s occupied volume, while the 208 Hz EBP adds another reference point for design calculations.
Key Features
- Low- and mid-frequency coverage across the specified 90÷4000 Hz range
- Steel basket, ferrite ring magnet and M-Roll cone surround
- Glass Fiber former and Al winding material
- Defined mounting dimensions for cabinet and baffle planning
- Thiele-Small parameters for enclosure modelling
