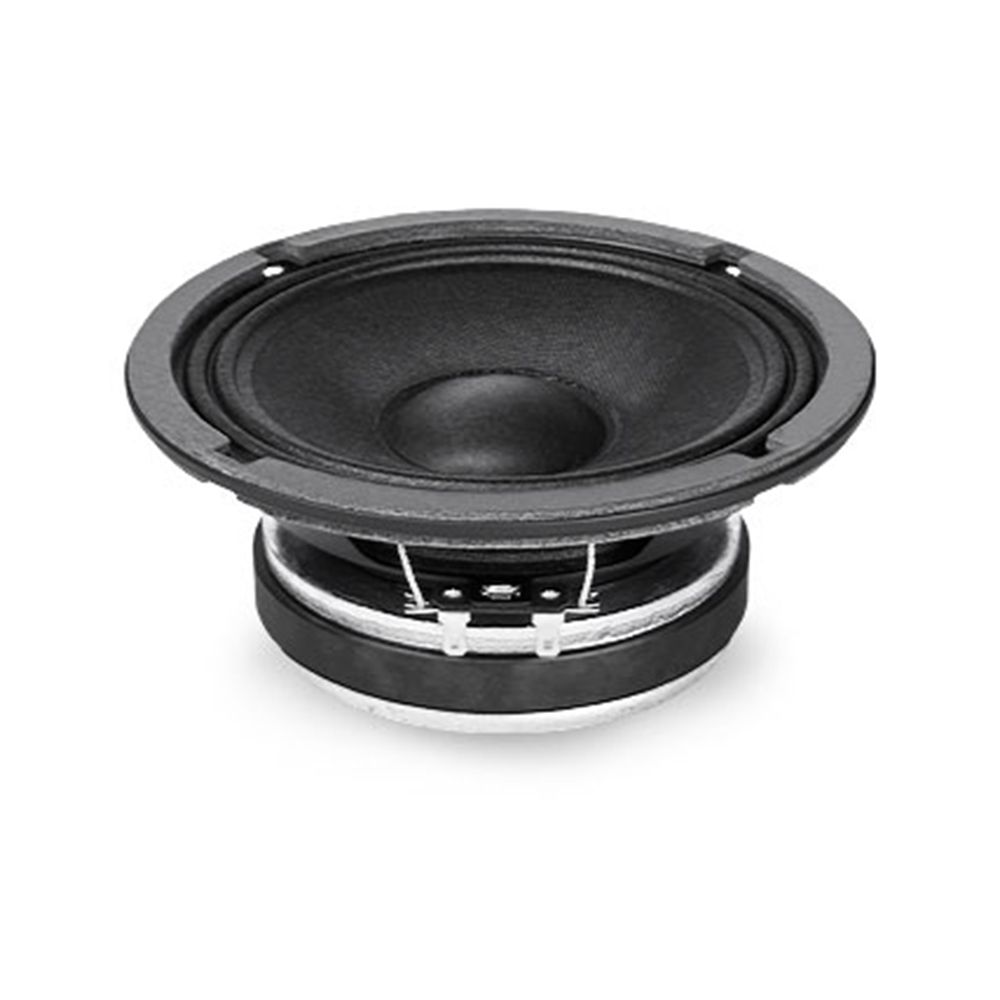

Faital Pro 6FE200 4 Ohm (Ω), 6-Inch Professional Woofer
The Faital Pro 6FE200 is a compact professional woofer with a 160 mm nominal diameter and a 4 Ω nominal impedance. Its stated power-handling figures, 95 dB sensitivity and 85–6000 Hz frequency range give builders clear reference points. Meanwhile, the mounting dimensions make fit checking part of the planning process.
Plan the fit before installation
Firstly, the 167.4 mm overall diameter, 144 mm baffle cutout and 77 mm depth make the physical requirements easy to check against an enclosure or baffle. A 154 mm bolt circle and 8 mm flange and gasket thickness add further installation reference points. On the other hand, the 2 kg net weight is useful when planning the finished assembly.
Work from clear driver parameters
Thiele/Small parameters including Fs, Qes, Qms, Qts, Vas and Sd give enclosure designers the technical information needed for their calculations. The 0.45 dm³ net air volume filled by the loudspeaker is also specified, keeping the driver’s physical contribution visible during enclosure planning.
Built around defined materials
The woofer uses a steel basket, ferrite ring magnet, aluminium winding material and a Kapton former. Its 37 mm voice coil, 11.9 mm winding depth, 8 mm magnetic gap depth and 1 T flux density document the main construction details without adding unnecessary complexity to the build process.
Choose the right reference figures
With 130 W AES power handling, 260 W maximum power handling and a 3.6 Ω minimum impedance, this driver gives system builders specific electrical and power figures to work from. The M-Roll cone surround, constant-height wave spider and 4.62 mm Xmax complete the key mechanical data.
Key Features
- 160 mm nominal diameter with clearly defined mounting measurements
- Steel basket and ferrite ring magnet construction
- 130 W AES power handling and 260 W maximum power handling
- Thiele/Small parameters for enclosure planning
