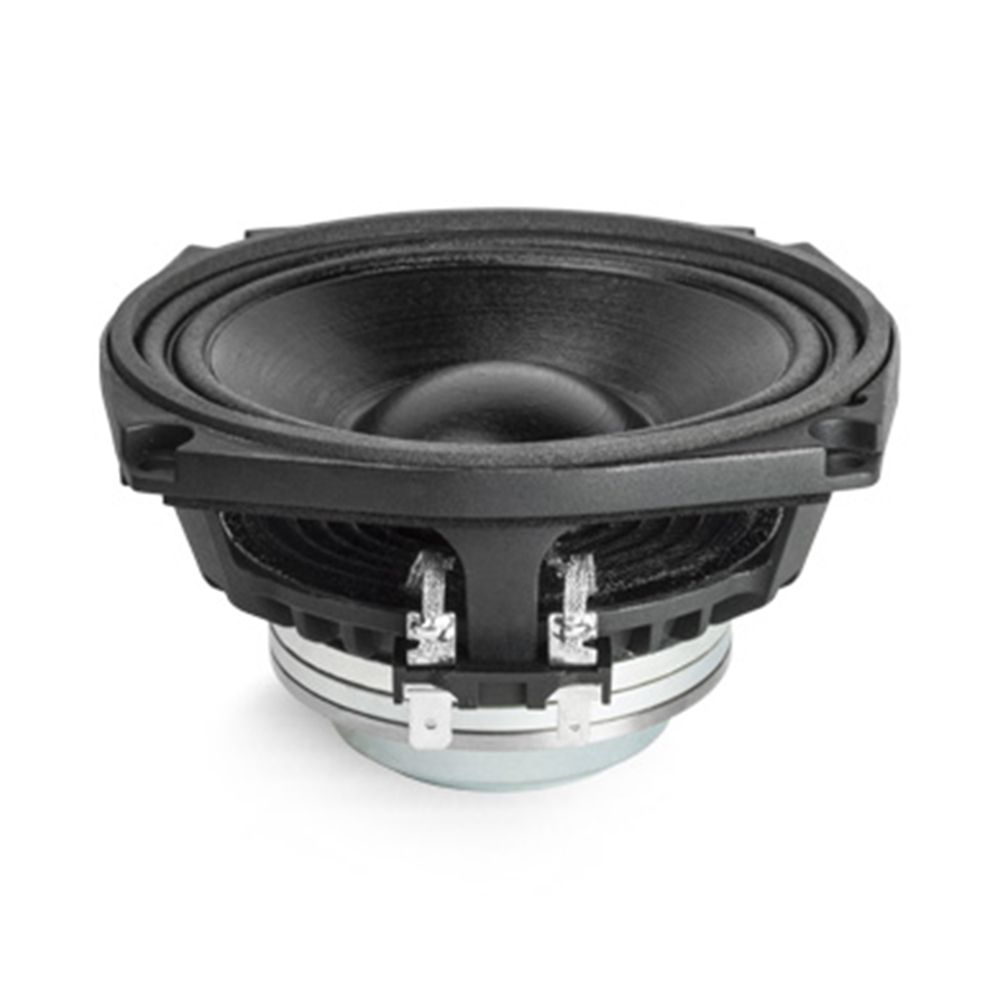

Faital Pro 5PR160 5-Inch Professional Woofer (8 Ohm)
The Faital Pro 5PR160 is a compact professional woofer for speaker builds. Especially ones that need a practical balance of output, power handling and manageable dimensions. Its 5-inch format combines an aluminium basket, neodymium ring magnet, M-Roll cone surround and 8-ohm design for straightforward enclosure planning.
Compact Dimensions, Clear Mounting References
Firstly, at 74 mm deep, the 5PR160 is easy to account for when planning a compact cabinet. The supplied 150/128.2 mm overall diameter, 139 mm bolt circle and 118 mm baffle cutout give builders precise physical references. Meanwhile, the 0.85 kg net weight keeps the driver manageable during assembly.
Power Handling for Serious Builds
Moreover, AES power handling of 120 W and maximum power handling of 240 W give designers clear electrical limits to work around. The 37 mm voice coil uses an Al winding on a Kapton former. Also, the 1.4 T flux density and aluminium demodulation ring define the listed motor construction.
Designed for Enclosure Planning
Furthermore, the 100÷6500 Hz frequency range, 90 Hz Fs and 3.7 dm^3 Vas sit alongside the Qes, Qms and Qts values to inform enclosure calculations. With 85.2 cm^2 Sd and 5.10 mm Xmax also specified, the driver gives builders a detailed set of parameters for modelling a cabinet around its intended design.
Balanced Mechanical Construction
The aluminium basket, M-Roll cone surround and 1x constant height waves spider profile form a clearly documented mechanical package. A neodymium ring magnet keeps the magnetic assembly compact, while the stated 0.25 dm^3 net air volume filled by the loudspeaker can be included in enclosure calculations.
Key Features
- Compact 5-inch format for speaker-building projects with limited front-panel space
- 8-ohm nominal impedance for designs built around that electrical load
- Neodymium ring magnet and aluminium basket construction
- Thiele and small parameters supplied for enclosure modelling
