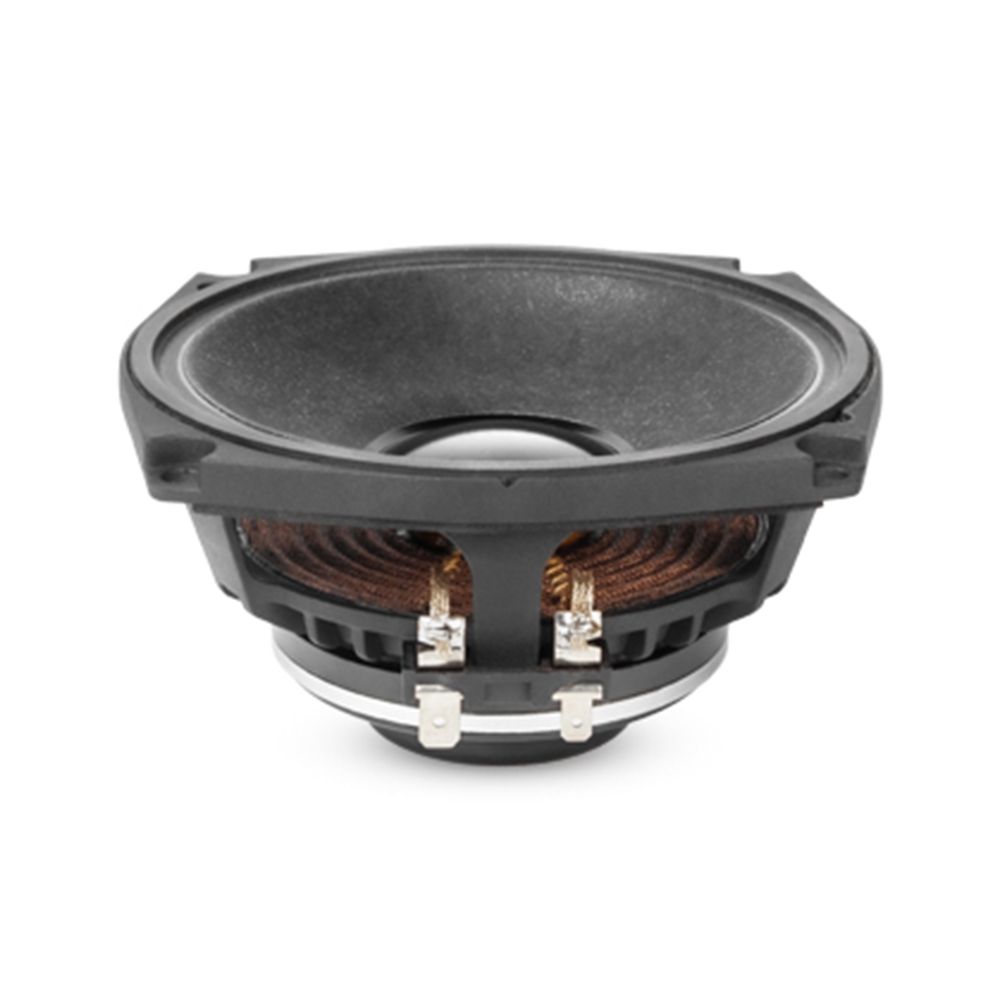

Faital Pro 5PR120 5-Inch 8 Ohm Professional Woofer
The Faital Pro 5PR120 is a compact professional woofer for speaker designs that need strong output from a small chassis. Its 100 dB sensitivity, 100 W AES power handling and 300÷5000 Hz frequency range give designers a capable driver for focused low and mid-frequency duties.
Compact Fit, Practical Installation
Firstly, with a 130 mm (5 in) nominal diameter, 150/128.2 mm overall diameter and 69 mm depth, the 5PR120 suits space-conscious cabinet work. The 118 mm baffle cutout and 139 mm bolt circle diameter provide clear measurements for planning the mounting layout before installation.
Output for Focused Speaker Designs
Moreover, a sensitivity of 100 dB (1W/1m) combines with 100 W AES power handling and 200 W maximum power handling. That balance gives speaker designers useful output capability in a small format. Meanwhile, the 8 Ohm nominal impedance identifies the electrical load for system planning.
Built for Controlled Driver Movement
Furthermore, the 32 mm voice coil uses an aluminium winding material on a Kapton former, with an 8.2 mm winding depth and 6 mm magnetic gap depth. A raised planar cone surround and 1x constant height waves spider profile complete the driver’s moving assembly.
Lightweight Magnetic Structure
Additionally, an aluminium basket and neodymium ring magnet keep the construction focused on a compact driver format. The 0.82 kg net weight is practical when cabinet weight matters, while the 1.7 T flux density and 5.9 Ohm minimum impedance add useful design data for enclosure and crossover work.
Key Features
- Compact 5-inch format for space-conscious speaker designs
- 100 dB sensitivity for strong output from the driver’s rated input
- 100 W AES power handling with 200 W maximum power handling
- 300÷5000 Hz frequency range for focused low and mid-frequency duties
- Aluminum basket and neodymium ring magnet construction
