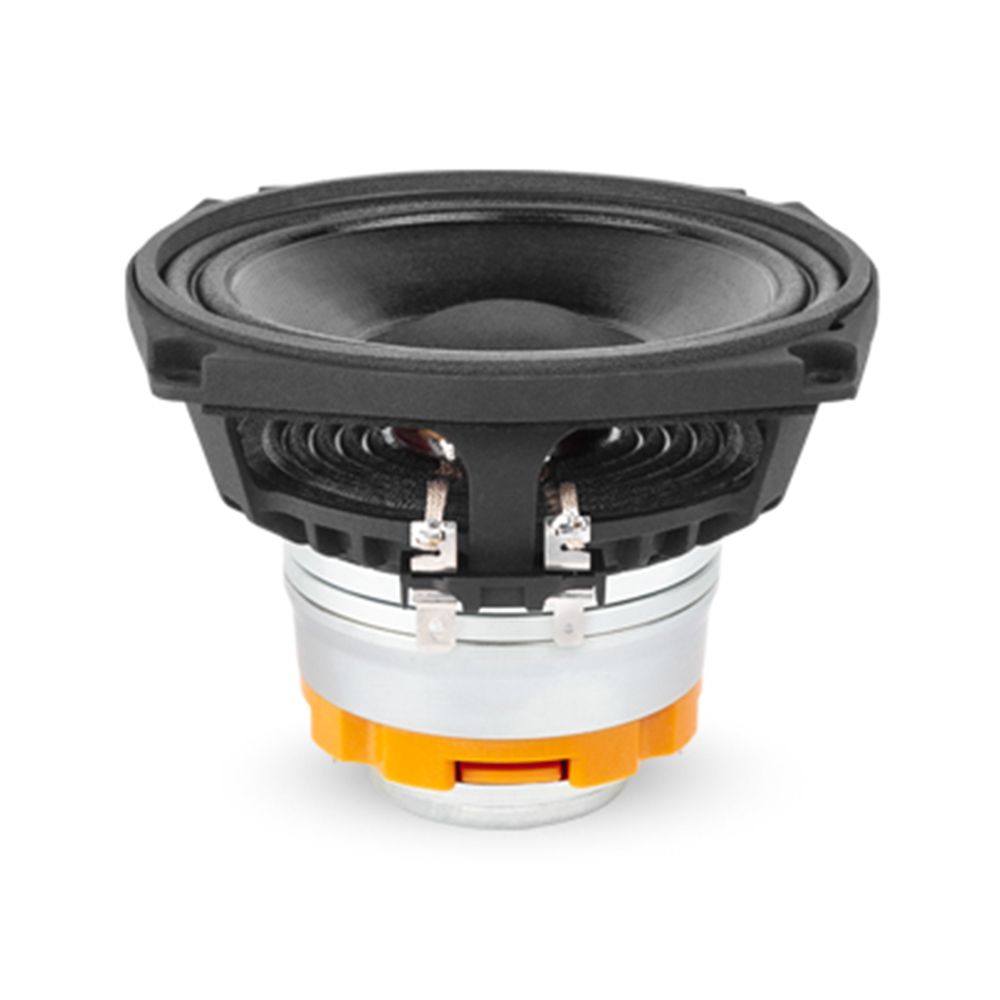

Faital Pro 5HX140 5-Inch Coaxial Loudspeaker (8 Ohm)
Faital Pro 5HX140 brings LF and HF reproduction together in a 5-inch coaxial loudspeaker. Consequently, giving builders a neatly integrated driver for compact speaker projects. Its separate 8 Ohm sections, neodymium ring magnets and aluminium LF basket create a focused foundation for enclosure design without taking up unnecessary space.
One Driver, Two Frequency Sections
Firstly, the coaxial layout combines a low-frequency section covering 100÷8000 Hz with an HF section reaching 1500÷18000 Hz. With 91 dB LF sensitivity and 101 dB HF sensitivity, the two sections have clearly defined characteristics. Meanwhile, the HF section’s 1.7 kHz minimum crossover frequency and 90° dispersion angle support considered system setup.
Built for Controlled Speaker Projects
Moreover, an Aluminum LF basket, Aluminium Ring demodulation and M-Roll cone surround give the low-frequency section a purposeful mechanical layout. The 1x constant height waves spider profile and 0.34 dm^3 net air volume filled by the loudspeaker are also specified. Thus, giving enclosure builders concrete details to account for during cabinet work.
Compact Installation Footprint
Installation is easier to plan with the defined 118 mm baffle cutout diameter, 139 mm bolt circle diameter and 97 mm depth. The 150/128.2 mm overall diameter and 9 mm flange and gasket thickness further clarify the mounting space, while the 1.22 kg net weight keeps the driver practical to handle during assembly.
Materials Tuned to Each Section
The LF section uses a 37 mm aluminium voice coil, Kapton former and Neodymium Ring magnet. Above it, the HF section uses a 25 mm aluminium voice coil, Kapton former, Neodymium Ring magnet and Ketone Polymer dome diaphragm. Together, these specified materials give each frequency section its own defined construction.
Key Features
- Coaxial LF and HF sections in a 5-inch loudspeaker format
- Separate 8 Ohm nominal impedance specifications for LF and HF
- Neodymium Ring magnets and an Aluminum LF basket
- Ketone Polymer HF dome diaphragm with 90° dispersion
- Defined cutout, bolt circle and depth dimensions for enclosure planning
