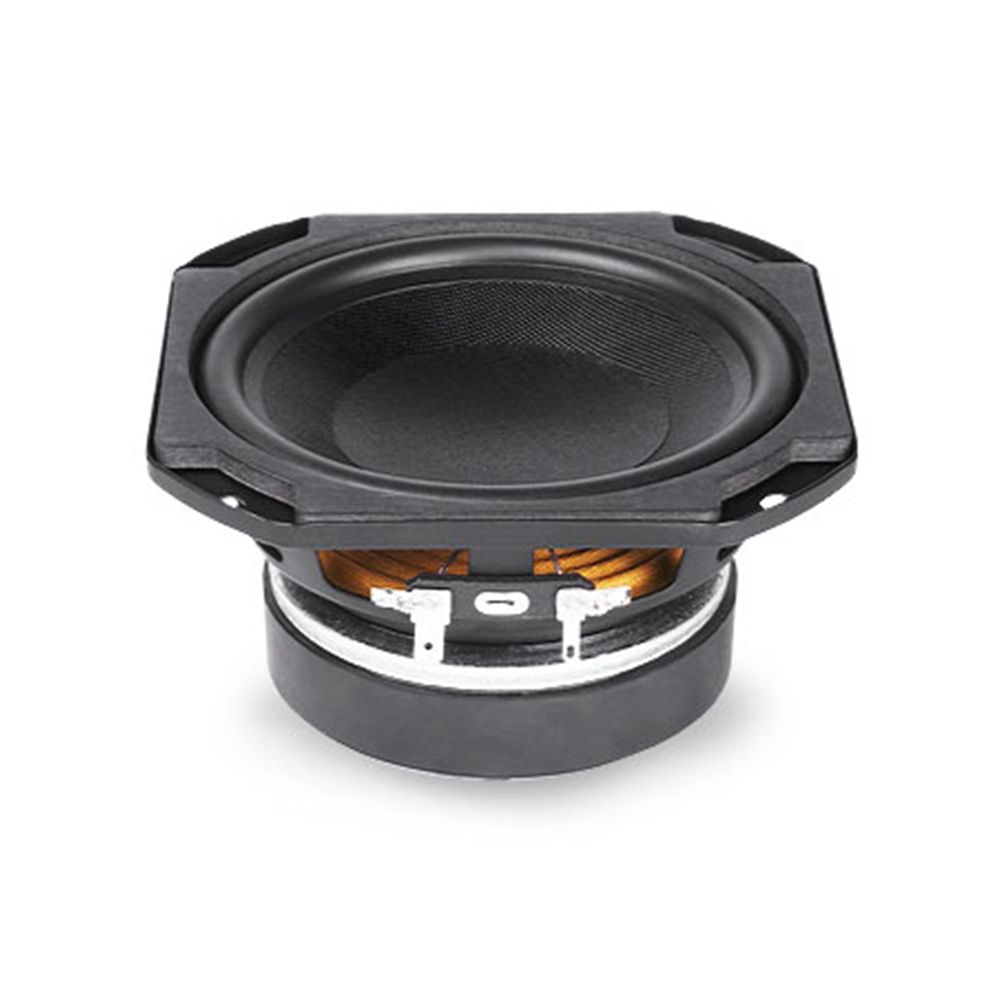

Faital Pro 5FE120 16 Ohm, 5-Inch Professional Woofer
The Faital Pro 5FE120 is a professional woofer for loudspeaker projects where a capable driver needs to fit a compact format. Its 5-inch nominal diameter, 80 W AES power handling and 63÷6300 Hz frequency range give builders clear reference points.
Compact Format, Straightforward Planning
With an overall diameter of 144.8/124.5 mm and a depth of 71.5 mm, the driver offers useful dimensions for enclosure planning. The 114 mm baffle cutout and 133 mm bolt circle diameter also make panel layout easier to check before construction. Meanwhile, the 1.1 kg net weight keeps the driver manageable to handle.
Balanced Output for Audio Projects
The 89 dB sensitivity gives a clear indication of the driver’s acoustic output level for a given input. Its 63÷6300 Hz frequency range covers a useful span for a professional woofer, while 80 W AES and 160 W maximum power handling define the stated power limits for system planning.
Built for Defined Driver Parameters
A ferrite ring magnet, 32 mm voice coil and aluminum ring demodulation form the core construction. The listed Fs of 65 Hz, Qts of 0.51, Vas of 6.6 dm^3 and Xmax of 5.25 mm give speaker builders practical data for assessing enclosure requirements and driver behaviour.
Choose the Required Impedance
This product is the 16-ohm version, while the 5FE120 is also available in 4-ohm and 8-ohm variants. That clearly defined choice makes it easier to match the driver to the intended speaker design. The minimum impedance is specified as 13.2 Ohm for the 16-ohm version.
Key Features
- Professional woofer in a compact 5-inch format
- 80 W AES power handling with 160 W maximum power handling
- 89 dB sensitivity and 63÷6300 Hz frequency range
- Ferrite ring magnet with aluminum ring demodulation
- 16-ohm version, with 4-ohm and 8-ohm variants also available
