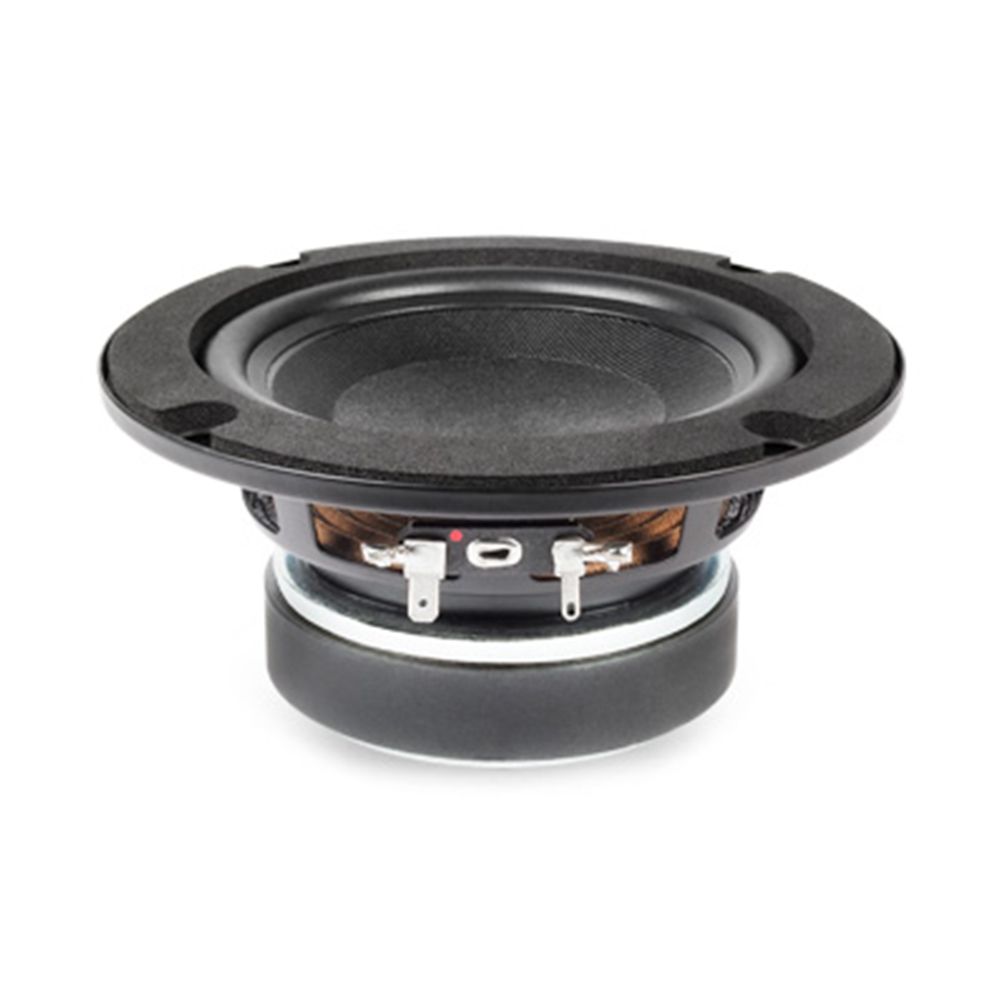

Faital Pro 5FE105 8 Ohm (Ω), 5-Inch Professional Woofer
The Faital Pro 5FE105 is a compact professional woofer. For speaker designs that need a 130 mm driver footprint and clearly defined electrical and mechanical parameters. Its 80 W AES power handling, 88 dB sensitivity, and 63÷6300 Hz frequency range give builders practical figures for future work.
Compact Fit for Speaker Builds
Firstly, with a 130 mm (5 in) nominal diameter, 146.4 mm overall diameter, and 114 mm baffle cutout, the 5FE105 suits compact cabinet layouts. Moreover, its 72.8 mm depth and 1.12 kg net weight are also useful when checking available space and the physical demands of a build.
Power Handling for System Design
Furthermore, the driver is rated for 80 W AES power handling. Also, 160 W maximum power handling and 88 dB sensitivity at 1W/1m. These figures give speaker designers clear reference points. Especially, when matching amplification and planning a system around the woofer’s specified operating range.
Purpose-Built Driver Construction
A 32 mm voice coil uses Cu winding material and a Kapton former, while the ferrite ring magnet and 1 T flux density define the magnetic assembly. The steel basket, half-roll cone surround, and 1x constant height waves spider profile complete the specified construction.
Parameters for Enclosure Planning
The published Thiele and Small parameters include Fs of 65 Hz, Qts of 0.45, Vas of 5.7 dm^3 (0.20 ft^3), and Sd of 84 cm^2 (13.07 in^2). Together with Xmax of 5.25 mm, these values give builders the data needed for enclosure calculations.
Key Features
- Compact 5-inch format for space-conscious speaker designs
- 80 W AES and 160 W maximum power handling
- 88 dB sensitivity for straightforward system planning
- Cu voice coil winding with Kapton former
- Steel basket and ferrite ring magnet construction
