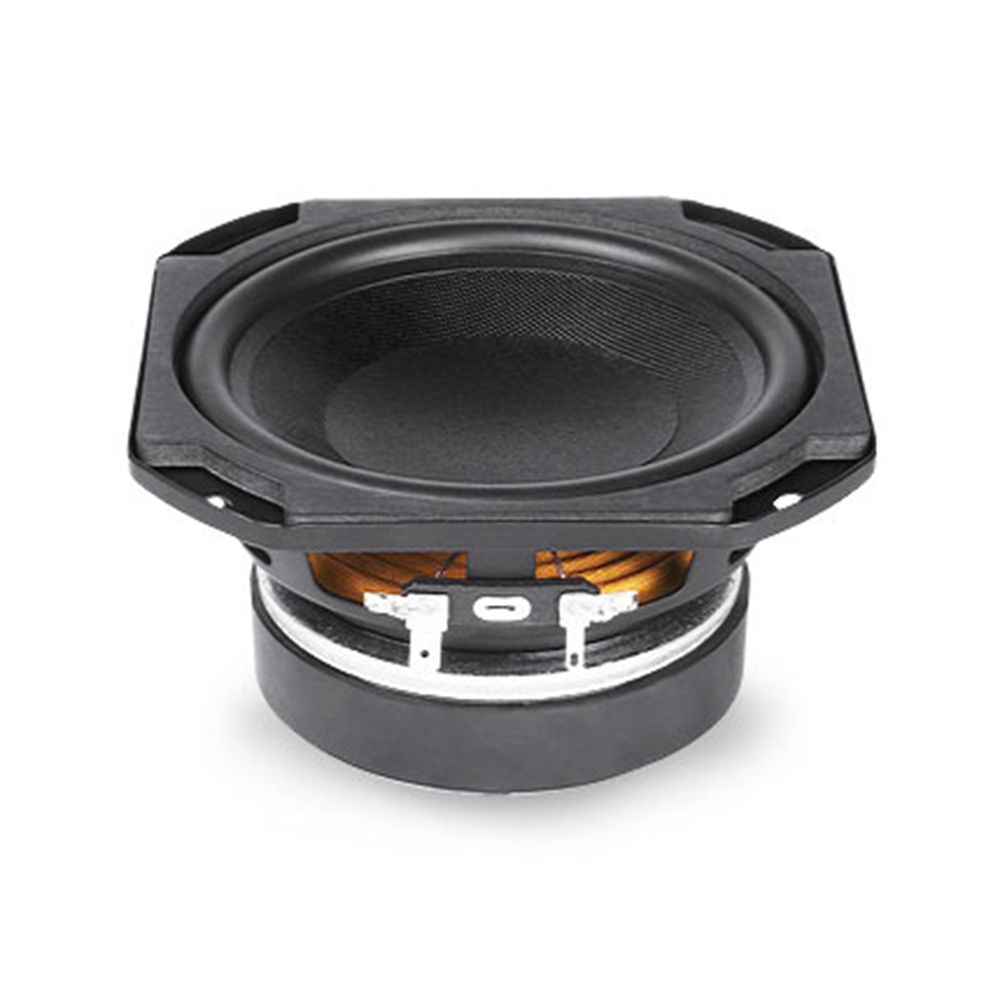

Faital Pro 5FE100 4 Ohm, 5-Inch Professional Woofer
Faital Pro 5FE100 gives loudspeaker builders a compact 5-inch woofer platform with clearly defined electrical, mechanical and enclosure-design data. Its 80 W AES power handling, steel basket and ferrite ring magnet provide a solid foundation for custom speaker projects, while the published Thiele-Small parameters make enclosure calculations easier to approach.
Plan the enclosure with confidence
Enclosure work is easier when the key parameters are available in one place. Fs, Qes, Qms, Qts, Vas, Sd and the other published Thiele-Small values give builders the reference data needed to assess cabinet designs and model the driver’s expected behaviour before construction.
Designed for practical installation checks
The mounting details are clearly defined, including the baffle cutout diameter, bolt circle diameter and depth. That makes it easier to verify the physical fit before cutting a cabinet. At 1.1 kg, the driver’s net weight is also useful when accounting for handling and the finished enclosure’s overall weight.
Built around proven materials
A steel basket supports the driver’s structure, while the ferrite ring magnet, Cu winding material and Kapton former material are specified as part of the construction. The half roll cone surround and 1x constant height waves spider profile complete a clearly documented mechanical design.
Power and response for custom projects
With 80 W AES power handling, 160 W maximum power handling and 87 dB sensitivity (1W/1m), the 5FE100 gives builders clear figures for planning amplification and system levels. Its specified 63–6300 Hz frequency range further defines where the woofer sits within a larger loudspeaker design.
Key Features
- 5-inch format for custom loudspeaker construction
- Published Thiele-Small parameters for enclosure calculations
- 80 W AES and 160 W maximum power handling
- Steel basket with ferrite ring magnet
- Clearly defined mounting dimensions for fit checks
