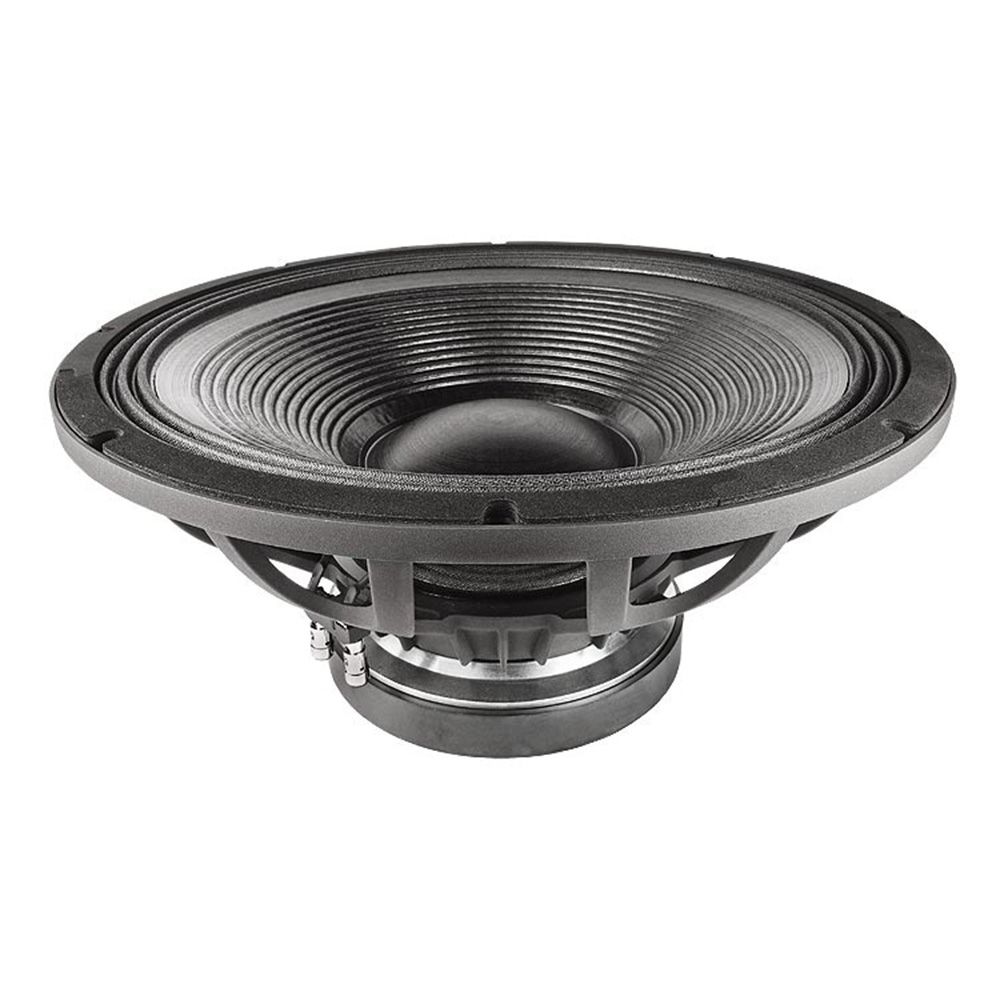

Faital Pro 18HP1030 4 Ohm 18 Inch Ferrite Subwoofer

$799
SKU: FA-18HP1030-4 Category:

Experience deep, powerful bass with the Faital Pro 18HP1030 4 Ohm 18 Inch Ferrite Subwoofer, built for professional PA and high-output sound systems. Custom high-output bass bins optimized for 4 Ohm loading or parallel configurations.

PID: 7990

Out of stock

Order Online for Delivery
or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)
Out of stock
Web
Online Out of stock
Updating stores stocks...
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

Faital Pro 18HP1030 4 Ohm 18 Inch Ferrite Subwoofer

Unleash deep, powerful bass with the 18HP1030 4 Ohm 18 Inch Ferrite Subwoofer. Engineered for professional sound environments that demand exceptional impact and reliability. This subwoofer delivers clean low frequencies that captivate audiences.

Powerful Performance for Professional Use

Firstly, this subwoofer handles 1200 W AES power and peaks at 2400 W maximum power. Therefore, ensuring it meets the needs of high-output systems. Its 18-inch size and 4 Ohm impedance make it ideal for installations requiring robust bass and flexible wiring options.

Advanced Engineering for Clear, Deep Bass

Equipped with a 100 mm voice coil and an aluminum demodulation ring, this driver delivers precise bass down to 35 Hz with outstanding sensitivity of 98 dB. The strong ferrite magnet with a flux density of 1.1 T ensures a powerful motor force that maintains consistent performance under demanding conditions.

Durable Construction for Reliable Operation

Built with an aluminum basket and triple roll cone surround, the 18HP1030 offers mechanical stability and durability for continuous high-power use. Its design supports professional PA systems, festival rigs, nightclubs, and custom high-output bass bins requiring 4 Ohm configurations.

Key Features

  • Professional touring and installed PA subwoofer systems
  • Concert and festival sound reinforcement
  • High-power club and nightclub woofers
  • Cinema and large venue sub-bass
  • Custom high-output bass bins optimized for 4 Ohm loading or parallel configurations
  • Professional touring and installed PA subwoofer systems
  • Concert and festival sound reinforcement
  • High-power club and nightclub woofers
  • Cinema and large venue sub-bass
  • Custom high-output bass bins optimized for 4 Ohm loading or parallel configurations

Nominal Diameter: 460 mm (18 in)
Overall Diameter: 460 mm (18.11 in)
Bolt Circle Diameter: 440 mm (17.32 in)
Baffle Cutout Diameter: 421 mm (16.57 in)
Depth: 208.35 mm (8.20 in)
Flange and Gasket Thickness: 13.7 mm (0.54 in)
Net Weight: 12.1 kg (26.7 lb)
Nominal Impedance: 4 Ohm
Minimum Impedance: 3.9 Ohm
AES Power Handling (1): 1200 W
Maximum Power Handling (2): 2400 W
Sensitivity (1W/1m): 98 dB
Frequency Range: 35÷1600 Hz
Voice Coil Diameter: 100 mm (4 in)
Winding Material: Cu
Former Material: Glass Fiber
Winding Depth: 28.9 mm (1.14 in)
Magnetic Gap Depth: 12 mm (0.47 in)
Flux Density: 1.1 T
Magnet: Ferrite Ring
Basket Material: Aluminum
Demodulation: Aluminum Ring
Cone Surround (3): Triple Roll
NET Air Volume filled by Loudspeaker: 6.5 dm^3 (0.230 ft^3)
Spider Profile: 2x non-adjacent symmetrical constant height waves

For more information, please visit the manufacturer's website.
