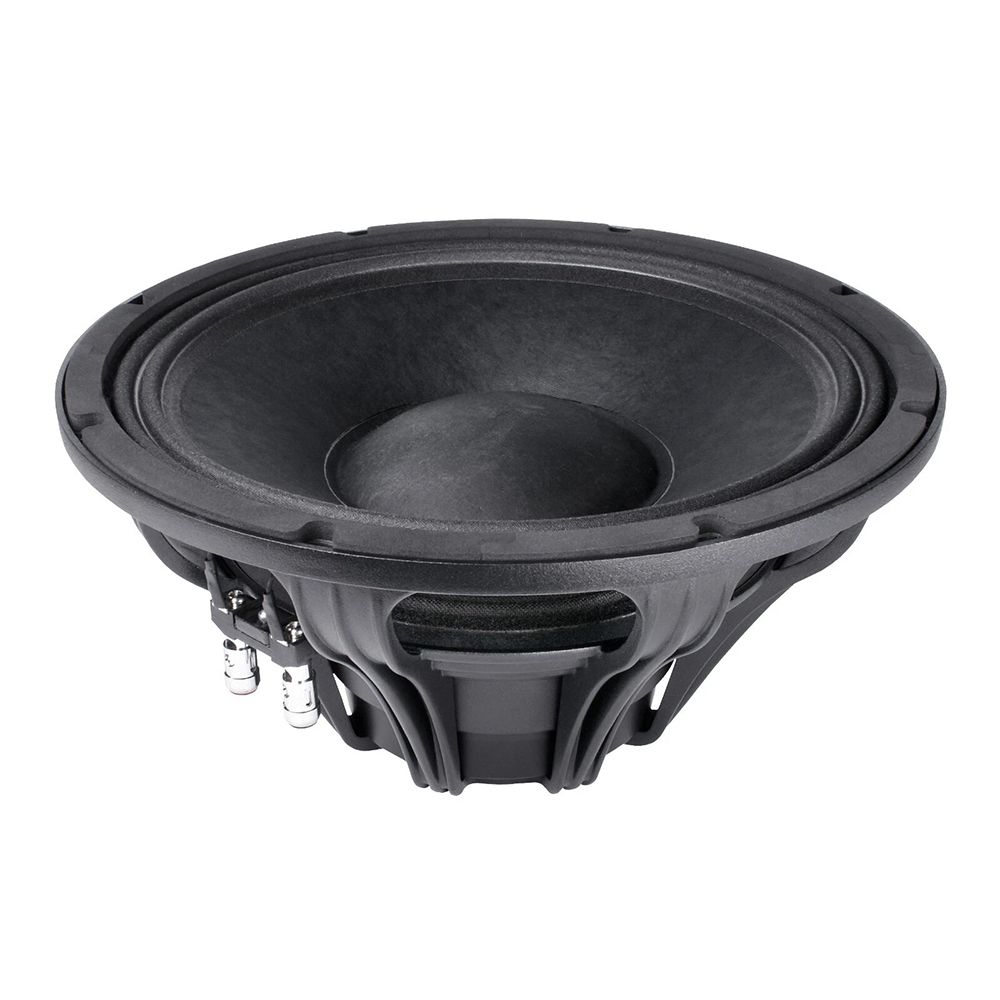

Faital Pro 15HP1020 Neodymium Speaker (15-Inch, 8 Ohm)
The Faital Pro 15HP1020 8 Ohm is a 15-inch neodymium speaker built around clear power, sensitivity and fit data. Its 700 W AES rating, 40–4000 Hz frequency range and 6.2 kg net weight give cabinet builders practical information for construction.
Power and Bandwidth for System Planning
With 700 W AES power handling and 1400 W maximum power handling, the driver offers clearly defined figures for amplifier and system planning. The 98 dB sensitivity (1W/1m) and 40–4000 Hz frequency range add useful reference points when assessing suitable design.
Neodymium Magnet and Aluminium Basket
Moreover, the Neodymium Slug magnet and aluminum basket define the main construction. Meanwhile, the 100 mm (4 in) voice coil uses an aluminum winding and glass fiber former. Also, a 1.3 T flux density and 12 mm magnetic gap depth round out the supplied motor details for technical evaluation.
Controlled Suspension Details
A Triple Roll cone surround works with the spider profile of 2x non-adjacent symmetrical constant height waves. These construction details describe the driver’s suspension layout, while the 9.00 mm Xmax and 16 mm Xdamage figures give designers useful excursion references when reviewing the supplied parameters.
Check the Cabinet Fit First
The 356 mm baffle cutout diameter, 374 mm bolt circle diameter and 181.3 mm depth help check physical fit before cabinet construction. The 393 mm overall diameter and 13.7 mm flange and gasket thickness add further reference points, while the 3.9 dm³ net air volume filled by the loudspeaker belongs to the driver itself.
Key Features
- High power-handling figures for amplifier and cabinet planning
- Neodymium Slug magnet with an aluminum basket
- Triple Roll cone surround and defined spider profile
- Detailed mounting dimensions for checking cabinet fit
