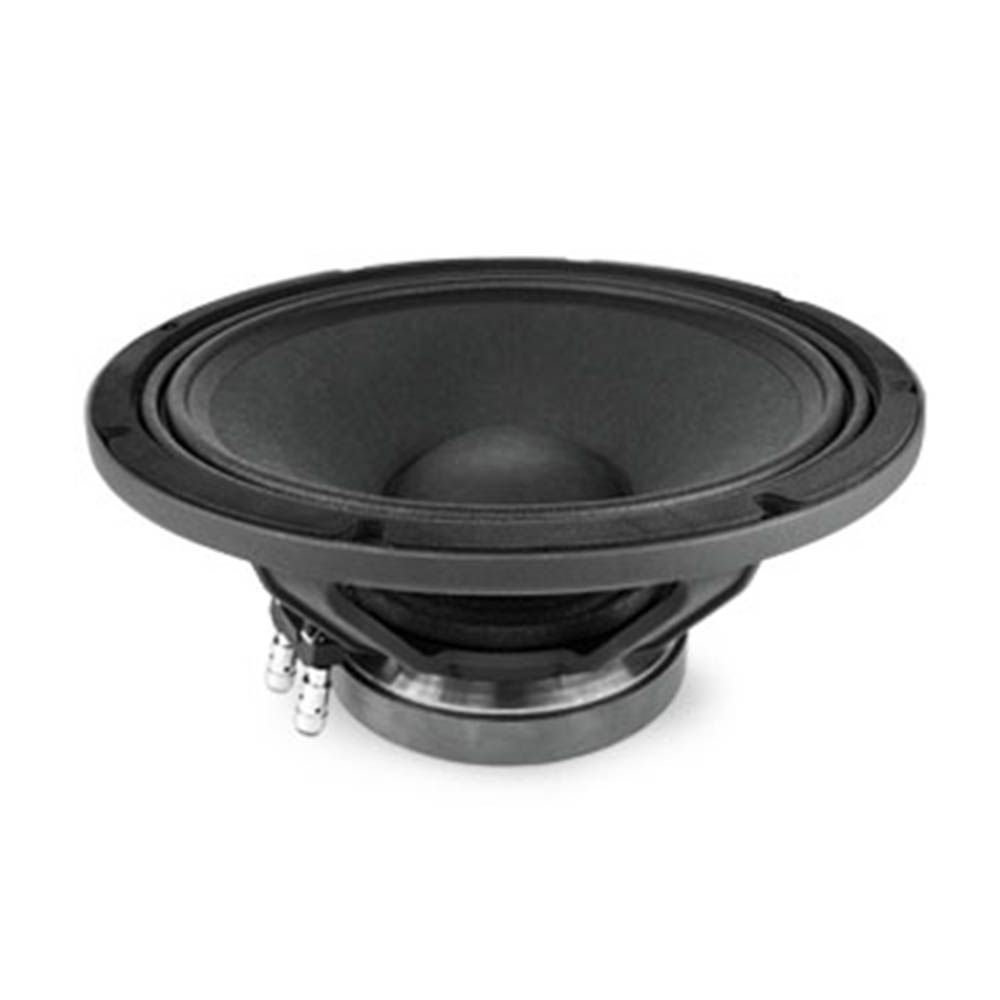

Faital Pro 12PR330 (8Ω) 12-Inch Loudspeaker Driver
The Faital Pro 12PR330 8Ω is a 12-inch loudspeaker driver. It is built around high sensitivity, substantial AES power handling and an 8 Ohm nominal impedance. Ferrite ring magnet, M-Roll cone surround and Thiele-Small data to give enclosure builders what they need.
High Sensitivity and Rated Power
With 98 dB sensitivity and 300 W AES power handling, this driver is suited to designs where efficient acoustic output and power capacity both matter. The 50÷4000 Hz frequency range defines its stated operating span. Therefore, giving builders clear boundaries when planning the wider loudspeaker system.
Dimensions for Enclosure Planning
Moreover, the 300 mm nominal diameter fits a 282 mm baffle cutout, while the 298.5 mm bolt circle diameter defines the mounting-point layout. At 135 mm deep, with a 12 mm flange and gasket thickness, the physical dimensions provide the measurements needed to check cabinet fit before installation.
Driver Construction
A ferrite ring magnet and M-Roll cone surround form the specified construction, while the 8 Ohm nominal impedance identifies the electrical load for amplifier matching. The minimum impedance is 6.6 Ohm, and the 4.3 kg net weight is useful to consider when planning the finished enclosure.
Thiele-Small Data for Design Work
The supplied parameters include Fs, Qes, Qms, Qts, Vas, Sd, Xmax and Xdamage, alongside moving-mass, compliance and motor figures. This gives enclosure builders specific reference data for modelling the driver and assessing how it fits their intended cabinet design.
Key Features
- High 98 dB sensitivity with 300 W AES power handling
- 12-inch format with defined cutout, bolt-circle and depth measurements
- 8 Ohm nominal impedance with 6.6 Ohm minimum impedance
- Ferrite ring magnet and M-Roll cone surround
- Published Thiele-Small parameters for enclosure modelling
