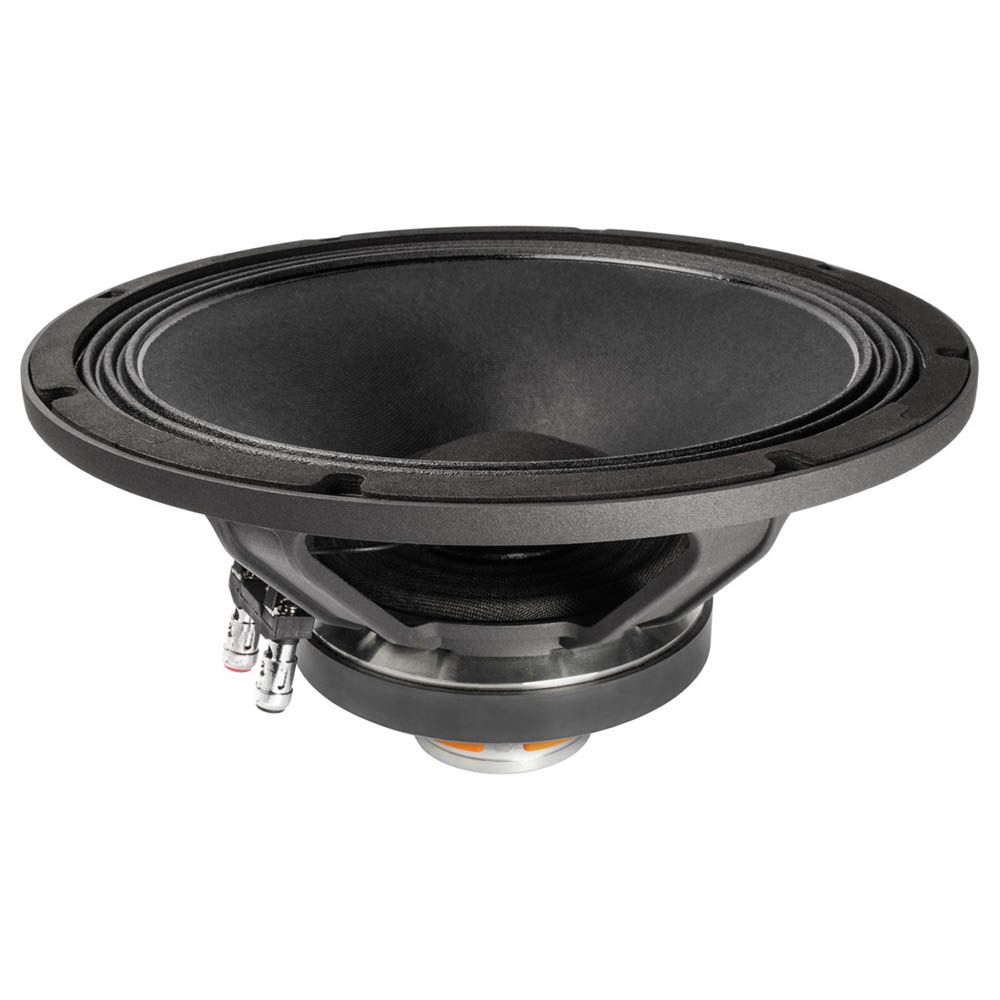

Faital Pro 12HX230 8 Ohm 12 Inch Ferrite Speaker

$719
SKU: FA-12HX230-8 Category:

Experience superb clarity and reliability with the Faital Pro 12HX230 8 Ohm 12 Inch Ferrite Speaker. Handles up to 250 W AES on low frequencies and 30 W AES on high frequencies.

PID: 7190

Out of stock

Order Online for Delivery
or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)
Out of stock
Web
Online Out of stock
Updating stores stocks...
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

Faital Pro 12HX230 8 Ohm 12 Inch Ferrite Speaker

Unlock exceptional audio clarity and performance with the Faital Pro 12HX230 8 Ohm 12 Inch Ferrite Speaker. Designed for professionals who demand precise sound reproduction, this coaxial driver excels in delivering balanced and natural sound.

Powerful and Precise Audio Performance

Firstly, this speaker combines a robust low-frequency woofer and a high-frequency compression driver into a single unit. The 65 mm voice coil on the woofer and the 1.4″ exit high-frequency driver ensure strong motor force and smooth frequencies. It handles up to 250 W AES on low frequencies and 30 W AES on high frequencies. Consequently, allowing for dynamic and impactful sound in a lightweight package.

Engineered for Versatility and Durability

Furthermore, this speaker maintains excellent performance while keeping weight to just 5.2 kg. This is thanks to the ferrite ring magnet for the low-frequency section and a neodymium ring magnet for the high-frequency section. Also, the aluminium basket and triple roll cone surround ensure durability and consistent sound quality.

Perfect Fit for Professional Audio Applications

Additionally, ideal for compact stage monitors, portable PA systems, and installed sound setups, this coaxial speaker delivers focused directivity with a 100° dispersion angle. Lastly, whether used as side fills, front fills, or in small column systems, it delivers clear, natural sound that fills the space without distortion.

Key Features

  • Compact professional stage monitors and floor wedges
  • Portable full-range PA loudspeakers
  • Side fills, front fills, and small column systems
  • Installed sound systems (ceiling or wall mount)
  • High-quality compact monitor cabinets
  • Compact professional stage monitors and floor wedges
  • Portable full-range PA loudspeakers
  • Side fills, front fills, and small column systems
  • Installed sound systems (ceiling or wall mount)
  • High-quality compact monitor cabinets

Nom. Diameter: 300 mm (12 in)
Overall Diameter: 316 mm (12.44 in)
Bolt Circle Diameter: 298.5 mm (11.75 in)
Baffle Cutout Diameter: 282 mm (11.10 in)
Depth: 162 mm (6.38 in)
Flange and Gasket Thickness: 12 mm (0.47 in)
Net Weight: 5.2 kg (11.5 lb)
Nom. Impedance LF: 8 Ohm
Nom. Impedance HF: 8 Ohm
Minimum Impedance LF: 6.4 Ohm
Minimum Impedance HF: 7 Ohm
AES Power Handling LF: 250 W
AES Power Handling HF: 30 W
Max Power Handling LF: 500 W
Max Power Handling HF: 60 W
Sensitivity LF: 97 dB
Sensitivity HF: 107 dB
Frequency Range LF: 55÷5000 Hz
Frequency Range HF: 1500÷20000 Hz
Voice Coil Diameter LF: 65 mm (2.56 in)
Voice Coil Diameter HF: 37 mm (1.46 in)
Winding Material LF: Al
Winding Material HF: Al
Former Material LF: Glass Fiber
Former Material HF: Kapton
Winding Depth LF: 17.4 mm (0.69 in)
Winding Depth HF: 2.1 mm (0.08 in)
Magnetic Gap Depth LF: 8 mm (0.31 in)
Magnetic Gap Depth HF: 2.6 mm (0.10 in)
Flux Density LF: 1.15 T
Flux Density HF: 1.85 T
Min. Cross. Freq.: 1.7 kHz
Dispersion Angle: 100°
Diaphragm Material: Ketone Polymer
Magnet LF: Ferrite Ring
Magnet HF: Neodymium Ring
Basket Material: Aluminum
Demodulation: Aluminum Ring
Cone Surround: Triple Roll
NET Air Volume filled by Loudspeaker: 2.15 dm^3 (0.076 ft^3)
Spider Profile: 1x variable height waves

For more information, please visit the manufacturer's website.
