Faital Pro 10PR310 (16Ω) Low Frequency Loudspeaker

$319
SKU: FA-10PR310-1216 Category:

Experience robust, clear, and powerful sound with the Faital Pro 10PR310 (16Ω) Low Frequency Loudspeaker. Designed to deliver exceptional 300W AES power handling and 97 dB sensitivity for superior audio performance.

Out of stock

Order Online for Delivery
or visit any of our 7 showrooms to purchase your items.
(Stock availabilities below)
Out of stock
Web
Online Out of stock
Updating stores stocks...
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

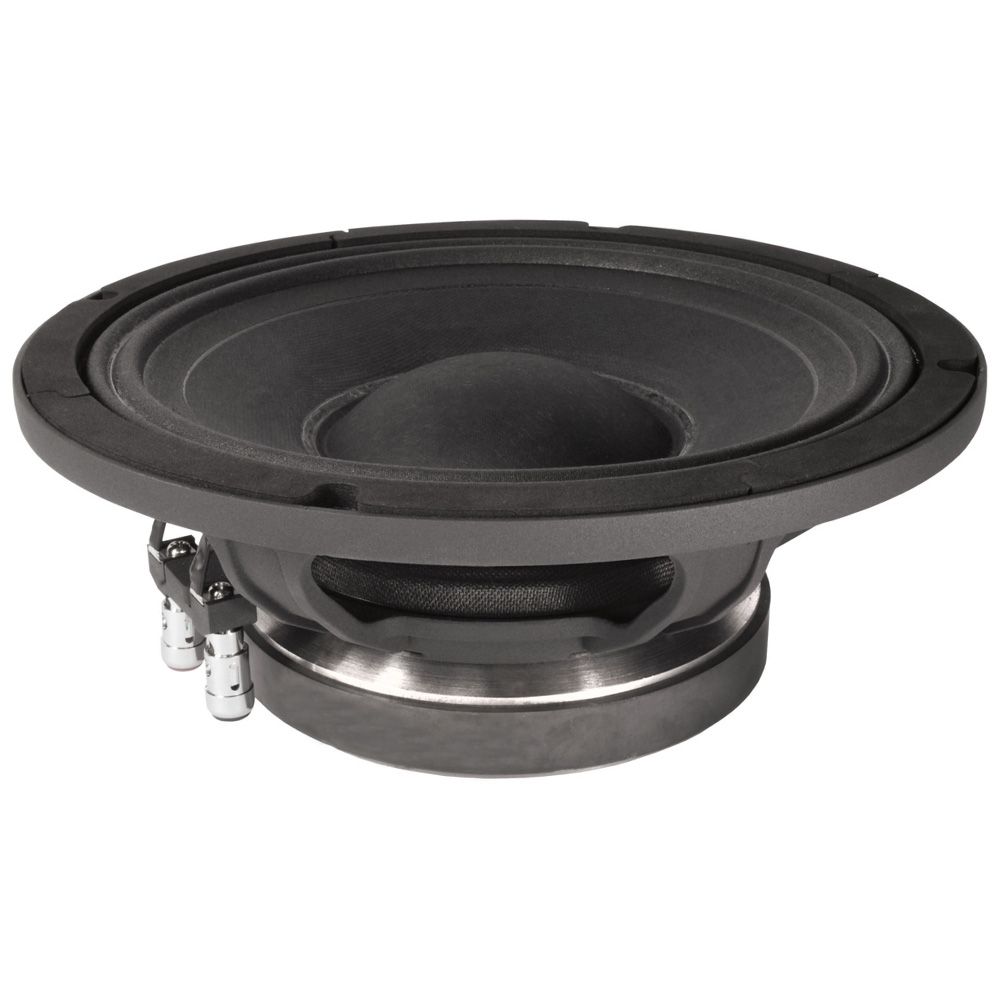

Faital Pro 10PR310 (16Ω) Low Frequency Loudspeaker

Unlock powerful, clear low-frequency sound that elevates your audio experience with the Faital Pro 10PR310 (16Ω) Low Frequency Loudspeaker. Designed to deliver robust 300W AES power and an impressive 97 dB sensitivity, this speaker brings your music and sound to life with precision.

Precision in Design for Superior Sound

The 10PR310 features a 250 mm (10 in) nominal diameter with a solid aluminum basket and a ferrite ring magnet. Consequently, giving it not only durability but also an efficient magnetic flux density of 1.2 T. Its M-Roll cone surround and 65 mm aluminum voice coil wound on a glass fiber former ensure excellent sound clarity and longevity.

Built to Handle Power and Performance

With a nominal impedance of 16 Ohm and a power handling capability of up to 300 W AES (600 W max), the Faital Pro 10PR310 can handle demanding audio environments without distortion. The frequency range of 60 to 4000 Hz covers a wide spectrum, making it versatile for various sound applications.

Installation Made Easy

The optimally sized design fits a 230 mm (9.06 in) baffle cutout with depth of 109 mm (4.29 in), making installation straightforward. Its lightweight 4.1 kg (9 lb) body and compact dimensions also contribute to hassle-free setup.

Key Features

  • 300 W AES power handling with 600 W max
  • High sensitivity of 97 dB for clear, loud audio
  • Durable ferrite ring magnet and aluminum basket
  • Wide frequency range from 60 Hz to 4000 Hz
  • M-Roll cone surround for sound precision
  • Nominal Diameter: 250 mm (10 in)
  • Overall Diameter: 261 mm (10.28 in)
  • Bolt Circle Diameter: 246 mm (9.69 in)
  • Baffle Cutout Diameter: 230 mm (9.06 in)
  • Depth: 109 mm (4.29 in)
  • Nominal Impedance: 16 Ohm
  • AES Power Handling: 300 W
  • Sensitivity (1W/1m): 97 dB
  • Frequency Range: 60÷4000 Hz
  • Magnet: Ferrite Ring
  • Cone Surround: M-Roll

Nominal Diameter: 250 mm (10 in)
Overall Diameter: 261 mm (10.28 in)
Bolt Circle Diameter: 246 mm (9.69 in)
Baffle Cutout Diameter: 230 mm (9.06 in)
Depth: 109 mm (4.29 in)
Flange and Gasket Thickness: 12 mm (0.47 in)
Net Weight: 4.1 kg (9.0 lb)
Nominal Impedance: 16 Ohm
Minimum Impedance: 13.6 Ohm
AES Power Handling: 300 W
Maximum Power Handling: 600 W
Sensitivity (1W/1m): 97 dB
Frequency Range: 60÷4000 Hz
Voice Coil Diameter: 65 mm (2.56 in)
Winding Material: Al
Former Material: Glass Fiber
Winding Depth: 12.5 mm (0.49 in)
Magnetic Gap Depth: 8 mm (0.31 in)
Flux Density: 1.2 T
Magnet: Ferrite Ring
Basket Material: Aluminum
Demodulation: No
Cone Surround: M-Roll
NET Air Volume filled by Loudspeaker: 1.3 dm^3 (0.046 ft^3)
Spider Profile: 1x variable height waves
Fs: 65 Hz
Re: 12.1 Ohm
Qes: 0.52
Qms: 5.3
Qts: 0.47
Vas: 29.0 dm^3 (1.02 ft^3)
Sd: 348 cm^2 (53.94 in^2)
Xmax: 4.92 mm
Xdamage: 15.25 mm
Mms: 35 g
Bl: 18.7 N/A
Le: 1.22 mH
Mmd: 27.7 g
Cms: 0.17 mm/N
Rms: 2.7 kg/s
Eta Zero: 1.56 %
EBP: 125 Hz

For more information, please visit the manufacturer's website.
