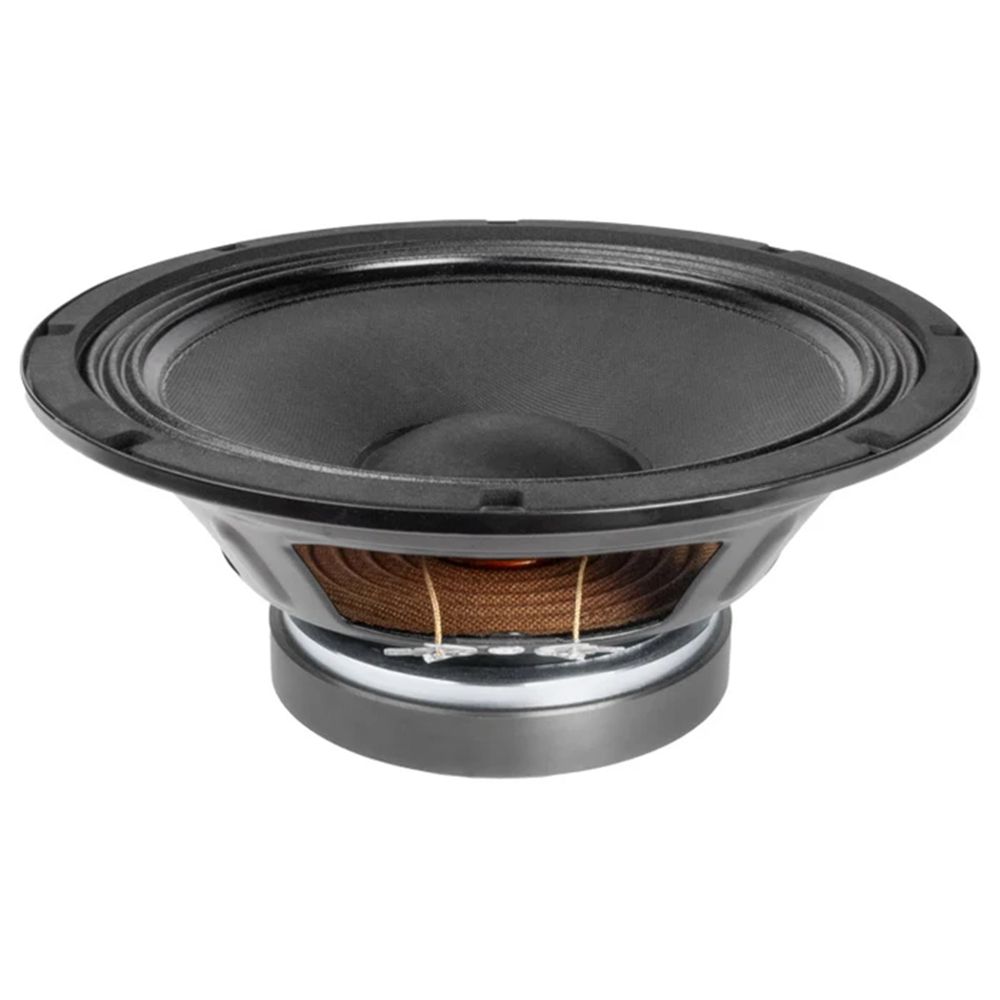

Faital Pro 10FE400 Ferrite Speaker (10-Inch, 4 Ohm)
The Faital Pro 10FE400 is a practical 10-inch ferrite speaker for builders who need clearly defined dimensions. Also, dependable electrical parameters when planning a cabinet. Its 4 Ohm nominal impedance, 95 dB sensitivity and 200 W AES power handling give system designers useful figures to work from.
Clear Physical References
With a 250 mm nominal diameter, 260 mm overall diameter and 233 mm baffle cutout diameter, the 10FE400 makes installation planning straightforward. Its 111 mm depth and 246 mm bolt circle diameter provide further reference points. Meanwhile, the 2.95 kg net weight keeps the finished component manageable during fitting.
Balanced Electrical Parameters
The 4 Ohm nominal impedance drops to a 3.7 Ohm minimum impedance, giving amplifier and enclosure planning precise electrical information. AES power handling is rated at 200 W, with 400 W maximum power handling. The 60÷4500 Hz frequency range defines the bandwidth covered by this speaker.
Durable, Practical Construction
A Ferrite Ring magnet, steel basket and 44 mm voice coil form the core construction. The Cu winding uses an Al former, while the 13.9 mm winding depth and 8 mm magnetic gap depth document the assembly. A Triple Roll cone surround and 1x constant height waves spider profile complete the design.
Parameters for Cabinet Planning
The supplied Thiele and small parameters give speaker builders detailed information for enclosure work. Fs is 60 Hz, Qts is 0.41 and Vas is 33.6 dm^3 (1.19 ft^3), with Sd measuring 362 cm^2 (56.11 in^2). Xmax is 5.62 mm, alongside 14.9 mm Xdamage.
Key Features
- 10-inch format with clearly specified mounting dimensions
- 95 dB sensitivity for efficient speaker-system design
- 200 W AES and 400 W maximum power handling
- Ferrite Ring magnet with steel basket construction
- Thiele and small parameters for enclosure planning
