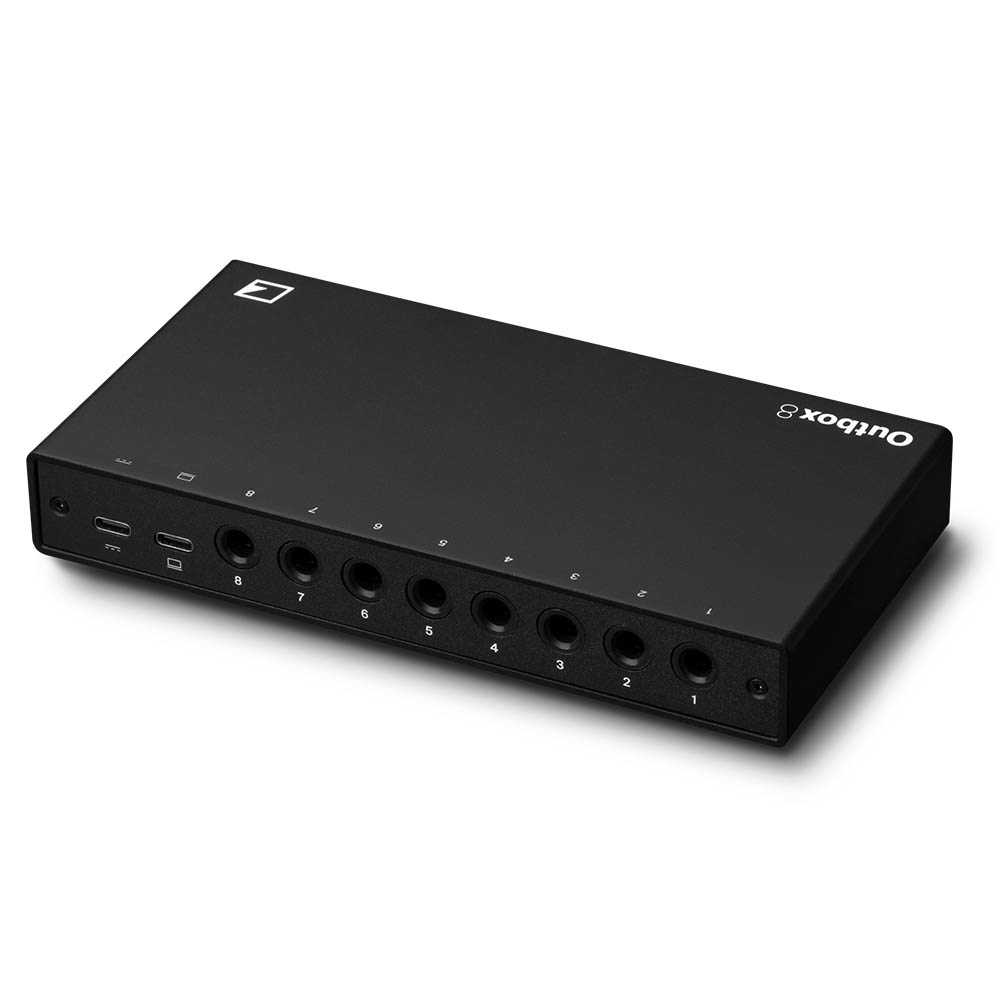

Elektron Outbox 8 Audio/CV Breakout Box & USB Audio Interface (8-Channel)
Elektron Outbox 8 expands a compatible setup with eight configurable physical outputs for audio and CV. Route tracks or submixes to external gear, control modular equipment from MIDI, or send DAW channels to mixers and effects. Its USB connectivity also lets it work as an eight-output audio interface.
Shape Your Audio Routing
Send individual tracks or submixes from a compatible Elektron machine to external processing, mixing or performance equipment. The eight 1/4” impedance-balanced DC-coupled outputs keep routing open to both audio and CV duties, so each channel can be assigned according to the needs of your setup.
Bring MIDI and Modular Gear Together
Assign outputs to pitch, gate, trig, value lin or clock signals, then connect them to modular and other CV-controllable instruments. As a dedicated USB MIDI-to-CV interface, Outbox 8 lets an Elektron box or MIDI controller play, sequence, modulate and synchronise compatible CV equipment.
Eight Outputs From Your Computer
Connect the unit to a computer, tablet or phone and use it as an eight-output USB audio interface. Route DAW channels to mixers, effects, monitors or other external hardware, while MIDI-to-CV conversion can place CV control alongside your computer-based audio workflow.
Compact Connectivity for Flexible Setups
The USB 2.0 High-Speed Type-C data port supports USB Power Delivery, dual-role data and dual-role power, while a separate USB Type-C power input handles its power connection. Measuring 176 × 90 × 28 mm including feet and weighing approximately 0.35 kg, it fits neatly into a desktop rig.
Key Features
- Eight configurable outputs for audio and CV routing
- DC-coupled 1/4” outputs for audio and CV duties
- CV options including pitch, gate, trig, value line and clock
- USB MIDI-to-CV operation for compatible modular equipment
- Eight-output USB audio interface functionality
