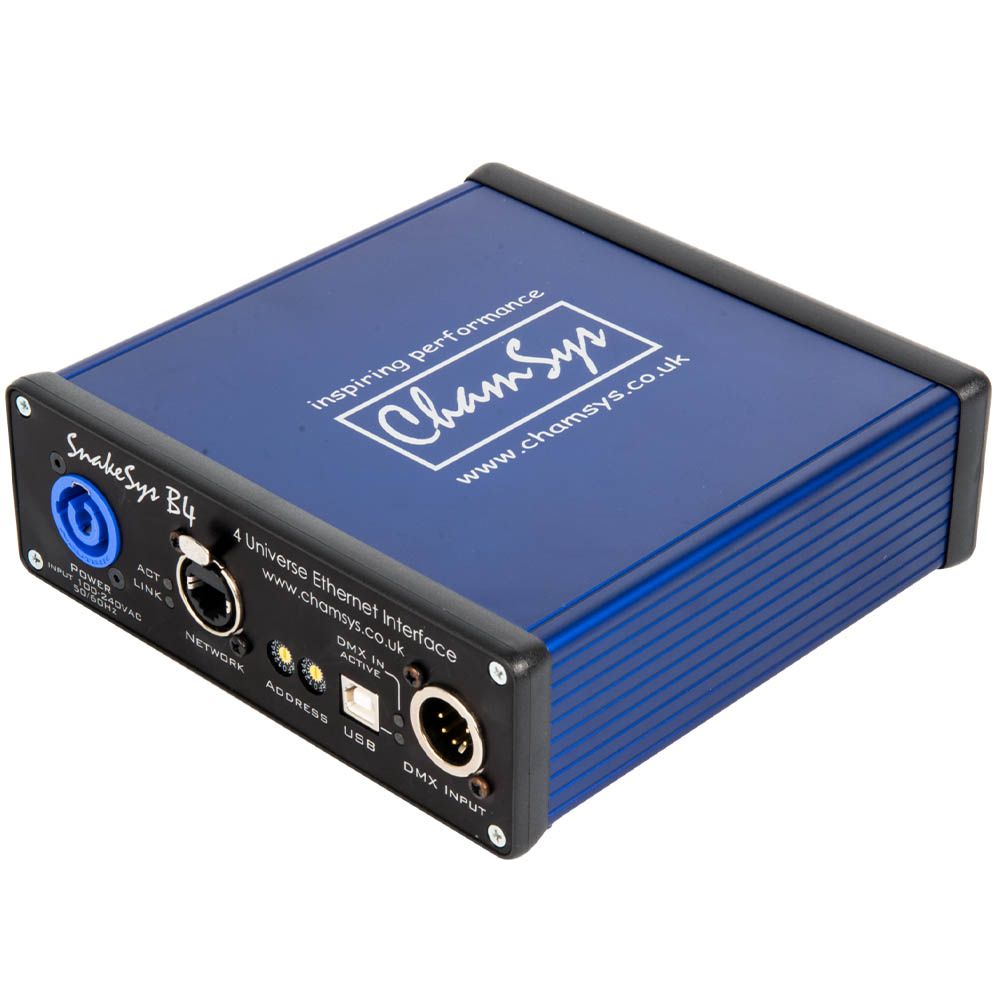

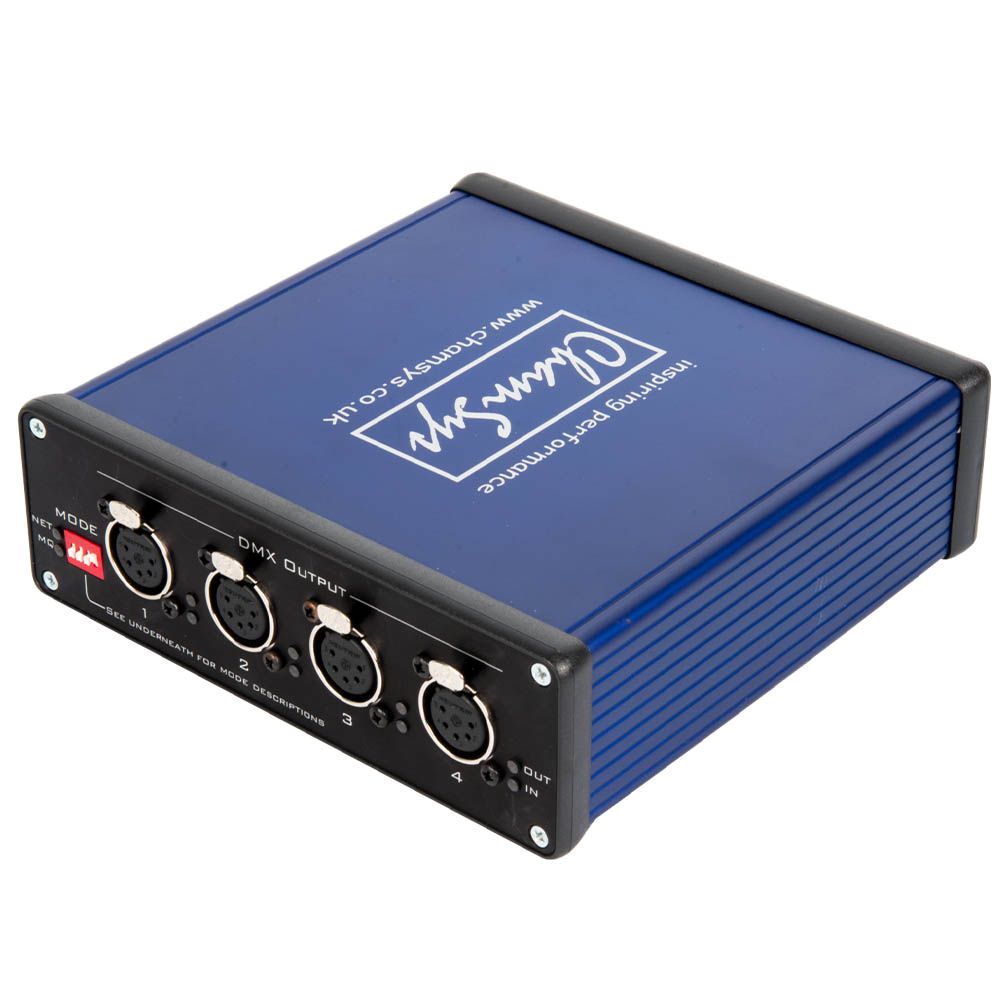

Chamsys SnakeSys B4 Four Universe Ethernet to DMX512 Box
The Chamsys SnakeSys B4 Four Universe Ethernet To DMX512 Box is built for clean, flexible DMX control over network. With Art-Net and ACN Streaming DMX support, plus four DMX512 ports and a dedicated input, it gives lighting users a straightforward way to bridge ethernet and dmx512 in a compact box.
Flexible four universe control
The SnakeSys B4 gives you four DMX512 ports that can work as inputs or outputs, so it can fit different show setups without extra gear. It also includes one dedicated DMX512 input port. That makes it a practical choice when you need a simple way to manage multiple universes from a single unit.
Chamsys SnakeSys B4 and network-ready DMX
Supporting Art-Net and ACN Streaming DMX, the SnakeSys B4 works with any Art-Net or ACN compliant console. It also offers ChamNet remote configuration, so setup can be handled in a way that suits the system. As a result, it suits users who want a networked DMX interface with flexible control options.
Useful standalone and status features
When you do not need network control, the SnakeSys B4 can run in stand-alone DMX buffer mode. It also includes isolated outputs, power over ethernet support, and status LEDs for power, network, protocol, and individual outputs. These details help with quick checking and reliable day-to-day use.
Built for secure connections
The SnakeSys B4 uses a locking Neutrik Ethercon network connector and a locking Neutrik Powercon power connector. That gives the unit a secure physical connection setup, while the compact size helps keep the system tidy. In addition, it runs from 90 to 250V AC and weighs 861g.
Key Features
- Universal Ethernet to DMX Interface

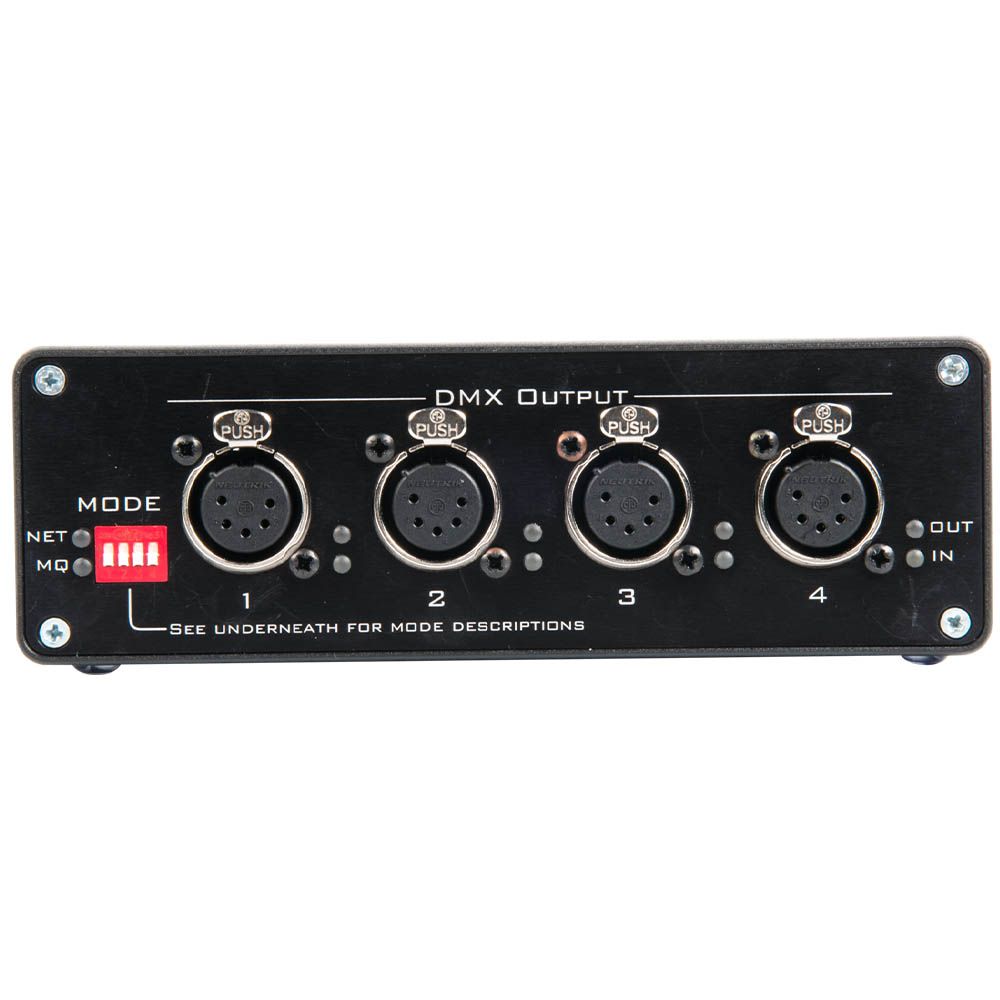

- Four DMX512 Ports (configurable as input or output)
- One dedicated DMX512 input port
- Art-Net and ACN Streaming DMX support
- ChamNet remote configuration
- Stand-alone DMX buffer mode
- Can be powered by Power over Ethernet
- Isolated outputs
- Power, Network and Protocol status LEDs
- Individual output status LEDs

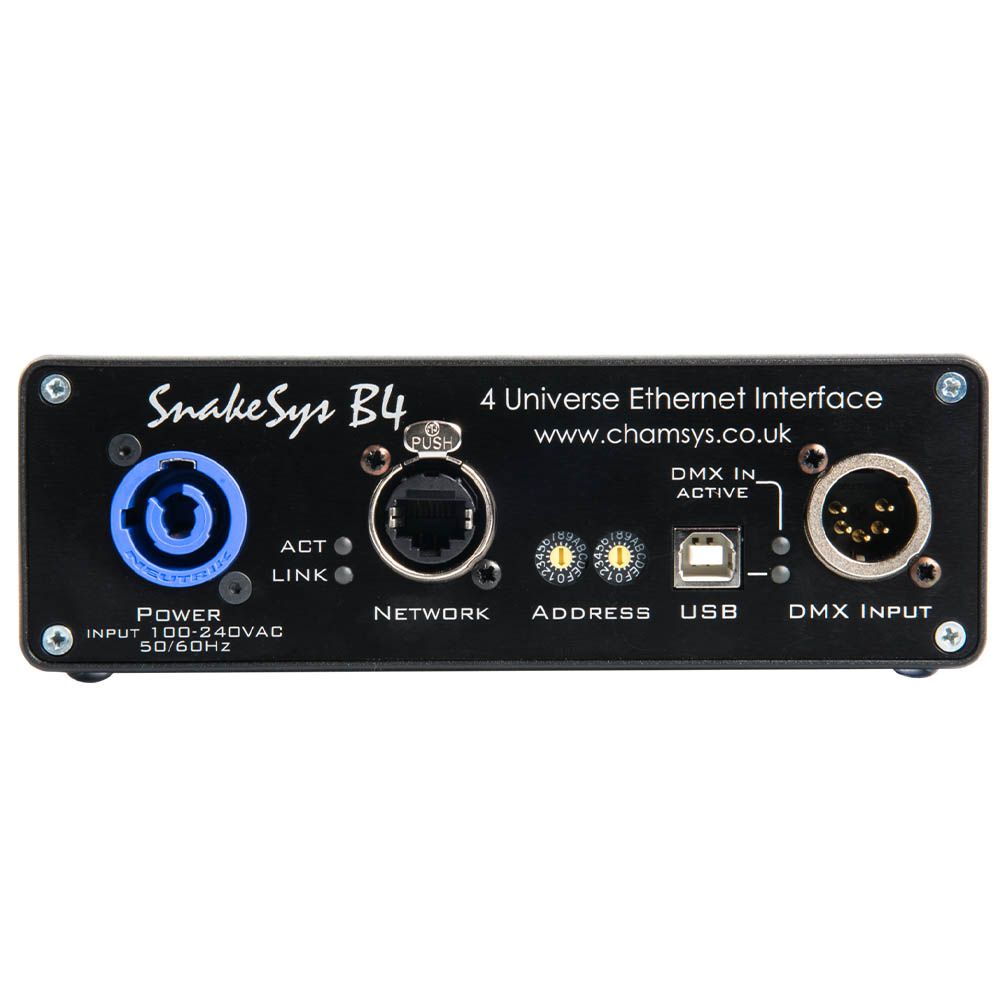

- Locking Neutrik Ethercon network connector
- Locking Neutrik Powercon power connector
