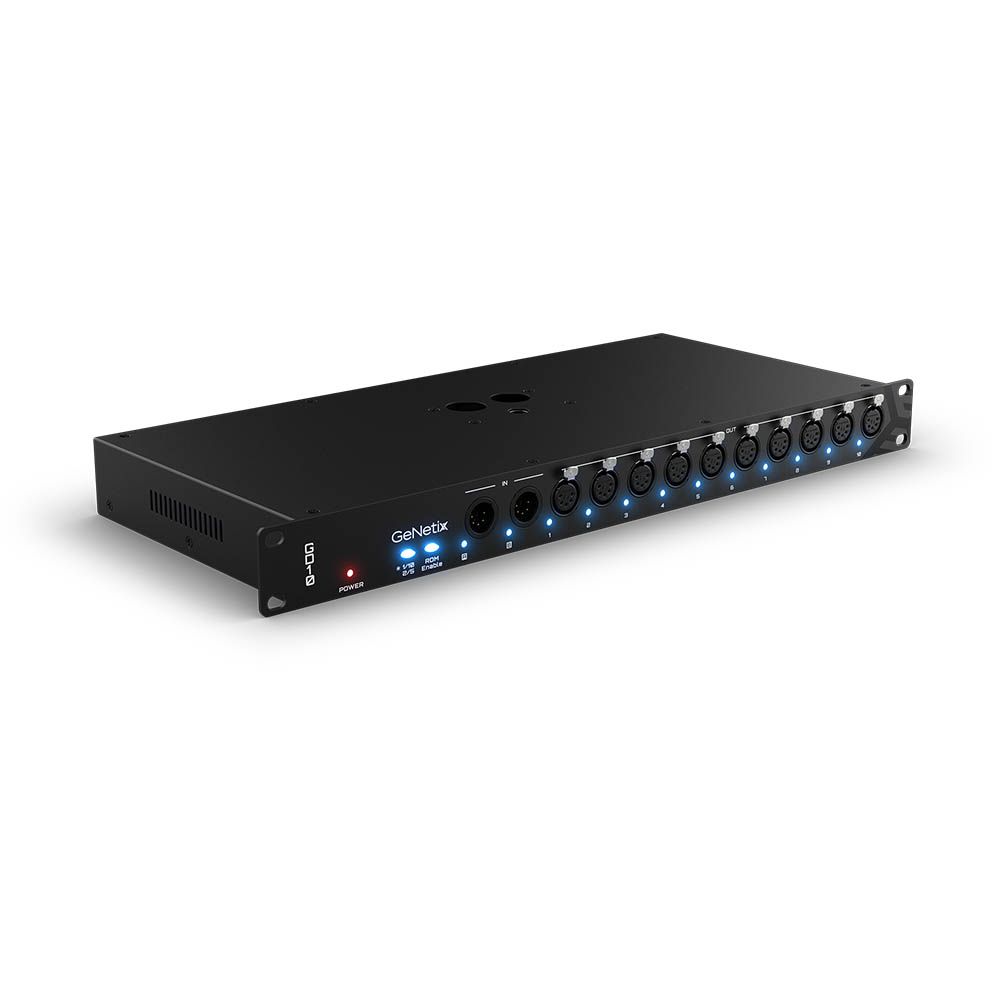

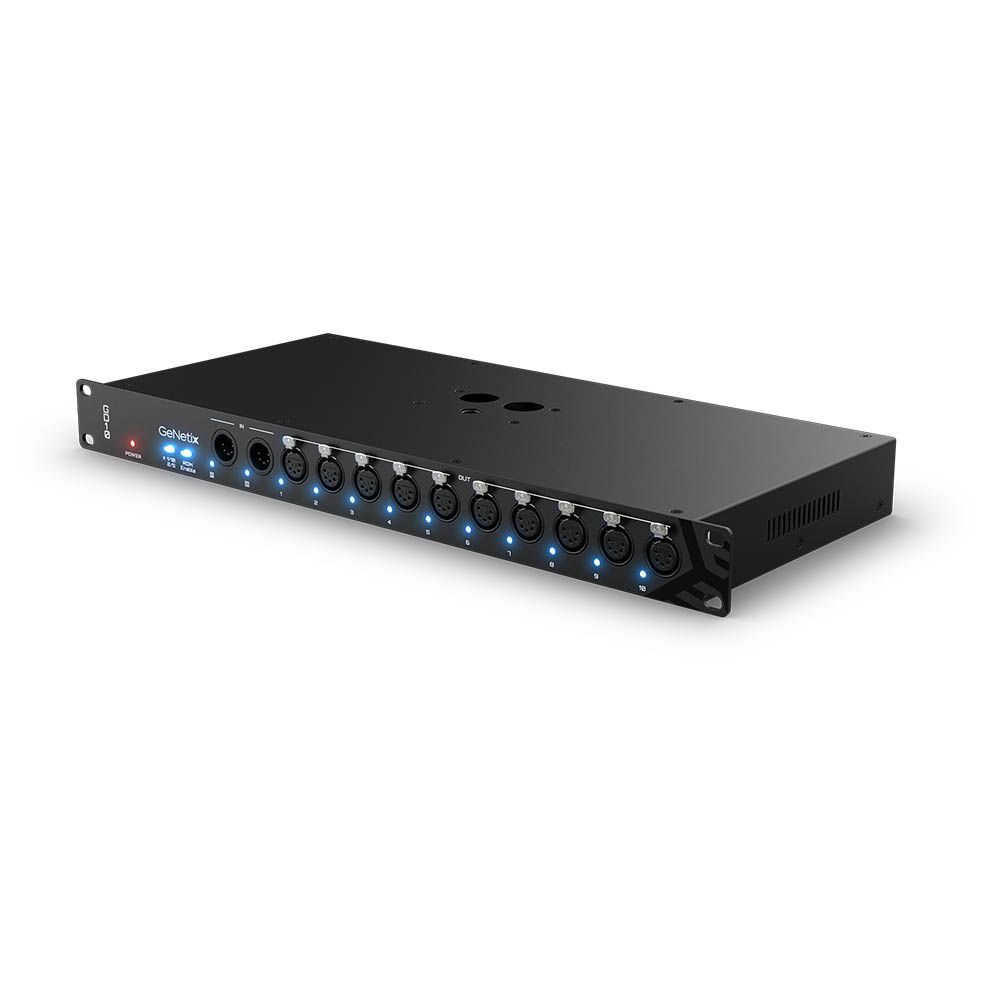

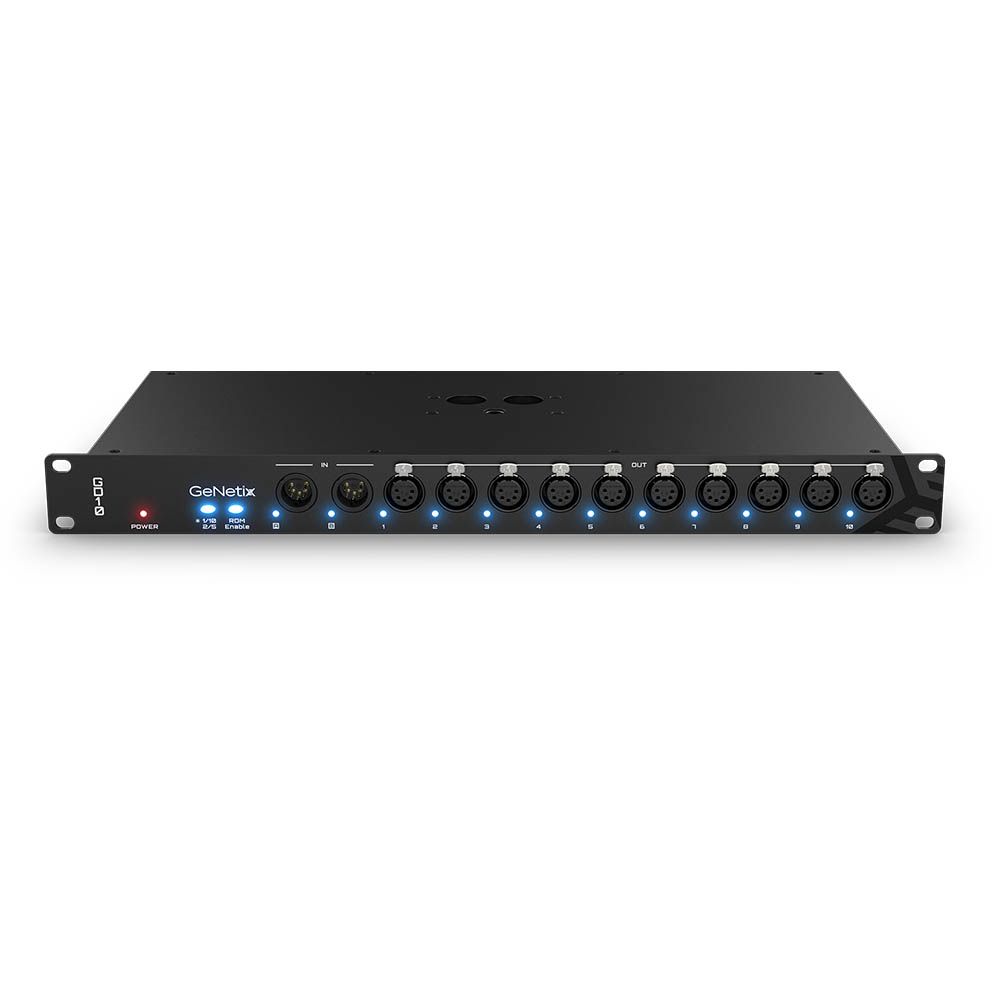

Chamsys GeNetix GD10 10-Port DMX Splitter
Built for organised DMX distribution, the Chamsys GeNetix GD10 combines ten 5-pin opto-isolated outputs with two DMX inputs in a compact rack format. Select 1 In to 10 Output or 2 In to 5 Output Mode to route signals neatly across installation or live-event lighting systems.
Flexible Signal Distribution
Choose between 1 In to 10 Output and 2 In to 5 Output Mode to match the demands of your lighting setup. With two 5 Pin DMX Input Ports and ten 5 Pin opto-isolated DMX Output Ports, the splitter keeps multiple DMX runs organised from a central point.
RDM Control When You Need It
Moreover, RDM E1.20 compliance supports RDM-capable DMX distribution. Meanwhile, the RDM Enable/Disable Option gives you control over whether RDM data is passed through. The source design also describes disabling RDM to strip that data and retime the DMX signal when required.
Ready for Rack Installations
Furthermore, at 19” 1U rack-mountable, the unit fits neatly into standard rack-based lighting systems without taking up unnecessary vertical space. Its 480mm width, 218mm depth and 44.4mm height make planning straightforward. Meanwhile, the M12 Clamp Fixing adds another mounting option.
Power for Working Setups

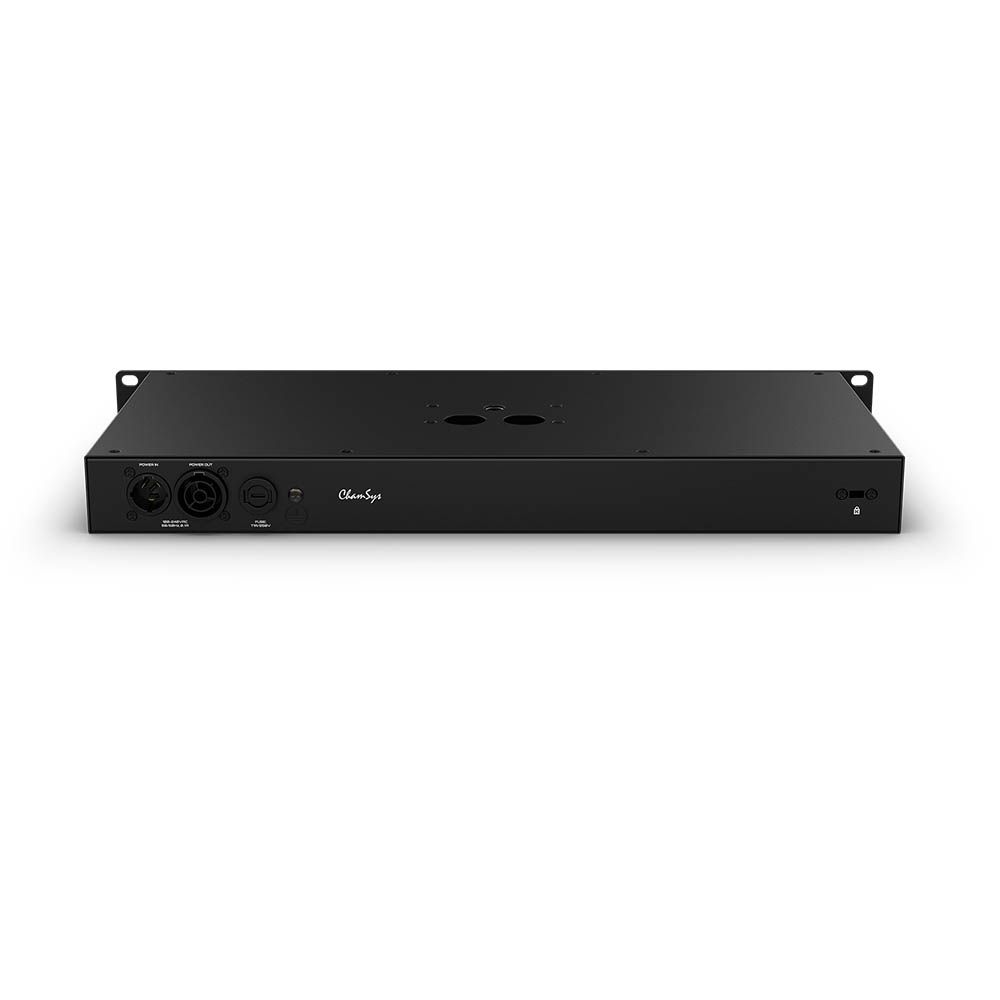

Additionally, a Neutrik powerCON TRUE1 110 to 240 VAC input supplies the unit, with a Neutrik powerCON TRUE1 Power Cable included. Ruggedly built construction and a maximum mains power consumption of 6.5 W suit the practical demands of permanent installations and live events.
Key Features
- Distributes DMX across up to ten opto-isolated outputs.
- Switches between 1 In to 10 Output and 2 In to 5 Output Mode.
- Offers RDM E1.20 compliance with an RDM Enable/Disable Option.
- Fits 19” 1U racks and includes M12 Clamp Fixing.
